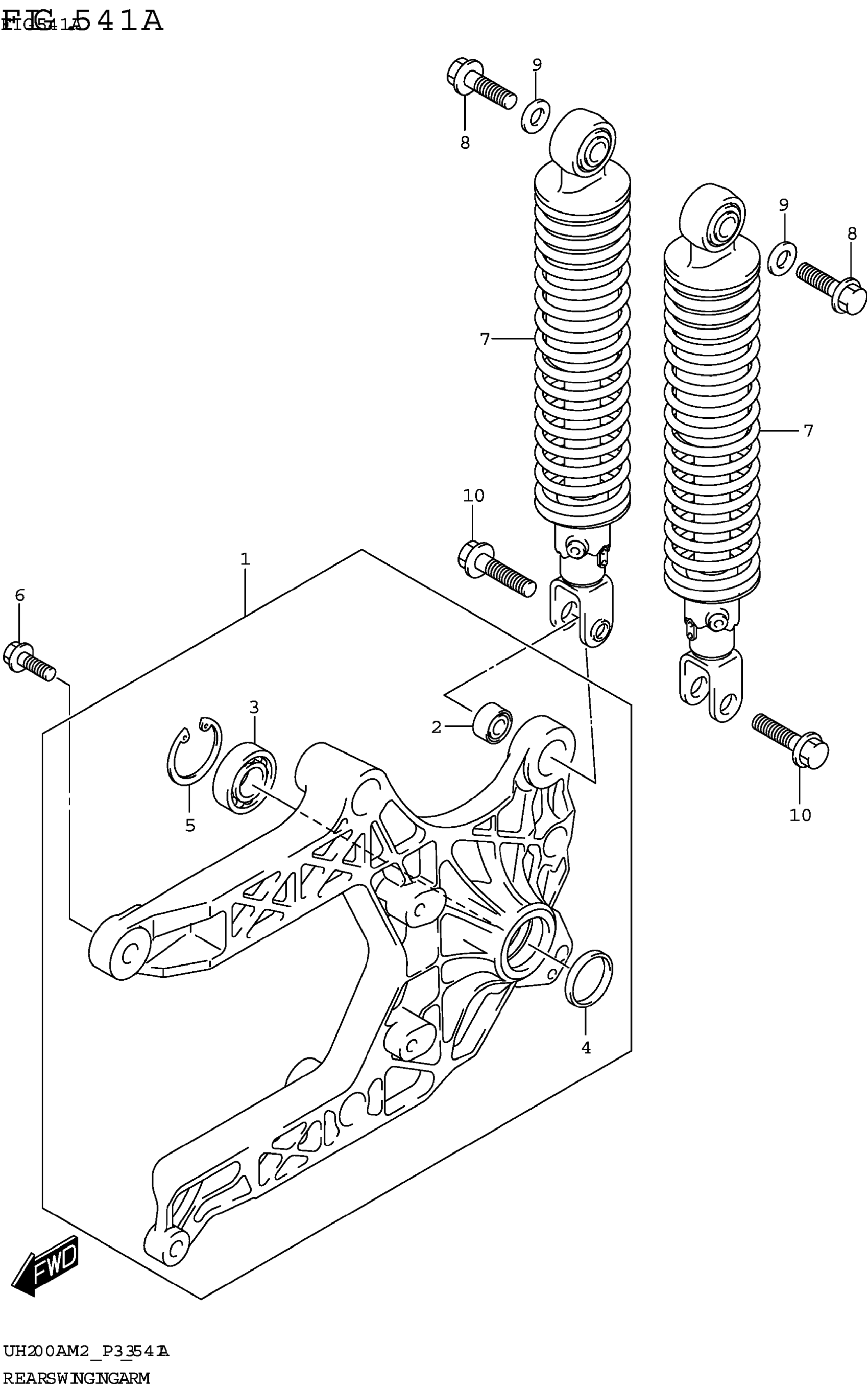

Suzuki UH200AM2 (2022) REAR SWINGINGARM Diagram

#

Description

Price

1

SWINGINGARM ASS This part replaces 61000-12J20-019.

61000-12J21-019

$116.23

2

.BUSH (10.2X22.3X20)

09319-10032

$9.27

3

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

4

.OIL SEAL (28X35X5)

09285-28L01

$6.57

5

CIRCLIP This part replaces 08331-41409.

08331-41406

$2.10

6

BOLT

01550-1030A

$3.55

7

ABSORBER ASSY,REAR SHOCK

62100-12J10

$166.75

8

BOLT (10X40)

09103-10055

$4.77

9

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10127.

09160-10093

$2.35

10

BOLT

01550-1030A

$3.55
