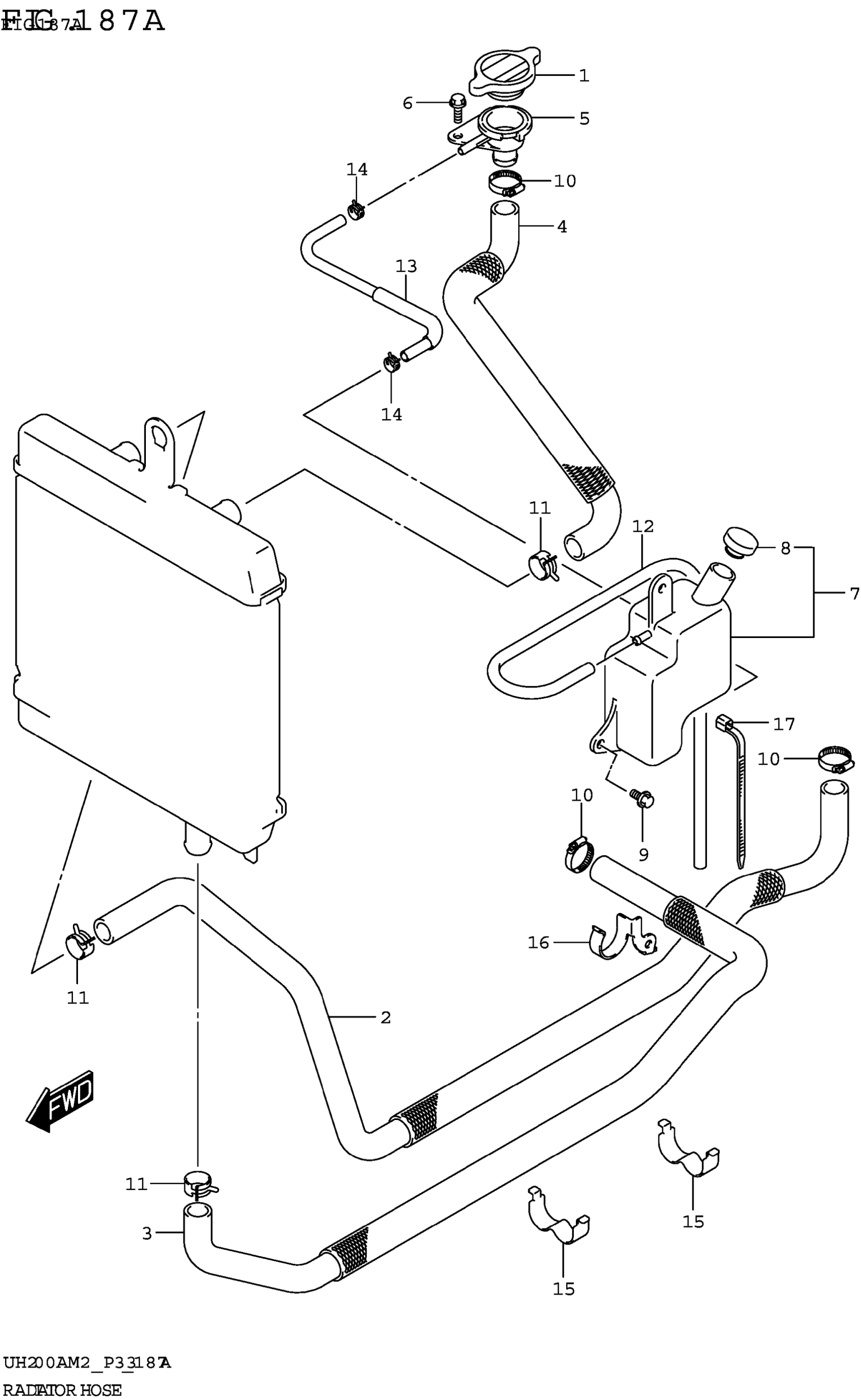

Suzuki UH200AM2 (2022) RADIATOR HOSE Diagram

#

Description
Price

1

CAP,RADIATOR (1.1)

17730-14G00

$42.83

2

HOSE,RADIATOR INLET

17851-03H20

Unavailable

3

HOSE,RADIATOR OUTLET

17852-03H20

Unavailable

4

HOSE,CONDUCTION

17855-03H20

Unavailable

5

CONDUCTION,RADIATOR

17791-12J00

$31.65

6

BOLT

01550-0616A

$1.97

7

TANK ASSY,RESERVOIR

17910-12J00

Unavailable

8

.CAP,RESERVOIR TANK

17932-12C00

$4.48

9

BOLT (6X12)

09103-06285

$1.97

10

CLAMP

09402-27001

Unavailable

11

CLIP

09401-21411

Unavailable

12

HOSE, RESERVOIR TANK OVERFLOW

17982-03H20

Unavailable

13

HOSE, RESERVOIR TANK INLET

17981-03H10

Unavailable

14

CLIP (ID:8.6)

09401-08411

$1.78

15

PLATE, WATER HOSE CLAMP

17859-03H00

Unavailable

16

CLAMP

17858-12J00

Unavailable

17

CLAMP (L:190)

09407-19401

$3.05
