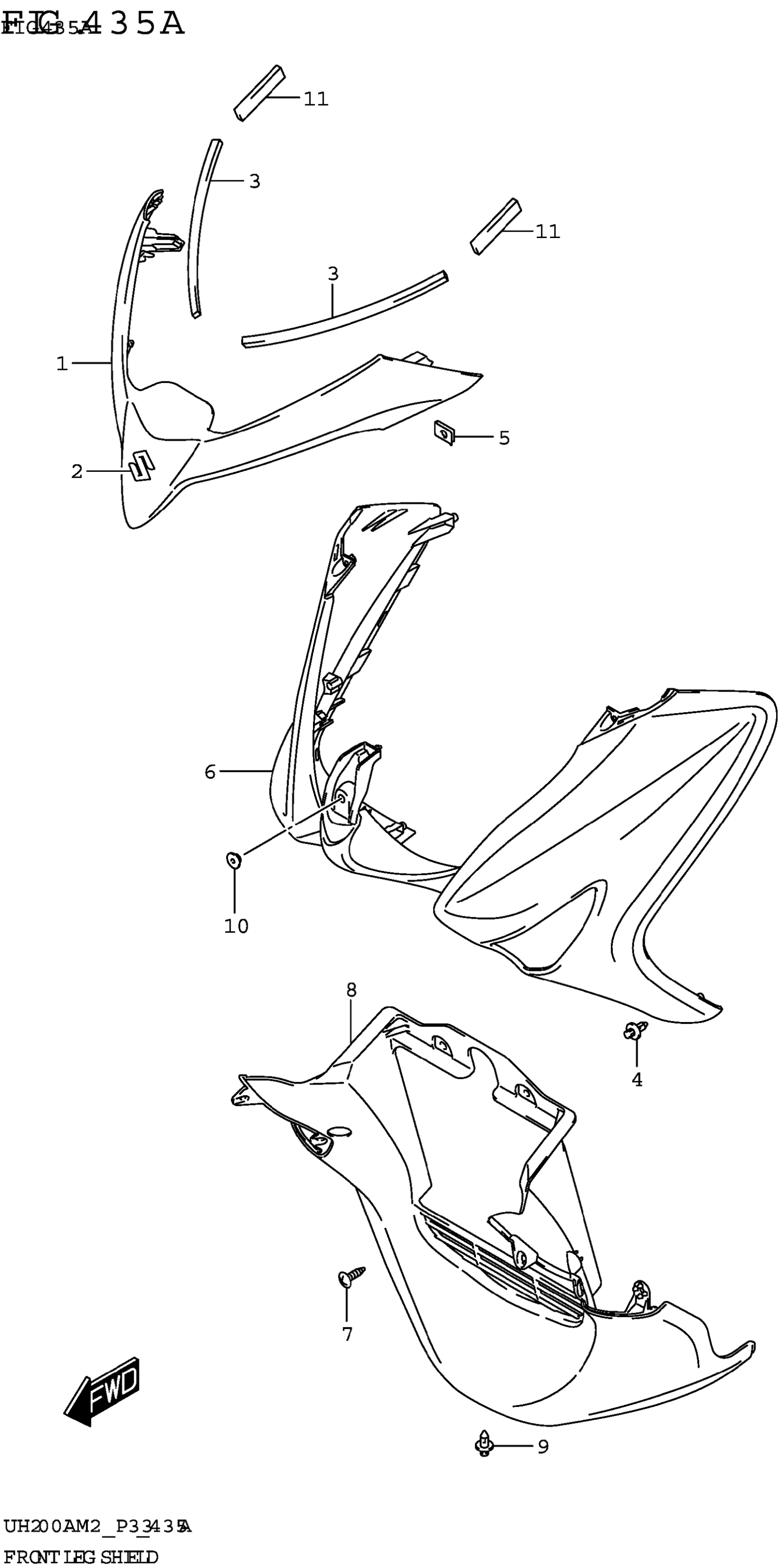

Suzuki UH200AM2 (2022) FRONT LEG SHIELD Diagram

#

Description
Price

1-1

COVER, FRONT (BLACK) | BODY COLOR:YNR

48131-12JB0-YNR

Unavailable

1-2

COVER,FRONT (BLUE) | BODY COLOR:YUA

48131-12JB0-YUA

$102.60

1-3

COVER, FRONT (WHITE) | BODY COLOR:YUH

48131-12JB0-YUH

$135.52

2

EMBLEM,S

68641-26J00

$27.17

3

CUSHION,FRONT COVER

48132-12JA0

$5.63

4

CLIP (7.6X25.7)

09409-08308

$2.26

5

NUT (M5)

09148-05038

$1.97

6-1

SHIELD,LEG FRONT (BLACK) | BODY COLOR:YNR

48111-12JB1-YNR

Unavailable

6-2

SHIELD,LEG FRONT (BLUE) | BODY COLOR:YUA

48111-12JB1-YUA

$254.13

6-3

SHIELD,LEG FRONT (WHITE) | BODY COLOR:YUH

48111-12JB1-YUH

$276.72

7

SCREW

03541-0516A

$1.49

8

SHIELD, LEG LOWER (BLACK)

48137-12JB0-291

$129.08

9

CLIP (7.6X25.7)

09409-08308

$2.26

10

CUSHION

09320-06026

$4.10

11

CUSHION (50X8X5)

47163-12JA0

$3.44
