2022 Suzuki UH200AM2 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2022 Suzuki UH200AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

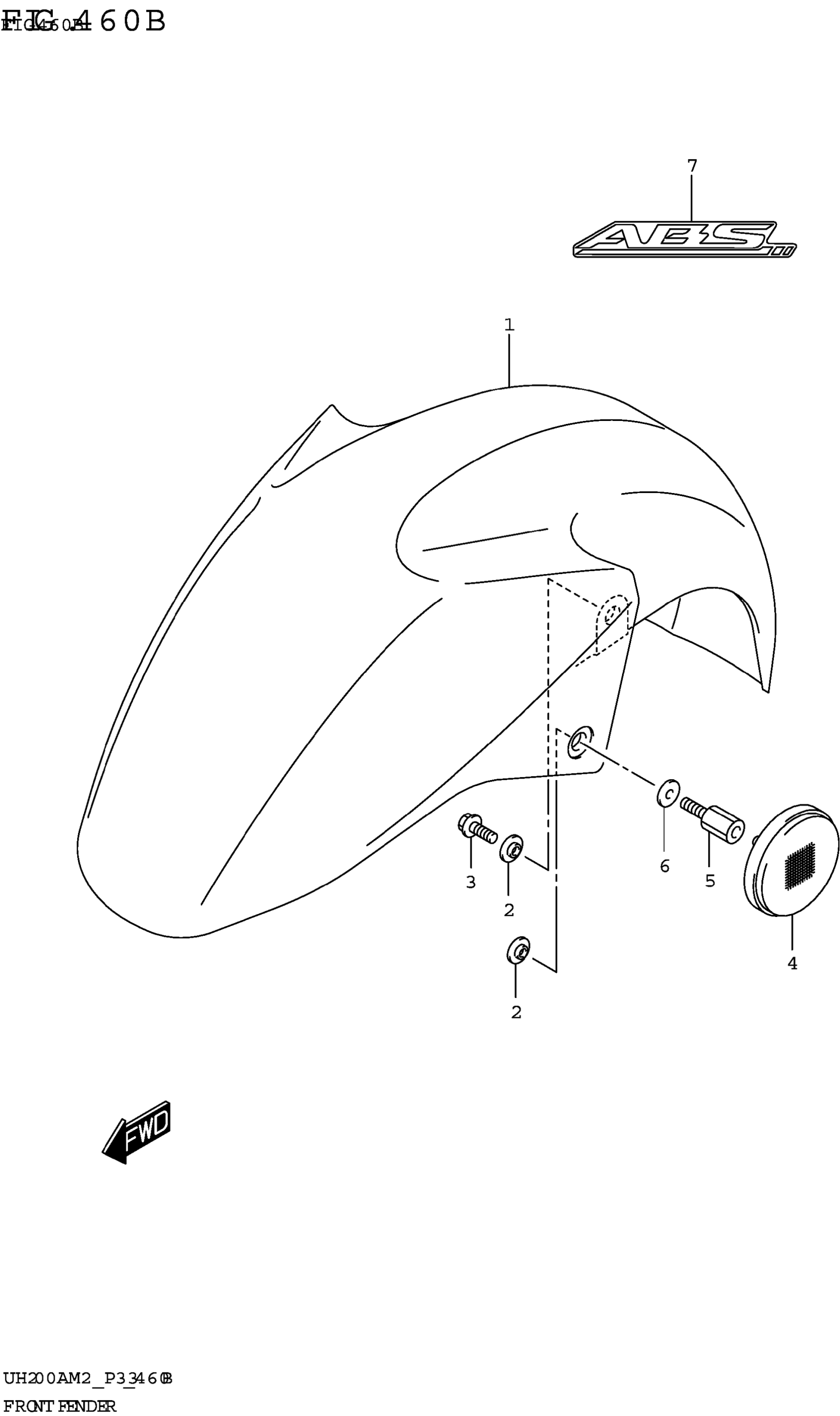

2022 Suzuki UH200AM2 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

FENDER,FRONT (BLACK) | BODY COLOR:YNR

53111-12JA0-YNR

1
Out of stock

1-2

FENDER,FRONT (BLUE) | BODY COLOR:YUA

53111-12JA0-YUA

1
Out of stock

1-3

FENDER,FRONT (WHITE) | BODY COLOR:YUH

53111-12JA0-YUH

1
Out of stock

2

WASHER This part replaces 09169-06045.

09169-06055

4
Out of stock

3

SCREW This part replaces 02162-0616A.

02162-0616B

2
Out of stock

4

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

2
Out of stock

5

BOLT (6X18)

09119-06119

2
Out of stock

6

WASHER (6.5X18X1.0)

09160-06028

2
Out of stock

7-1

EMBLEM,"ABS" (GRAY,BLACK) | BODY COLOR:YNR

68151-12JB0-AD2

1
Out of stock

7-2

EMBLEM,"ABS" | BODY COLOR:YUA

68151-12JB0-CAR

1
Out of stock

7-3

EMBLEM,"ABS" (GRAY/HITE) | BODY COLOR:YUH

68151-12JB0-BAV

—
Out of stock
