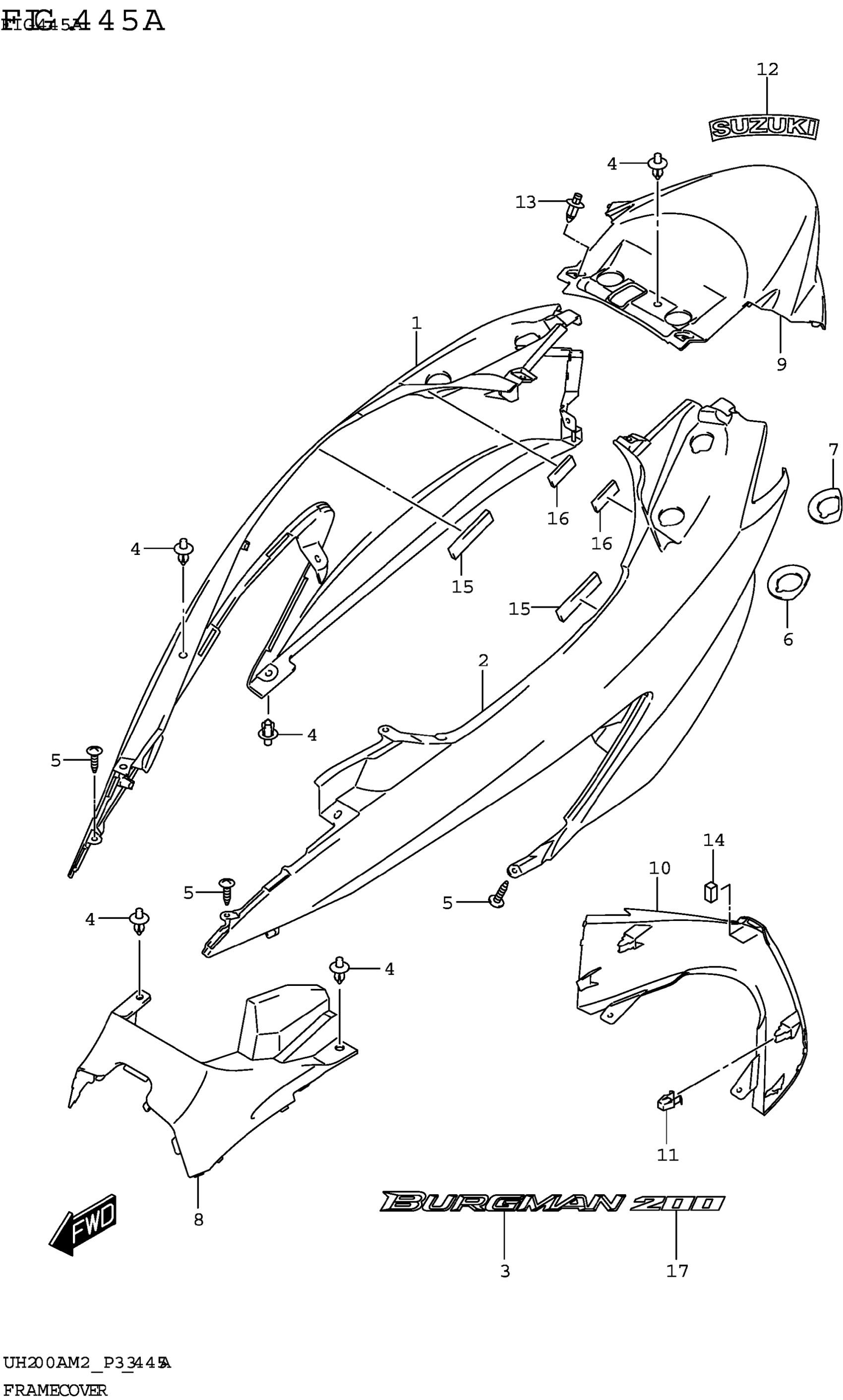

Suzuki UH200AM2 (2022) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK) | BODY COLOR:YNR

47111-12JA2-YNR

Unavailable

1-2

COVER,FRAME,R (BLUE) | BODY COLOR:YUA

47111-12JA2-YUA

$126.23

1-3

COVER, FRAME RH (WHITE) | BODY COLOR:YUH

47111-12JA2-YUH

$197.75

2-1

COVER, FRAME LH (BLACK) | BODY COLOR:YNR

47211-12JA2-YNR

Unavailable

2-2

COVER,FRAME,L (BLUE) | BODY COLOR:YUA

47211-12JA2-YUA

$108.90

2-3

COVER, FRAME LH (WHITE) | BODY COLOR:YUH

47211-12JA2-YUH

$120.45

3

EMBLEM,FRAME COVER

68131-12JA0

$44.02

4

CLIP (7.6X25.7)

09409-08308

$1.97

5

SCREW

03541-0516A

$1.37

6

CUSHION,FRAME COVER FR

47161-12JB0

$3.13

7

CUSHION,FRAME COVER RR

47162-12JB0

$3.13

8

COVER,FRAME FR (BLACK)

47351-12JA0-291

$53.93

9-1

COVER,FRAME CTR (BLACK) | BODY COLOR:YNR

47311-12JA0-YNR

Unavailable

9-2

COVER,FRAME CENTER (BLUE) | BODY COLOR:YUA

47311-12JA0-YUA

$56.85

9-3

COVER,FRAME CTR (WHITE) | BODY COLOR:YUH

47311-12JA0-YUH

$73.83

10-1

COVER,FRAME LWR (BLACK) | BODY COLOR:YNR

47411-12JA0-YNR

Unavailable

10-2

COVER,FRAME LOWER (BLUE) | BODY COLOR:YUA

47411-12JA0-YUA

$55.22

10-3

COVER,FRAME LWR (WHITE) | BODY COLOR:YUH

47411-12JA0-YUH

$84.27

11

CLIP (10.5X14.3)

09409-08326

$2.45

12-1

EMBLEM,"SUZUKI" (SILVER/BLACK | BODY COLOR:YNR

68131-03HB0-A13

Unavailable

12-2

EMBLEM,"SUZUKI" | BODY COLOR:YUA

68131-03HB0-CAQ

$14.71

12-3

EMBLEM,"SUZUKI" (GRAY/WHITE) | BODY COLOR:YUH

68131-03HB0-ALZ

$11.78

13

CLIP

09409-06329

$2.80

14

CUSHION,FR BOX NO.4

92152-12JA0

$5.28

15

CUSHION (50X8X5)

47163-12JA0

$3.24

16

CUSHION,FRAME COVER UPR NO.2

47164-12JA0

$3.80

17-1

EMBLEM,"200" (SILVER/BLACK) | BODY COLOR:YNR

68131-03H30-A13

Unavailable

17-2

EMBLEM,"200" | BODY COLOR:YUA

68131-03H30-CAQ

$11.17

17-3

EMBLEM,"200" (GRAY/WHITE) | BODY COLOR:YUH

68131-03H30-ALZ

$10.17
