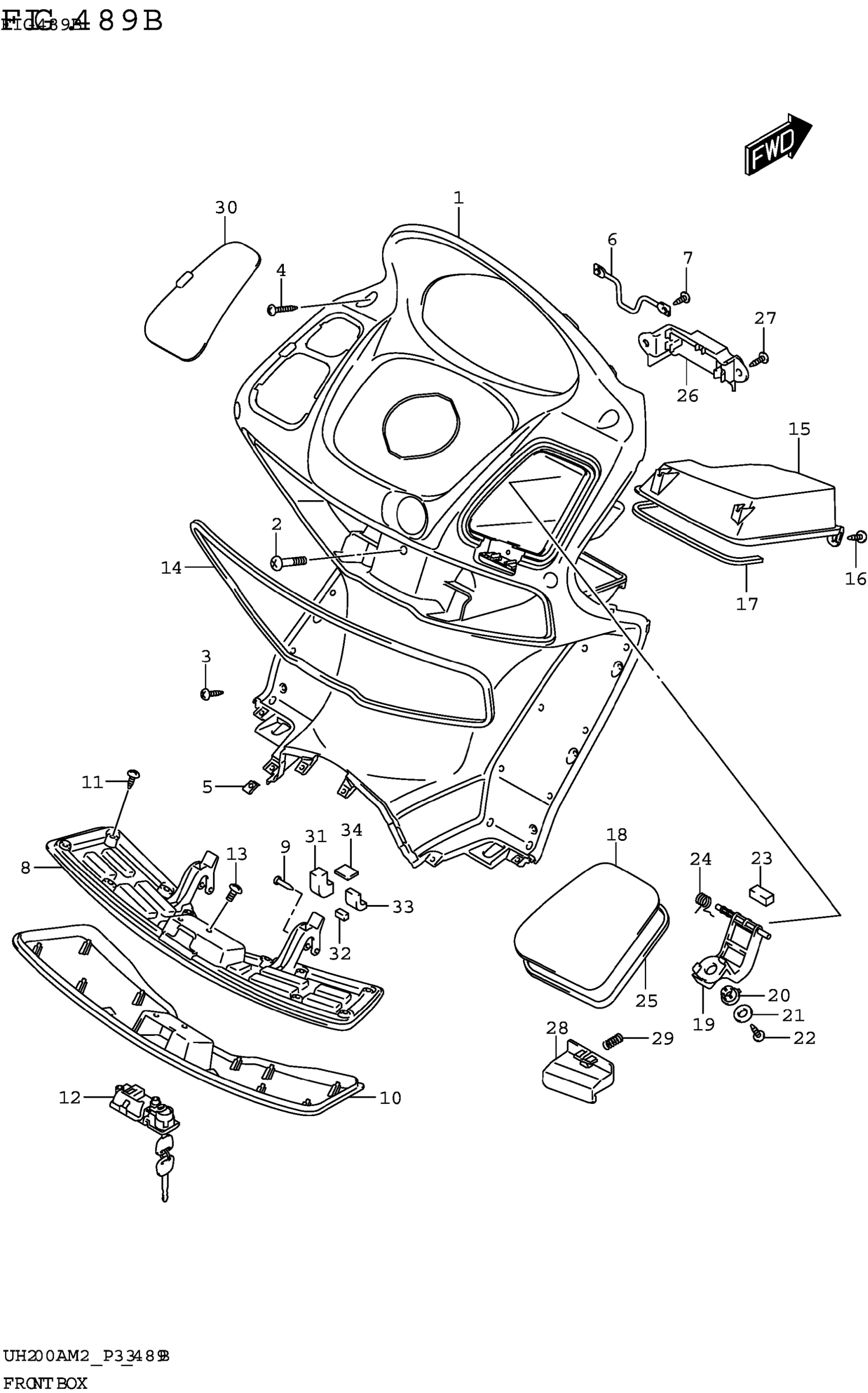

Suzuki UH200AM2 (2022) FRONT BOX Diagram

#

Description
Price

1

BOX, FRONT (BLACK)

92111-12JD0-291

$234.27

2

SCREW,FRONT BOX (6X12)

92124-12JA0

$2.33

3

SCREW

03541-0516A

$1.49

4

SCREW

03541-0525B

$2.32

5

NUT (M5)

09148-05038

$1.97

6

STRIKER,FR BOX

92171-12JA0

Unavailable

7

SCREW

03541-0512A

$1.49

8

LID,FRONT BOX NO.2

92122-12JB0

$38.50

9

PIN,GLOVE BOX HINGE

73423-50G00

$5.10

10

LID,FRONT BOX NO.1 (BLACK)

92121-12JB0-291

$51.77

11

SCREW

03541-0412A

$1.49

12

LOCK SET,FRONT BOX

92100-12821

$48.48

13

.SCREW

02142-0512A

$1.49

14

CUSHION,FR BOX NO.1

92114-12JA0

$6.70

15

BOX,FRONT INNER

92123-12JB0

Unavailable

16

SCREW

03541-0516A

$1.49

17

CUSHION,FR BOX NO.2

92141-12JA0

$4.58

18

LID,FRONT PANEL (BLACK)

92142-12JB0-291

$16.52

19

ARM,FR PANEL LID

92148-12JB0

Unavailable

20

STOPPER,FR PANEL LID

92149-12JA0

$4.82

21

CUSHION

09320-09004

$3.03

22

SCREW (5X16)

09132-05041

$2.06

23

CUSHION,FR PANEL LID NO.1

92146-12JA0

$5.47

24

SPRING,FR PANEL LID NO.1

92145-03H00

$6.52

25

CUSHION,FR PANEL LID NO.2

92147-12JA0

Unavailable

26

RETAINER,FRONT PANEL

92158-12JB0

Unavailable

27

SCREW

03541-0516B

$1.78

28

LOCK,FR PANEL BOX (BLACK)

92143-12JB0-291

$10.97

29

SPRING,FR PANEL LID

92144-14G01

$5.47

30

LID,FR BOX UPR,L (BLACK)

92112-12JB0-291

$11.60

31

CUSHION,FR BOX NO.3

92151-12JA0

$5.38

32

CUSHION,FR BOX NO.4

92152-12JA0

$4.67

33

CUSHION,FR BOX NO.5

92153-12JA0

$4.82

34

CUSHION,FR BOX NO.6

92154-12JA0

$4.58
