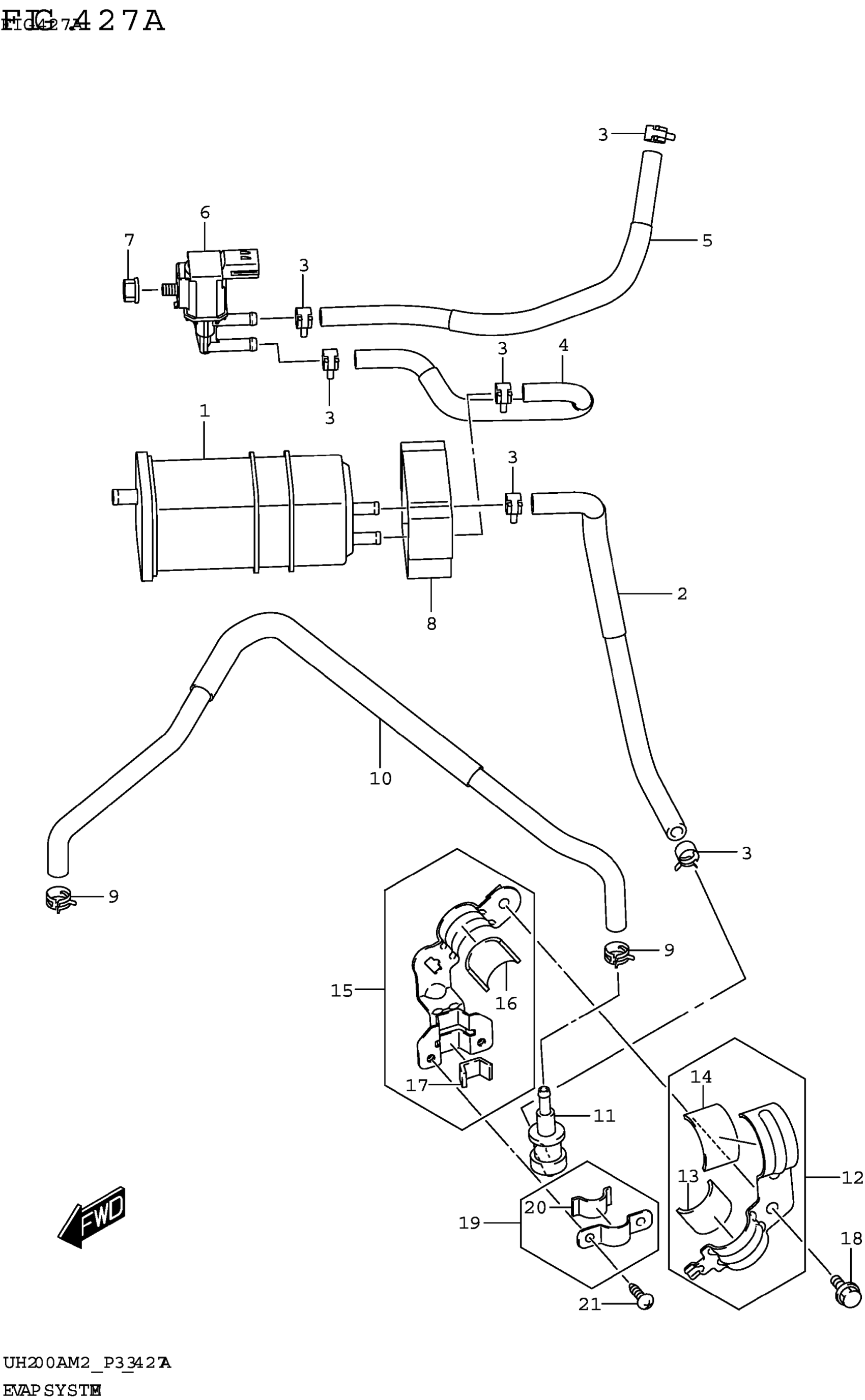

Suzuki UH200AM2 (2022) EVAP SYSTEM Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL

17210-14A00

$156.07

2

HOSE,SURGE

18561-12J00

Unavailable

3

CLIP (ID:10.5,H:8)

09401-10409

$2.26

4

HOSE,PURGE NO.1

18562-12J00

Unavailable

5

HOSE,PURGE NO.2

18563-29K00

$21.67

6

VALVE,CANISTER PURGE

18117-52G10

$151.17

7

NUT (6X12)

08316-1006A

$2.19

8

CUSHION,CANISTER

18572-12J01

Unavailable

9

CLIP (ID:10.5,H:8)

09401-10409

$2.26

10

HOSE,TANK & BREATHER VALVE

44434-12J10

Unavailable

11

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

12

PLATE,BRTHR VALVE NO.1

44880-12J00

Unavailable

13

.CUSHION,BRTHR VALVE

44894-12J00

Unavailable

14

.CUSHION,BRTHR VALVE

44895-12J00

Unavailable

15

PLATE,BRTHR VALVE NO.2

44890-12J00

Unavailable

16

.CUSHION,BRTHR VALVE

44894-12J00

Unavailable

17

CUSHION (10X30X2)

44894-24A00

$1.72

18

BOLT

01550-0612A

$1.97

19

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

20

CUSHION (10X30X2)

44894-24A00

$1.72

21

SCREW

02142-0408A

$1.55
