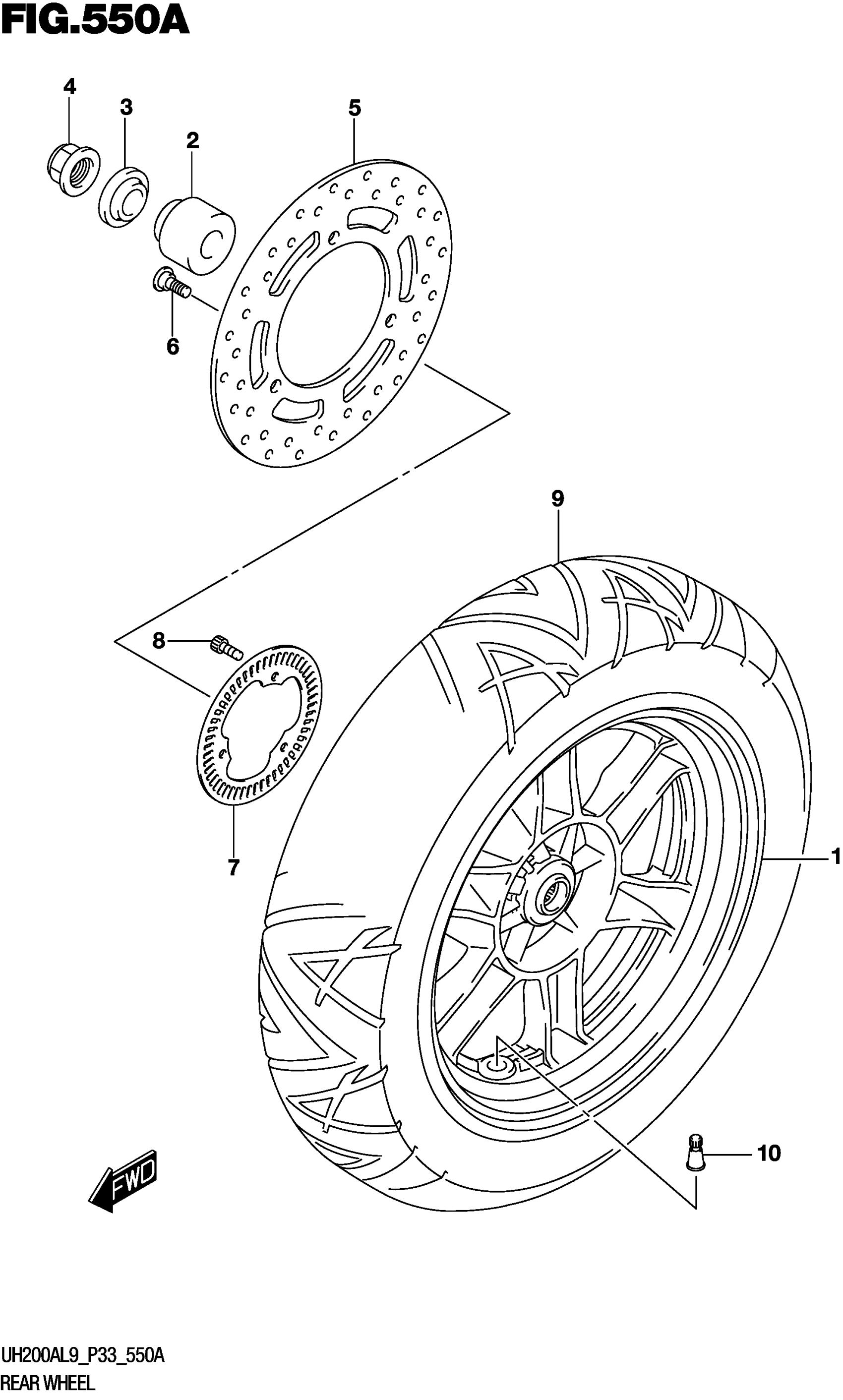

Suzuki UH200AL9 (2019) REAR WHEEL Diagram

#

Description

Price

1

WHEEL,REAR (12XMT3.00,BLACK)

64150-12J00-019

$390.28

1

WHEEL,REAR (12XMT3.00,BLACK)

64150-12J00-019

$390.28

2

SPACER,REAR AXLE INNER

64741-03H01

$9.85

3

SPACER,REAR AXLE OUTER

64751-03H10

$4.38

4

NUT

08319-3116A

$13.97

5

DISC,FRONT BRAKE

59211-12J00

$142.88

6

BOLT,FR BRAKE DISC (8X21)

59218-09G10

$6.37

7

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

8

BOLT

07130-0512A

$2.25

9

TIRE,REAR | MB99 T/L IRC This part replaces 65110-03H21.

65110-03H23

$234.90

10

VALVE ASSY,WHEEL RIM (TR412)

43130-24A60

$8.95
