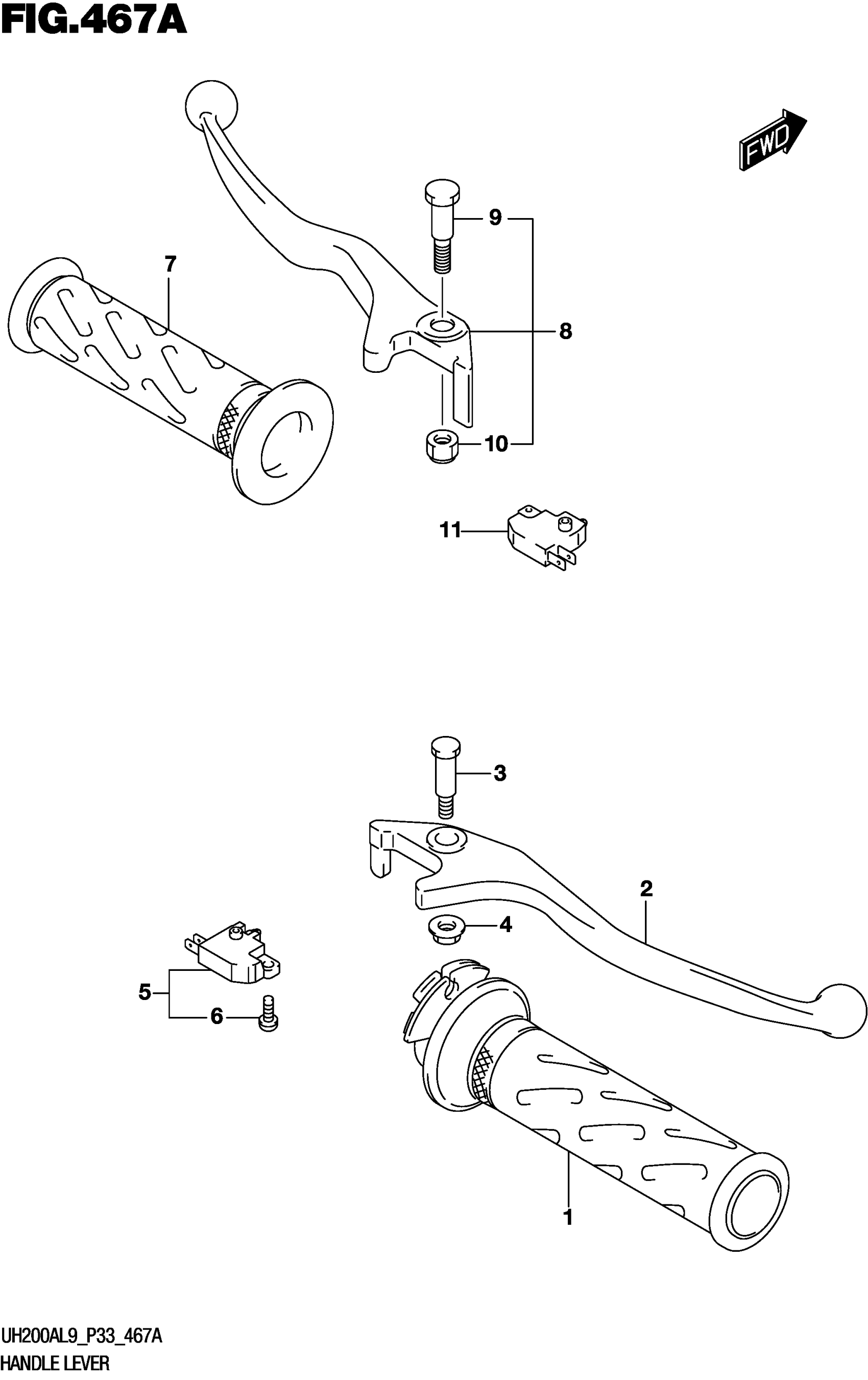

Suzuki UH200AL9 (2019) HANDLE LEVER Diagram

#

Description

Price

1

GRIP,THROTTLE (BLACK)

57110-29G20-291

$16.90

2

LEVER,FR BRAKE

57421-14F00

$17.89

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.01

4

NUT,LEVER PIVOT

57433-09F00

$3.41

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L (BLACK)

57211-22D60-291

$6.73

8

LEVER ASSY,RR BRAKE

57500-14F00

$18.88

9

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.01

10

NUT

08319-2106B

$2.38

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

$38.03
