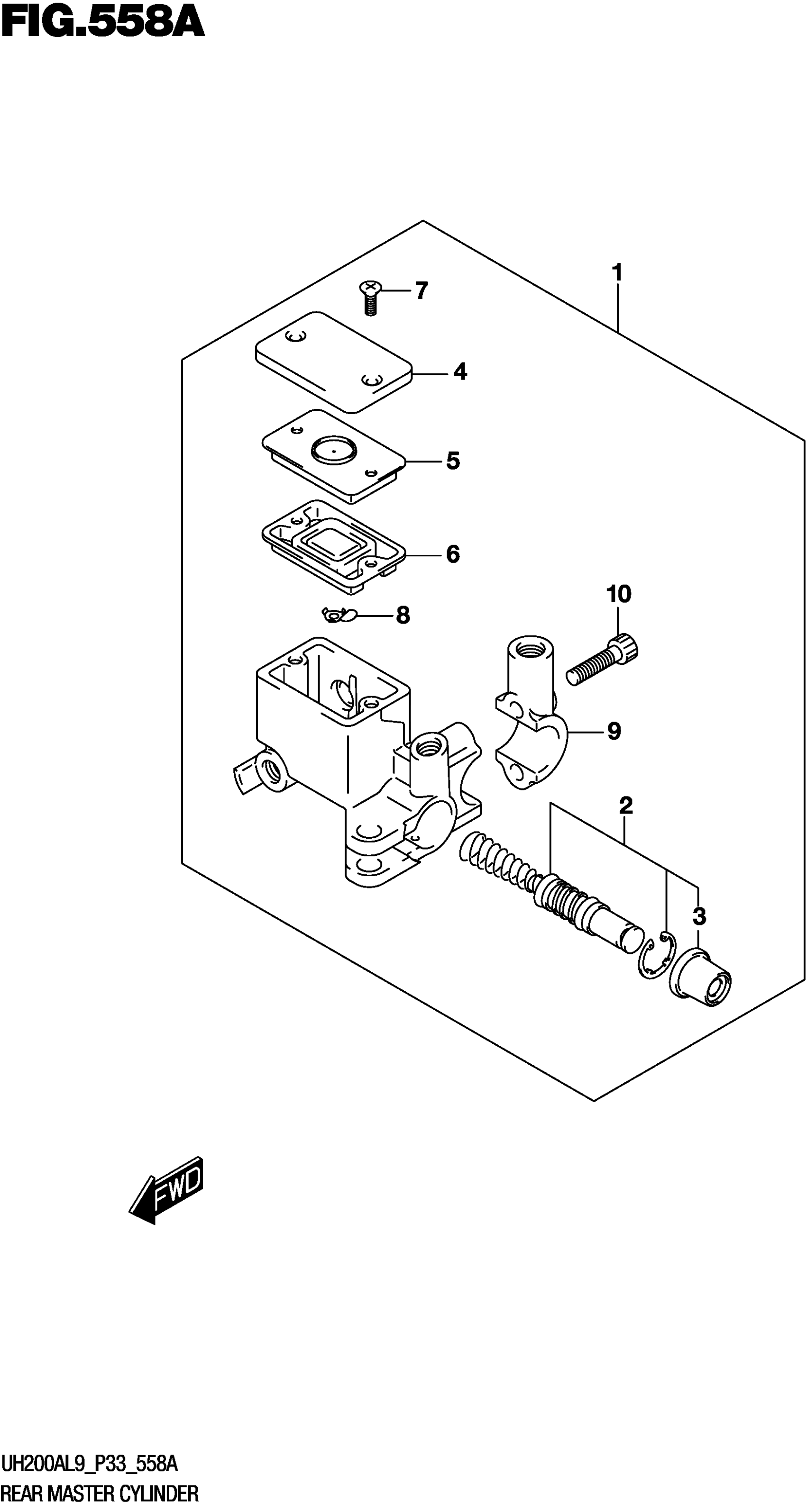

Suzuki UH200AL9 (2019) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-03H30

$92.98

2

.PISTON/CUP SET

59600-04810

$45.20

3

..BOOT

59666-44300

$5.80

4

.CAP

59669-14F10

$20.40

5

.PLATE,DIAPHRAGM

59668-14F00

$11.60

6

.DIAPHRAGM

59667-04700

$9.78

7

.SCREW

69689-49300

$1.91

8

.PROTECTOR

59664-32F00

$11.68

9

.HOLDER

59671-32F00

$19.52

10

.BOLT (6X22)

59675-06F10

$4.65
