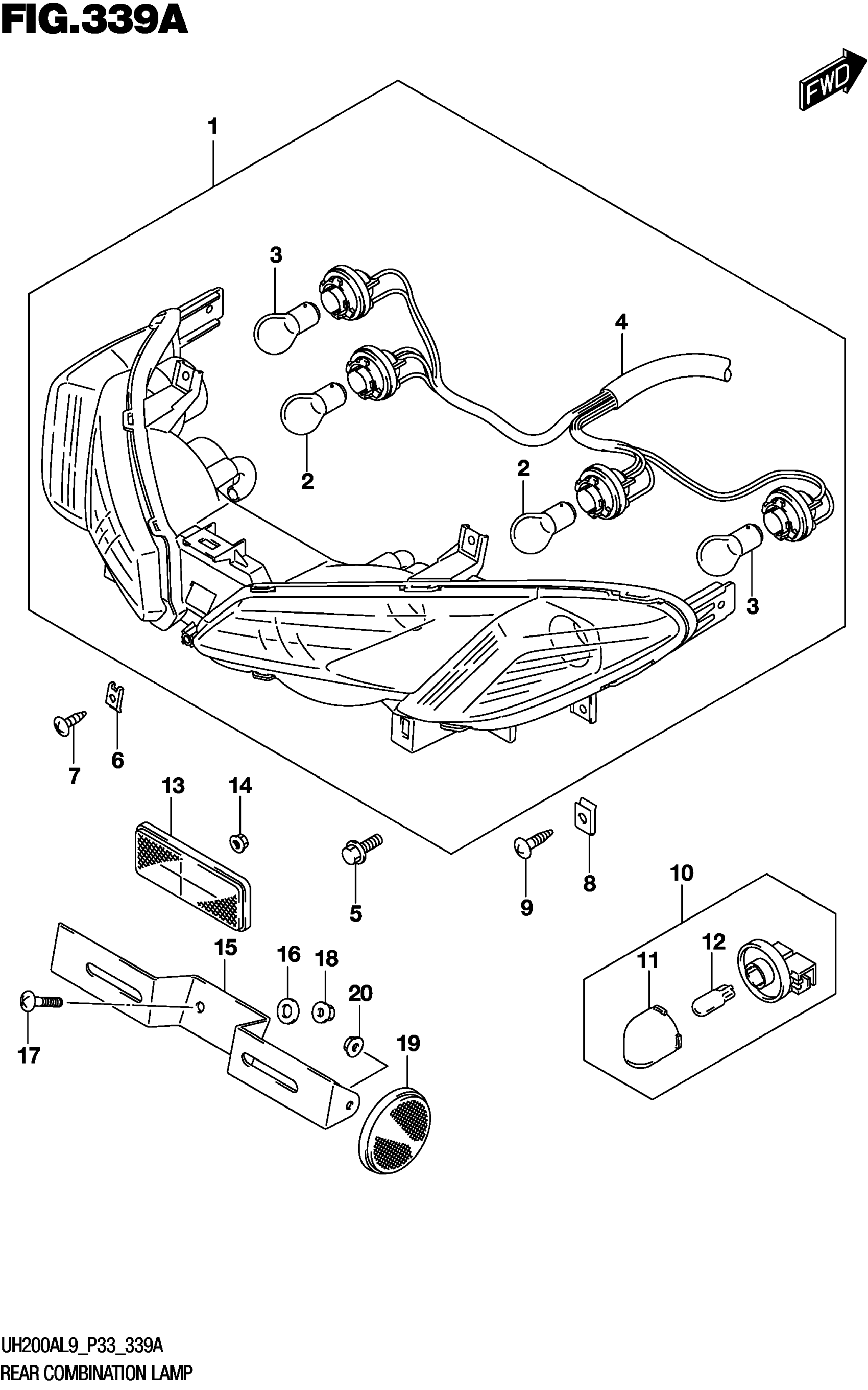

Suzuki UH200AL9 (2019) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-12J00.

35710-12J01

$170.62

2

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

$6.73

3

.BULB (12V21W)

09471-12186

$12.66

4

.CORD ASSY

35718-12J00

Unavailable

5

BOLT,REAR COMB

35725-12J00

Unavailable

6

NUT,REAR COMB

35155-12J00

Unavailable

7

.SCREW

02142-0516A

$1.49

8

NUT (M5)

09148-05038

$1.97

9

SCREW

03541-0516A

$1.49

10

LAMP ASSY,LICENSE

35910-14F01

$30.22

11

.LENS

35912-14F11

$8.28

12

.BULB (12V5W)

09471-12216

$5.36

13

REFLECTOR ASSY,REAR

35970-22J00

Unavailable

14

NUT

08316-1005A

$2.19

15

BRACKET, LICENSE PLATE

35927-12J30

Unavailable

16

WASHER (6.5X16X1.2)

09160-06019

$1.49

17

SCREW

02142-0616A

$1.49

18

NUT (6X12)

08316-1006A

$2.19

19

REFLECTOR ASSY,REAR SIDE

35970-13K00

$16.28

20

NUT

08316-1005A

$2.19
