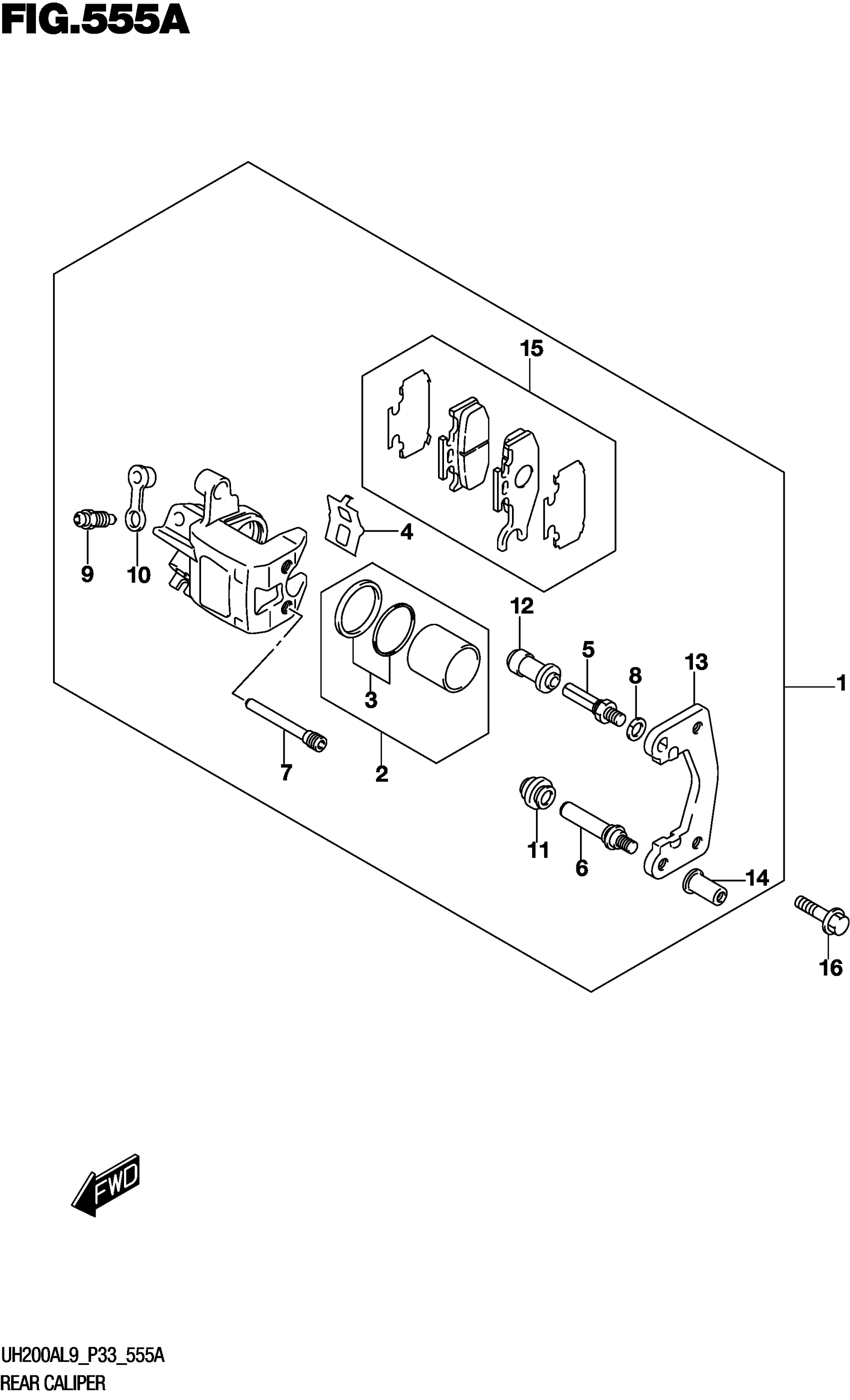

Suzuki UH200AL9 (2019) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-03H31

$244.87

2

.PISTON SET

69100-03830

$36.57

3

..SEAL SET,PISTON

59100-38860

$13.77

4

.SPRING,PAD

59315-27C10

$11.68

5

.BOLT

59382-13A00

$7.69

6

.PIN

59387-12J00

Unavailable

7

.PIN,HANGER

69141-03H00

$13.10

8

.WASHER

59314-13A00

$2.02

9

.BLEEDER

59121-01A00

$8.73

10

.CAP,BLEEDER

59122-01A00

$4.34

11

.BOOT

59303-14500

$5.52

12

.BOOT

59386-13A00

$7.95

13

.BRACKET

69151-03H00

Unavailable

14

.NUT

59388-03H00

Unavailable

15

.PAD SET

69101-03820

$96.58

16

BOLT

07120-0855B

Unavailable
