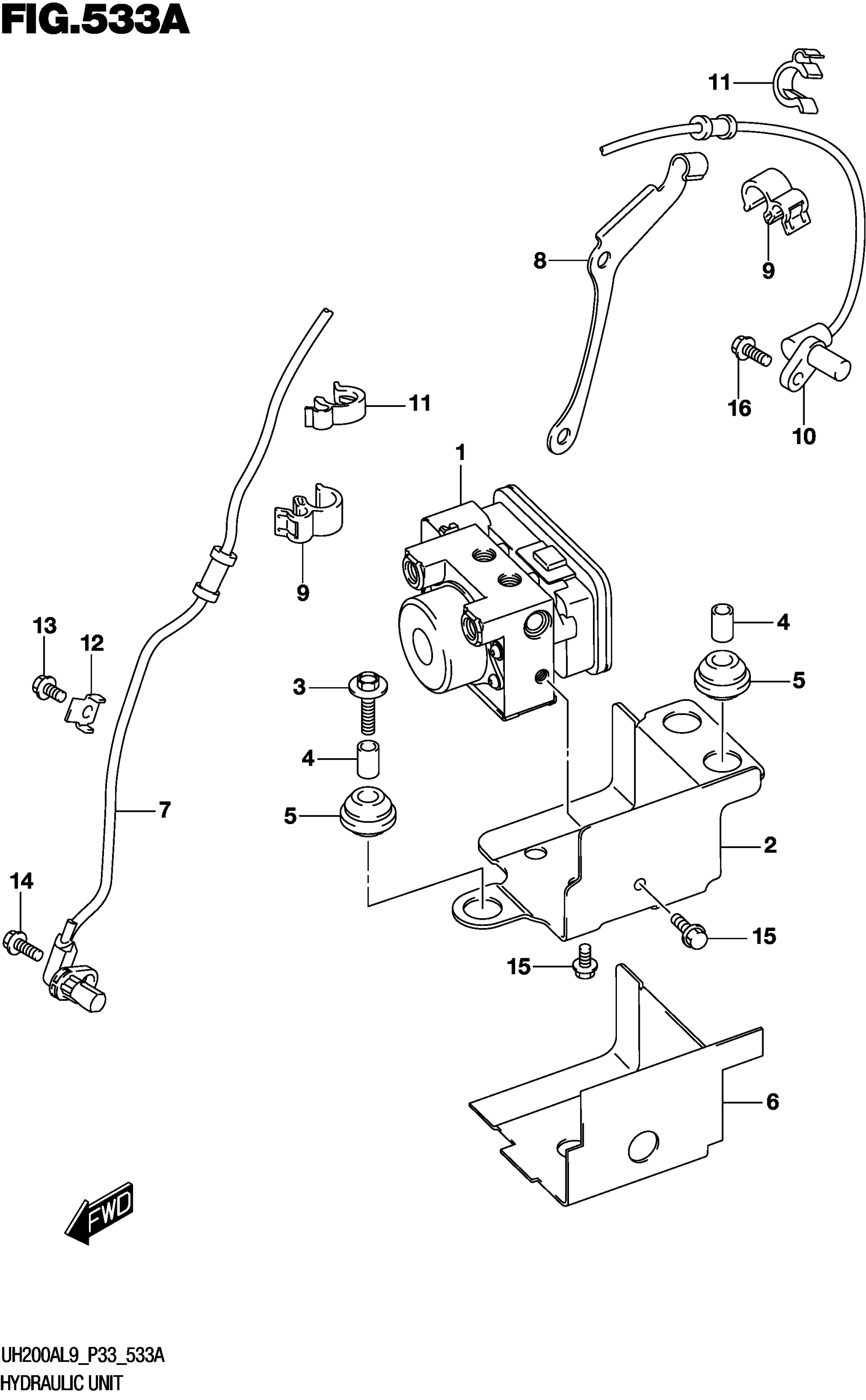

Suzuki UH200AL9 (2019) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-12J10

Unavailable

2

HOLDER, HYDRAULIC UNIT

55660-12J00

Unavailable

3

BOLT (6X25)

09116-06150

$2.59

4

SPACER,HYDR UNIT MTG (#05)

55662-10G00

Unavailable

5

RUBBER,HYDR UNIT MTG

55663-10G00

Unavailable

6

SHIELD, ABS UNIT HEAT

55664-12J00

Unavailable

7

SENSOR, FR WHEEL ABS

55710-12J10

$121.55

8

CLAMP, ABS SENSOR LEAD REAR

65731-12J00

Unavailable

9

CLAMP

09408-00266

$2.51

10

SENSOR, RR WHEEL ABS

65710-12J10

$146.32

11

CLAMP

09408-00307

$2.97

12

GUIDE, SENSOR LEAD

34938-14F00

$6.30

13

BOLT

01547-0612A

$2.03

14

BOLT

01547-0616A

$2.03

15

BOLT

01550-0612A

$1.97

16

BOLT

01547-0620A

$2.03
