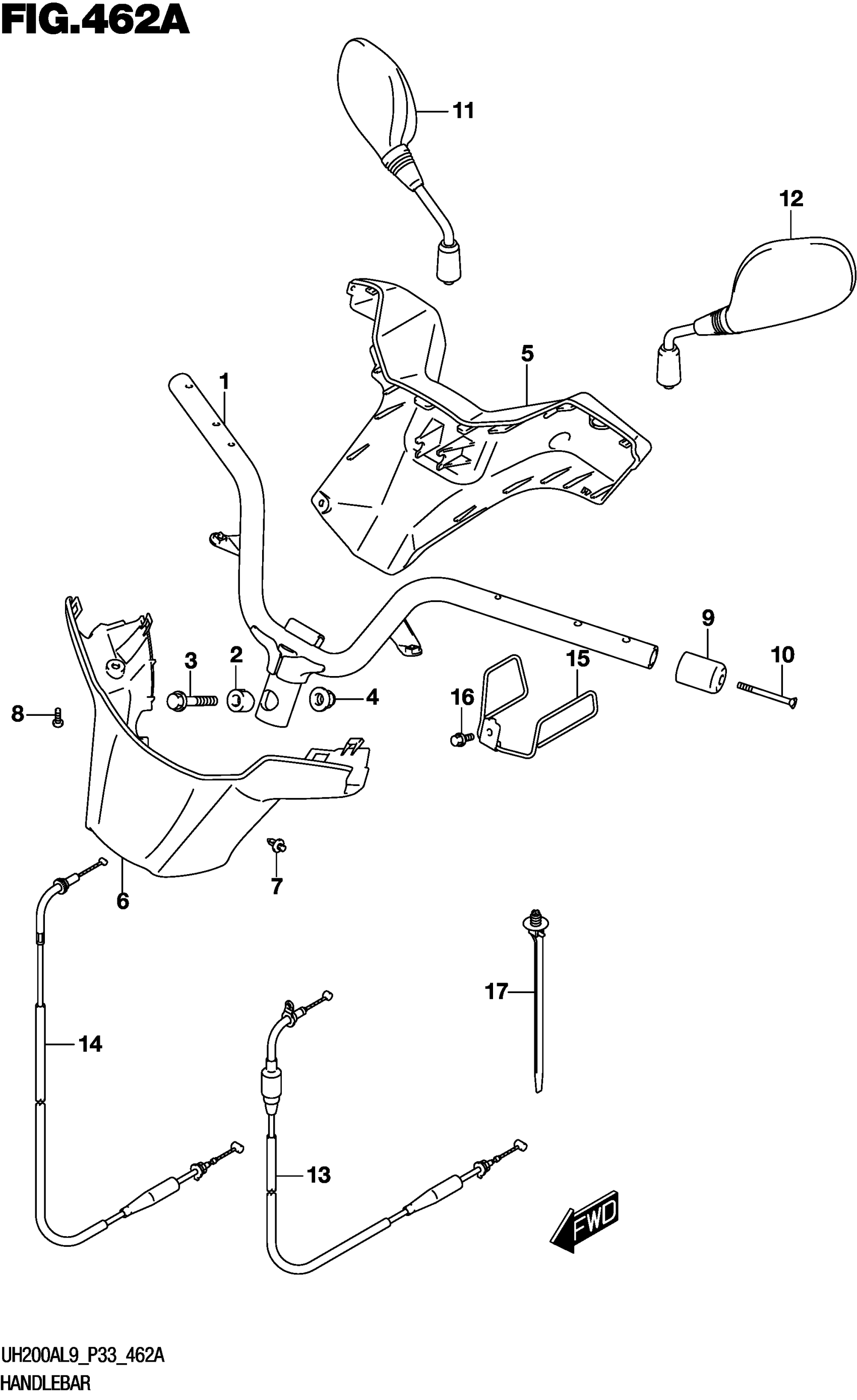

Suzuki UH200AL9 (2019) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-12J10

$123.45

2

STOPPER,HANDLEBAR

51358-09G00

Unavailable

3

BOLT (10X48)

09103-10126

$4.50

4

NUT

08319-3110A

$2.73

5

COVER,HANDLE UPR (BLACK)

56311-12JB0-291

$64.53

6

COVER,HANDLE LWR (BLACK)

56321-12JB0-291

$54.55

7

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

8

.SCREW

02142-0512A

$1.49

9

BALANCER

56278-12J01

$15.23

10

.SCREW

02122-0660B

$3.04

11

MIRROR ASSY,RR VIEW,R This part replaces 56500-12J30.

56500-12J31

$46.37

12

MIRROR ASSY,RR VIEW,L This part replaces 56600-12J30.

56600-12J31

$43.22

13

CABLE ASSY, THROTTLE NO.1

58300-12J20

$49.78

14

CABLE ASSY, THROTTLE NO.2

58300-12J30

$49.78

15

GUIDE,THROTTLE CABLE

58620-12J10

Unavailable

16

BOLT

01550-0612A

$1.97

17

CLAMP (L:170)

09407-17403

$4.91
