Description

Price

1

WHEEL,FRONT (13M/CXMT2.50,BLA

54111-12J00-019

$543.12

2

SPACER,FR HUB BEARING

54731-03H10

$7.60

3

BEARING

08133-62017

$18.47

4

SEAL,OIL (18X32X7)

09285-18002

$5.39

5

SPACER,FR HUB BEARING

54711-12J00

Unavailable

6

SPACER,FRONT AXLE RH

54741-03H00

Unavailable

7

NUT

08319-3112A

$3.76

8

DISC,FRONT BRAKE

59211-12J00

$127.22

9

BOLT,FR BRAKE DISC (8X21)

59218-09G10

$5.80

10

TIRE,FRONT | MB99 T/L IRC This part replaces 55110-03H21.

55110-03H22

$158.27

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A60

$7.93

12

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

13

BOLT

07130-0512A

$2.19

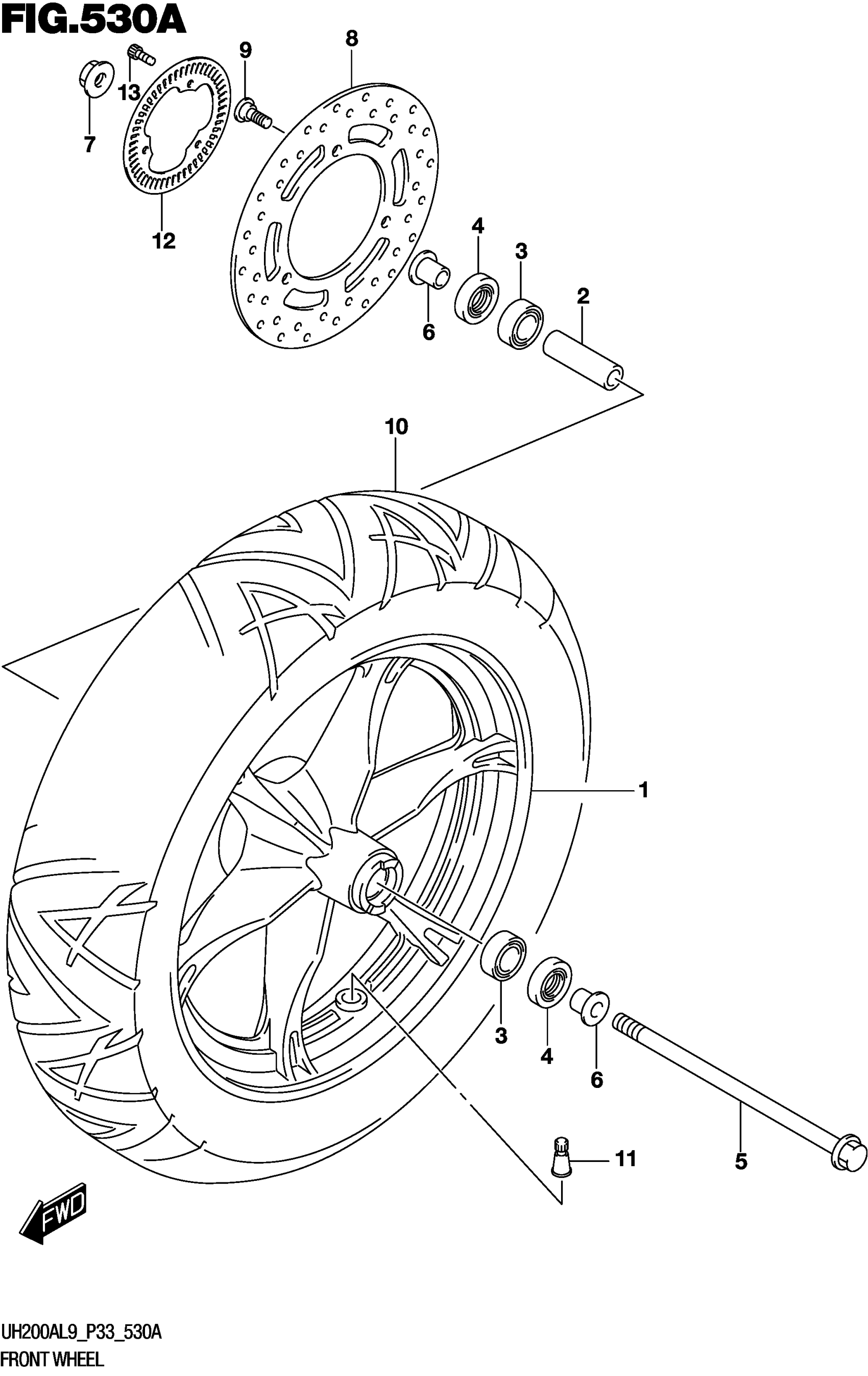

Suzuki UH200AL9 (2019) FRONT WHEEL Diagram

WHEEL,FRONT (13M/CXMT2.50,BLA

SPACER,FR HUB BEARING

BEARING

SEAL,OIL (18X32X7)

SPACER,FR HUB BEARING

SPACER,FRONT AXLE RH

NUT

DISC,FRONT BRAKE

BOLT,FR BRAKE DISC (8X21)

TIRE,FRONT | MB99 T/L IRC This part replaces 55110-03H21.

VALVE ASSY,WHEEL RIM (TR412)

RING,SPEED SENSOR FR (50T)

BOLT
