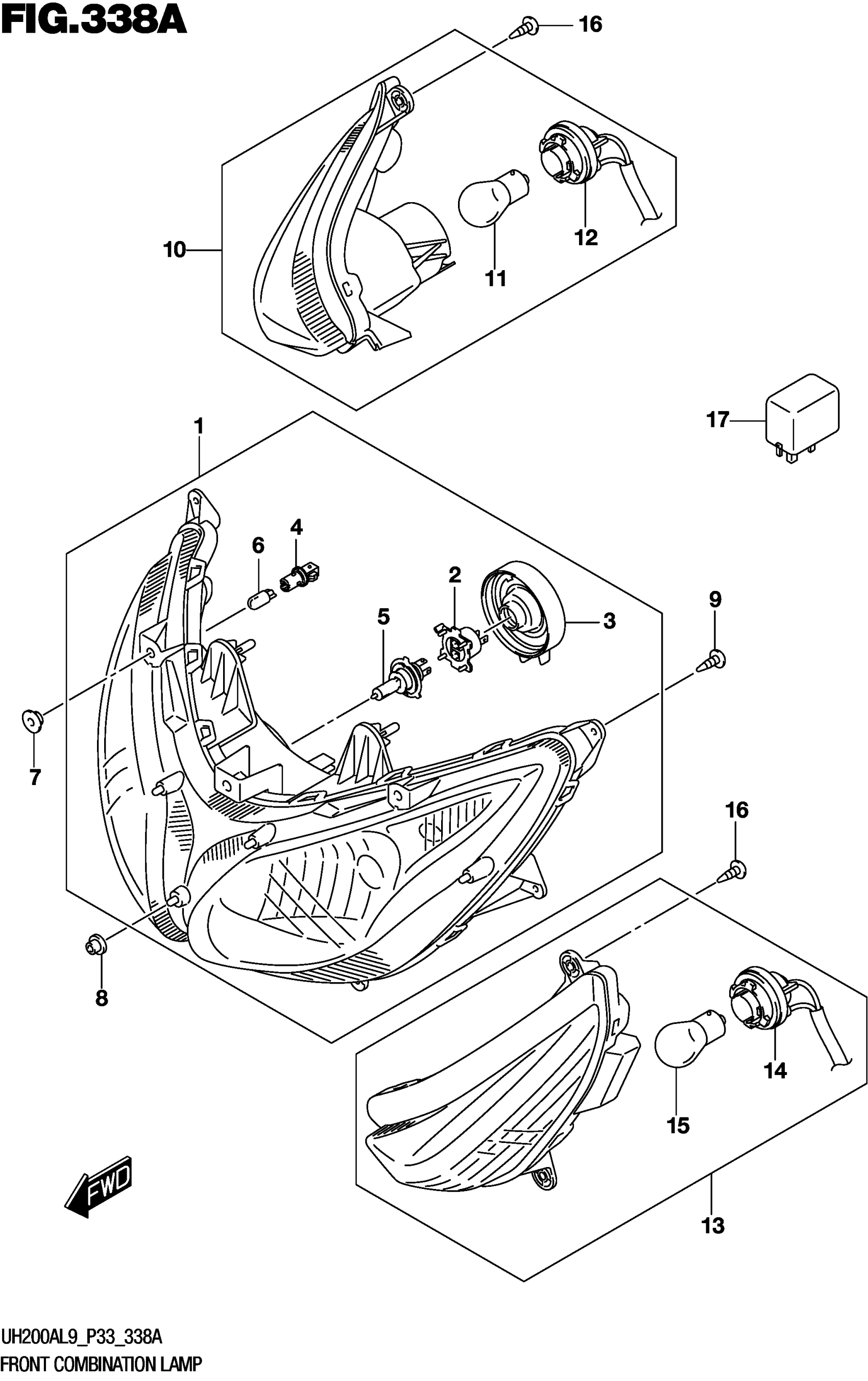

Suzuki UH200AL9 (2019) FRONT COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT COMBINATION

35100-12J00

$379.93

2

.ADAPTOR

34175-03H00

$23.18

3

.BOOT

35179-03H00

$22.52

4

.CORD ASSY,POSITION

35118-03H00

Unavailable

5

BULB (12V55W H7)

09471-12188

$22.60

6

.BULB (12V5W)

09471-12216

$5.36

7

CUSHION

09320-06026

$4.10

8

CUSHION This part replaces 09320-05018.

09320-05022

$2.63

9

SCREW

03541-0516A

$1.49

10

LAMP ASSY,FRONT TURNSIGNAL RH This part replaces 35601-12J00.

35601-12J01

$99.50

11

.CORD ASSY

35618-12J00

Unavailable

12

.BULB (12V21W)

09471-12186

$12.66

13

LAMP ASSY,FRONT TURNSIGNAL LH This part replaces 35602-12J00.

35602-12J01

$80.40

14

.CORD ASSY

35638-12J00

Unavailable

15

.BULB (12V21W)

09471-12186

$12.66

16

SCREW

03541-0516A

$1.49

17

RELAY ASSY,TURNSIGNAL

38610-03F11

$104.88
