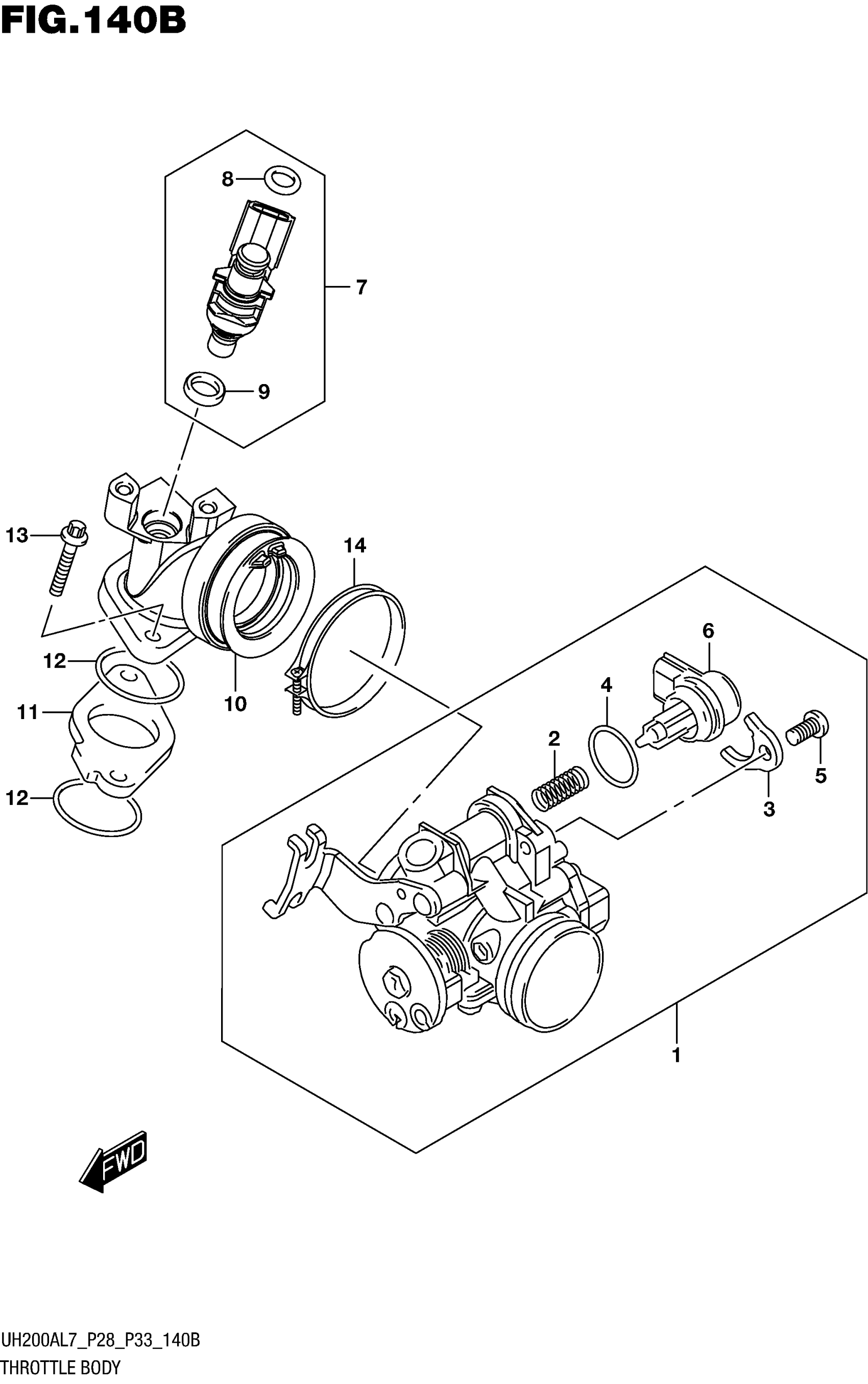

Suzuki UH200AL7 (2017) THROTTLE BODY (UH200AL7 P33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-29K10

$516.77

2

.COMPRESSION SPRING

13417-09JA0

$13.05

3

.PLATE

13421-42J00

$16.40

4

.O-RING

13438-09JA0

$5.47

5

.SCREW

13602-06128

$2.80

6

.STEPPING MOTOR

18117-29K00

Unavailable

7

INJECTOR ASSY, FUEL

15710-29K00

Unavailable

8

.O RING

15721-26J00

$12.08

9

.RING,SEAL

15722-21H00

$10.30

10

PIPE COMP, INTAKE

13110-29K10

Unavailable

11

INSULATOR,INTAKE PIPE

13128-03H10

Unavailable

12

O RING (D:2.4,ID:33.7)

09280-34004

$4.55

13

BOLT

01547-0625A

$2.01

14

CLAMP

09402-48208

$4.19
