2017 Suzuki UH200AL7 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2017 Suzuki UH200AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

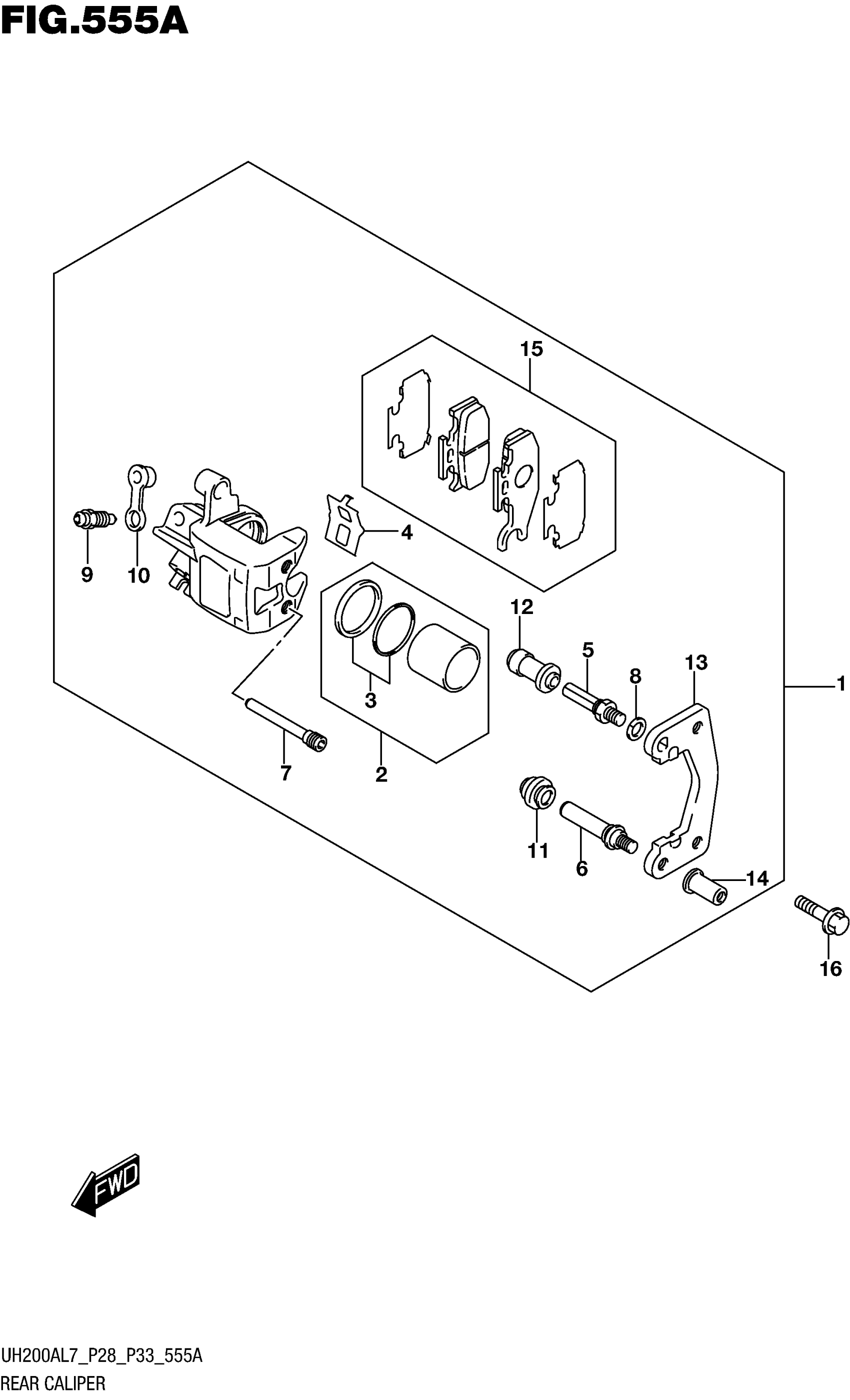

2017 Suzuki UH200AL7 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-03H31

1
Out of stock

2

.PISTON SET

69100-03830

1

$41.27

In stock

3

..SEAL SET, PISTON

59100-38860

1

$15.55

In stock

4

.SPRING, PAD

59315-27C10

1

$13.20

In stock

5

.PIN

59382-13A00

1
Out of stock

6

.PIN

59387-12J00

—
Out of stock

7

.PIN, HANGER

69141-03H00

2
Out of stock

8

.WASHER, SPRING

59314-13A00

1
Out of stock

9

.BLEEDER

59121-01A00

1
Out of stock

10

.CAP, BLEEDER

59122-01A00

1
Out of stock

11

.BOOT

59303-14500

1
Out of stock

12

.BOOT, BUSH

59386-13A00

1
Out of stock

13

.BRACKET, REAR

69151-03H00

1
Out of stock

14

.NUT

59388-03H00

1
Out of stock

15

.PAD SET

69101-03820

1
Out of stock

16

BOLT

07120-0855B

2
Out of stock
