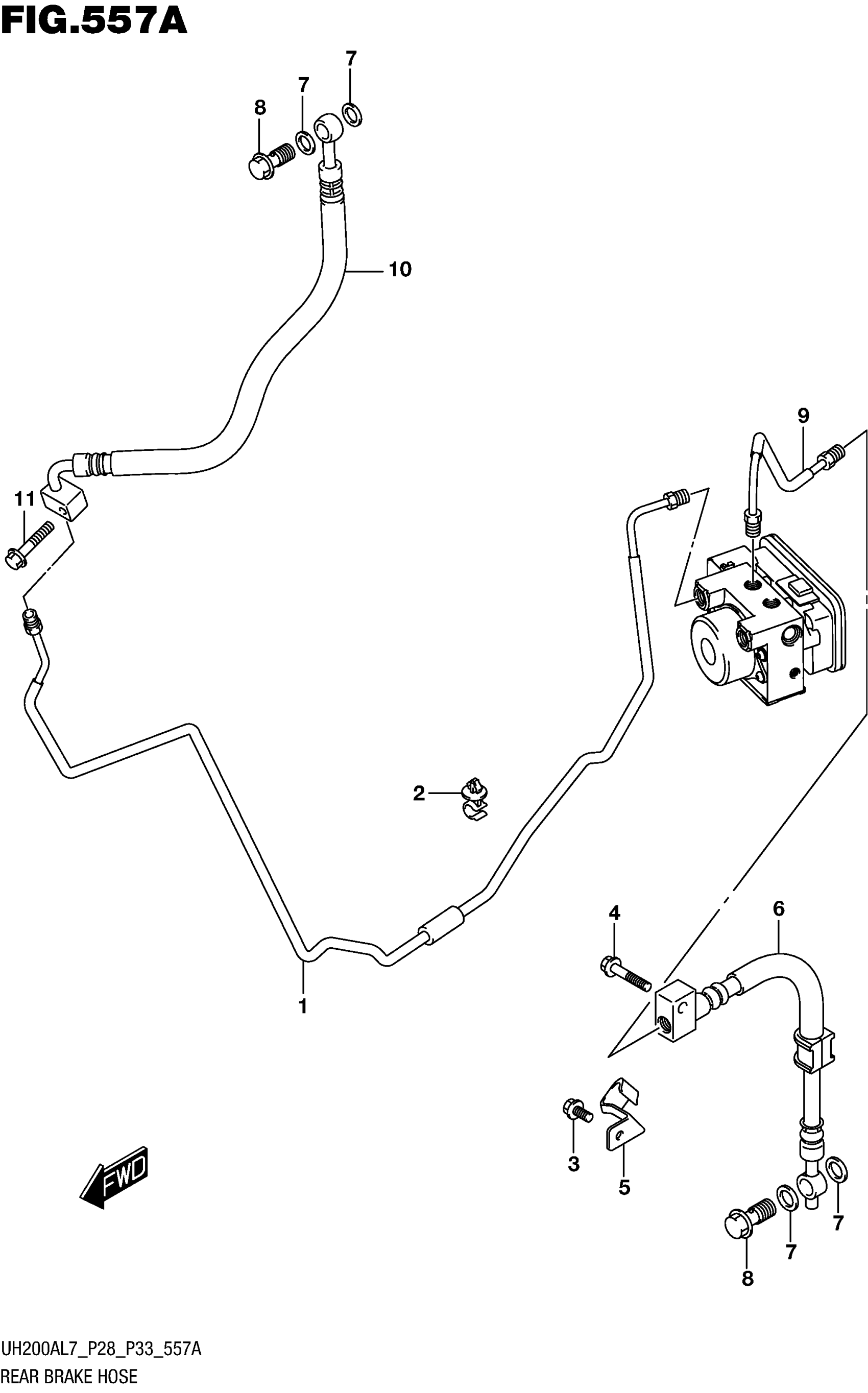

Suzuki UH200AL7 (2017) REAR BRAKE HOSE Diagram

#

Description
Price

1

PIPE, REAR BRAKE NO.1

69250-12J10

Unavailable

2

CLAMP

09403-07331

$3.80

3

BOLT

01547-0612A

$2.01

4

BOLT

01547-0625A

$2.01

5

CLAMP,RR BRAKE HOSE

69245-03H00

Unavailable

6

HOSE,REAR BRAKE NO.2

69480-12J00

Unavailable

7

WASHER (10.2X15X1.4)

09168-10033

$2.86

8

UNION

09360-10062

$5.81

9

PIPE, REAR BRAKE NO.2

69260-12J10

Unavailable

10

HOSE, REAR BRAKE NO.1

69440-12J00

Unavailable

11

BOLT

01547-0625A

$2.01
