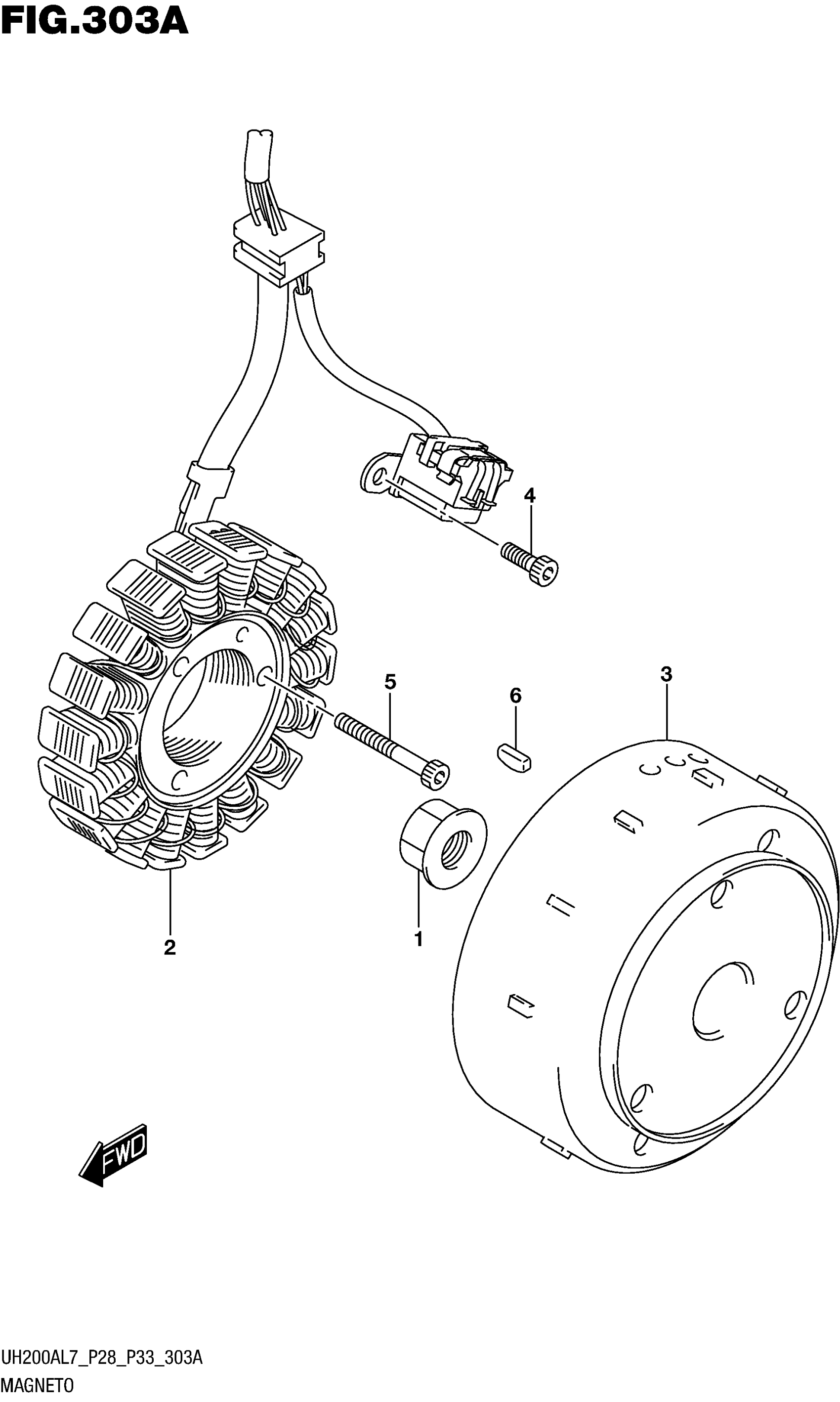

Suzuki UH200AL7 (2017) MAGNETO Diagram

#

Description

Price

1

NUT,MAGNETO ROTOR

31792-03H00

Unavailable

2

STATOR ASSY This part replaces 32101-12J00.

32101-12J01

$549.22

3

ROTOR ASSY

32102-12J10

Unavailable

4

BOLT

07130-0512A

$2.19

5

BOLT

07130-0530A

$1.49

6

KEY

09420-03008

$3.16
