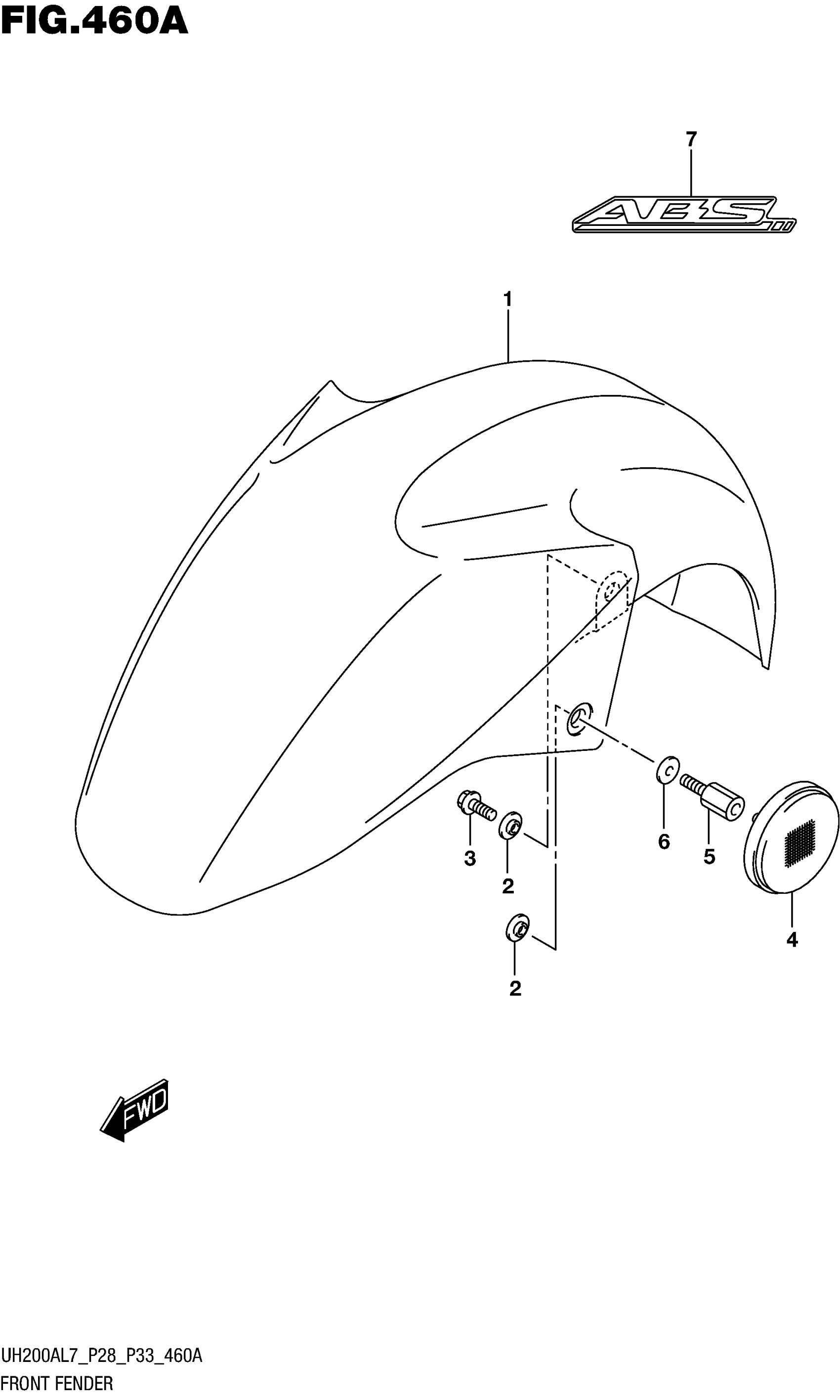

Suzuki UH200AL7 (2017) FRONT FENDER Diagram

#

Description

Price

1-1

FENDER, FRONT (GRAY)

53111-12JA0-PGZ

$98.73

1-2

FENDER,FRONT (WHITE)

53111-12JA0-YUH

$122.25

1-3

FENDER, FRONT (SILVER)

53111-12JA0-YMC

$137.78

2

WASHER This part replaces 09169-06045.

09169-06055

$2.27

3

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

4

REFLEX REFLECTOR ASSY,FR SIDE This part replaces 35950-13K00.

35950-13K01

$12.46

5

BOLT (6X18)

09119-06119

$4.03

6

WASHER (6.5X18X1.0)

09160-06028

$1.49

7-1

EMBLEM, "ABS" (GRAY) | FOR PGZ

68151-12JB0-A79

$5.47

7-2

EMBLEM,"ABS" (GRAY/HITE) | FOR YUH

68151-12JB0-BAV

Unavailable

7-3

EMBLEM, "ABS" (GRAY/SILVER) | FOR YMC

68151-12JB0-BFZ

$6.17
