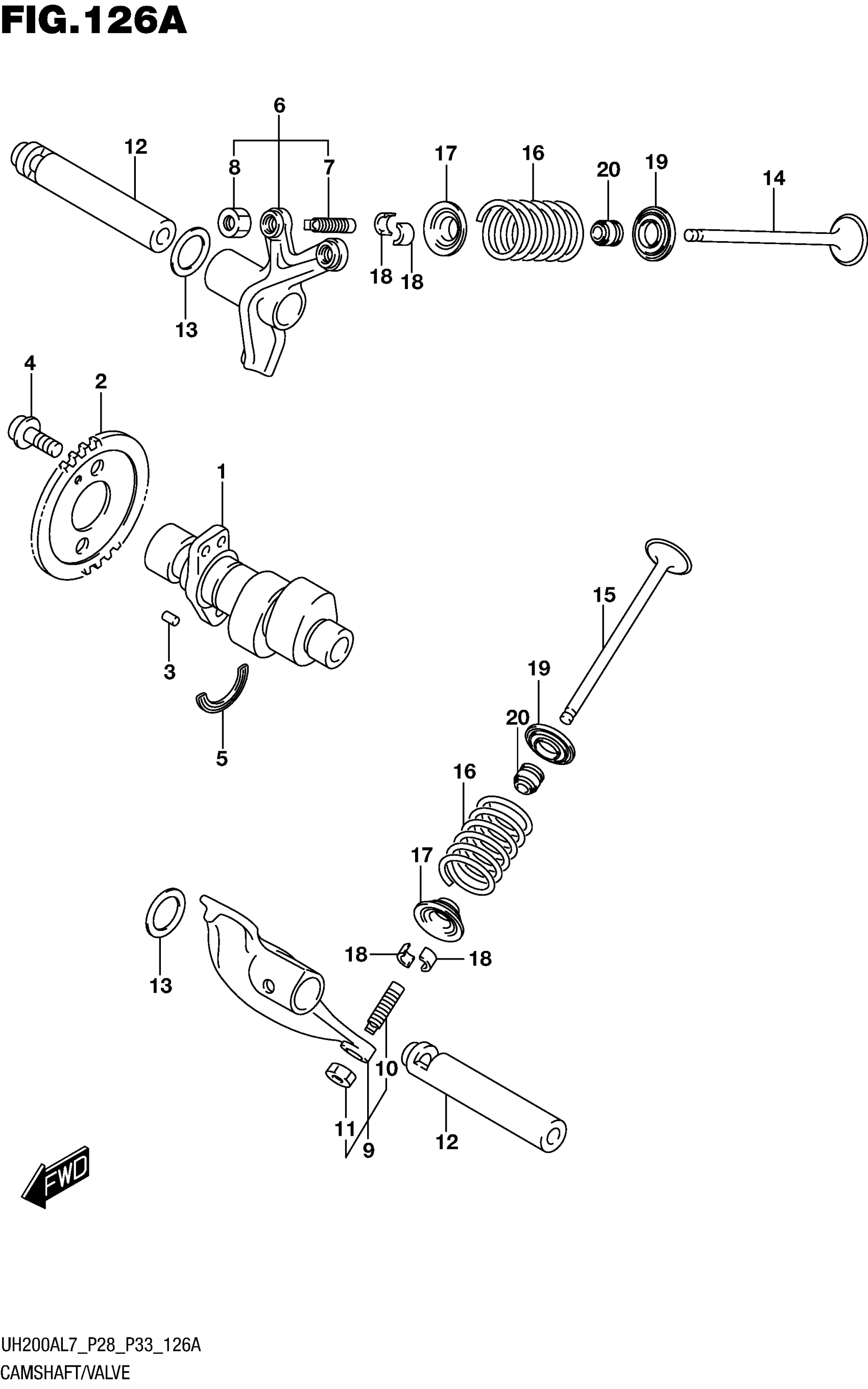

Suzuki UH200AL7 (2017) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-12J10

$256.88

2

SPROCKET,CAMSHAFT

12741-03H10

$49.05

3

PIN (5X8)

09261-05005

$1.49

4

.BOLT

07120-0610A

$2.30

5

C-RING

09390-22002

$2.27

6

ARM, VALVE ROCKER INTAKE

12840-03H40

$81.30

7

.SCREW, TAPPET ADJUSTING

12842-03H00

Unavailable

8

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

9

ARM, VALVE ROCKER EXHAUST

12850-03H40

$79.32

10

.SCREW, TAPPET ADJUSTING

12842-03H00

Unavailable

11

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

12

SHAFT,VALVE ROCKER ARM

12860-03H00-X07

Unavailable

13

WASHER

09164-12018

$1.49

14

VALVE,INTAKE

12911-03H10

Unavailable

15

VALVE,EXHAUST

12912-03H20

$42.58

16

SPRING,VALVE

12921-03G10

$11.72

17

RETAINER,VALVE SPRING

12931-27A40

$6.50

18

COTTER, VALVE

12932-27A00

$2.26

19

SEAT,VALVE SPRING

12933-81400

$5.17

20

OIL SEAL (5X10.5X8.4)

09289-05008

$6.30
