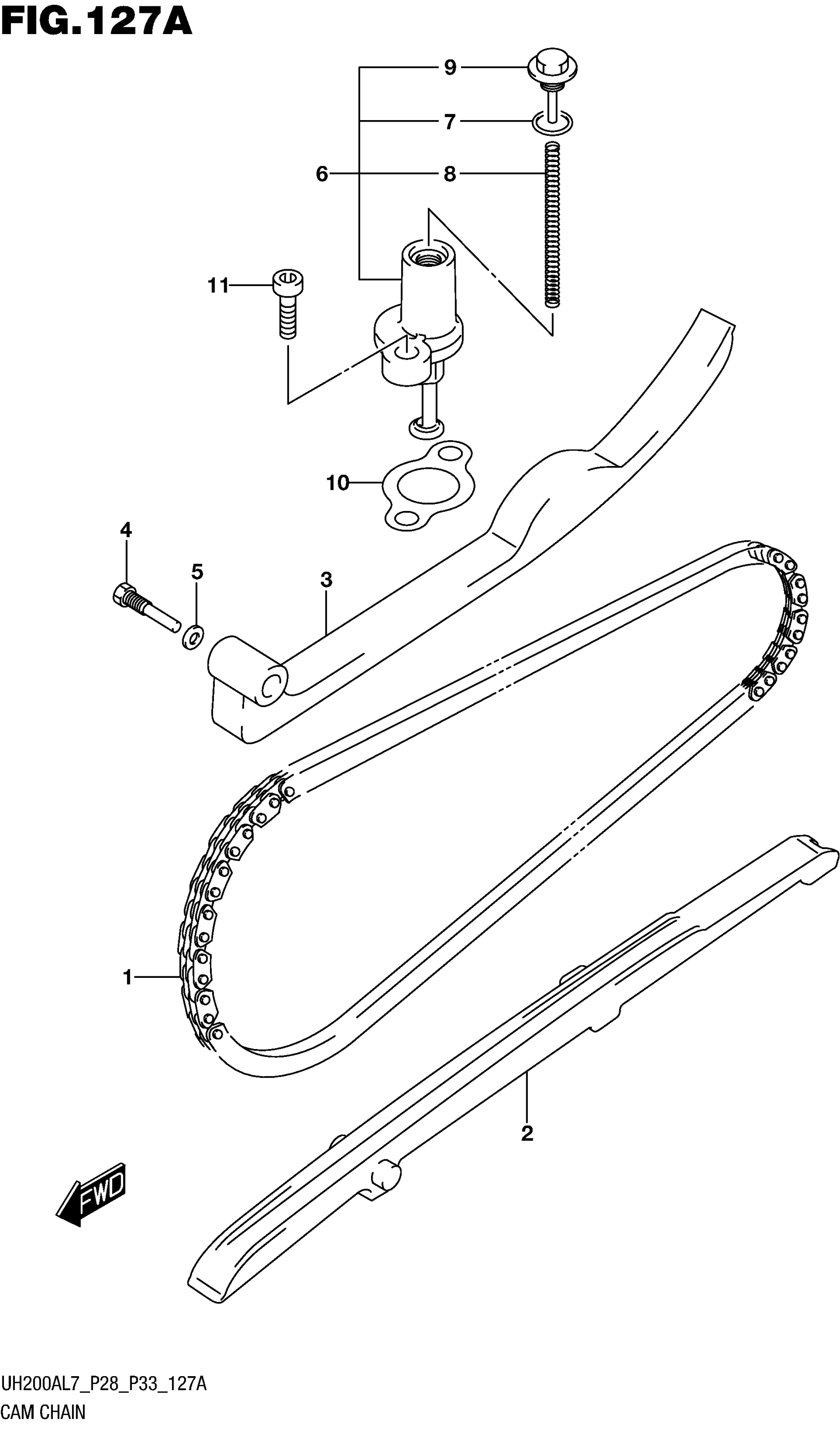

Suzuki UH200AL7 (2017) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE

12760-04B00

$75.52

2

GUIDE,CAM CHAIN

12771-21F10

Unavailable

3

TENSIONER,CAM CHAIN

12811-21F10

Unavailable

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1)

09168-08016

$1.65

6-1

ADJUSTER ASSY,TENSIONER | MARK "UP"

12830-02A00

Unavailable

6-2

ADJUSTER ASSY,TENSIONER | MARK "B"

12830-02A10

$22.33

7-1

.O RING | FOR 12830-02A00

12832-02A00

$2.82

7-2

.O-RING (D:1.9,ID:5.7) | FOR 12830-02A10

12837-02A10

Unavailable

8-1

.SPRING | FOR 12830-02A00

12833-02A00

$3.27

8-2

.SPRING | FOR 12830-02A10

12836-02A10

Unavailable

9-1

.PLUG, ADJUSTER | FOR 12830-02A00

12834-02A00

Unavailable

9-2

.PLUG, ADJUSTER | FOR 12830-02A10

12838-02A10

Unavailable

10

GASKET, TENSIONER ADJUSTER

12837-16H00

Unavailable

11

BOLT

07130-0620A

$2.50
