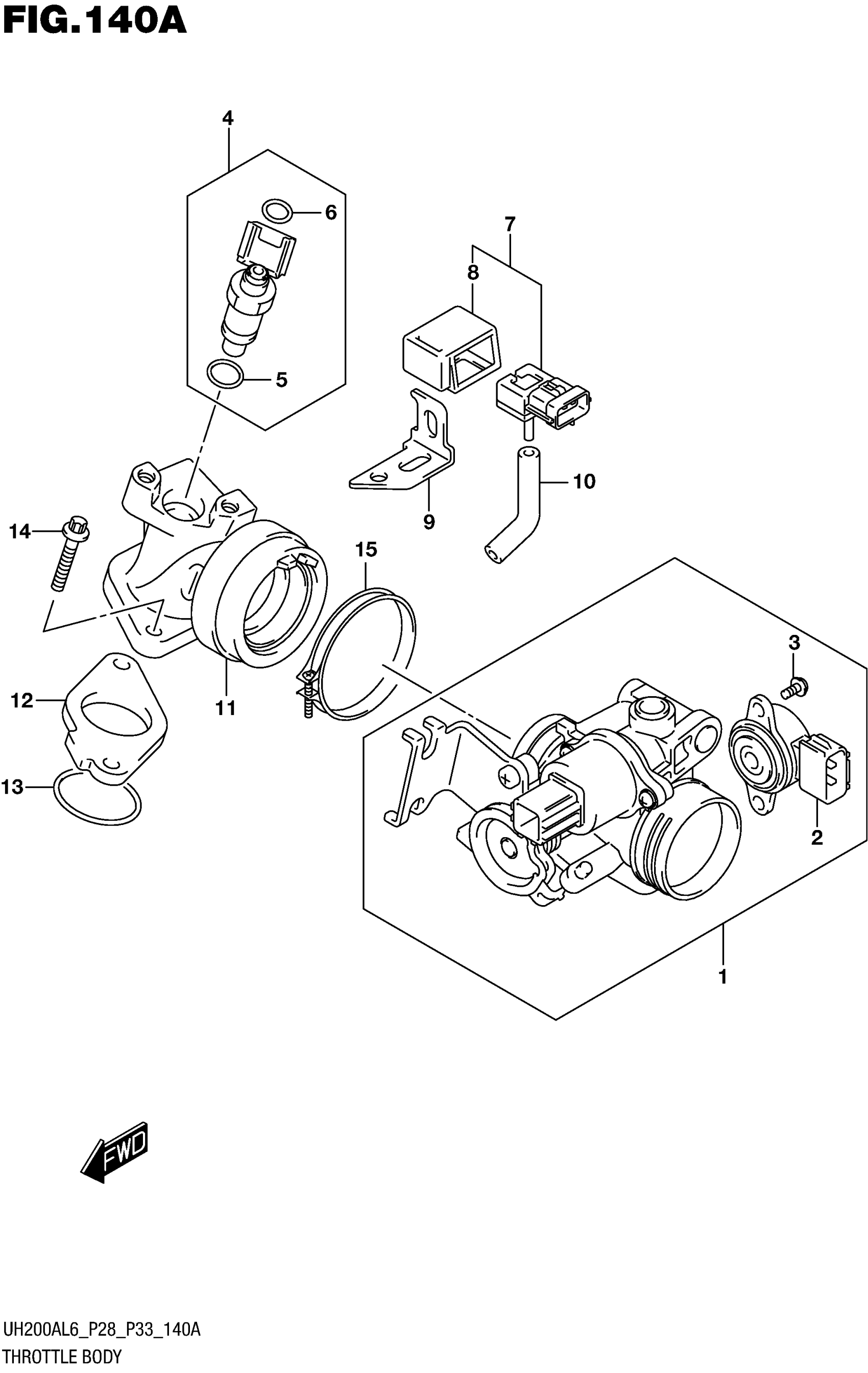

Suzuki UH200AL6 (2016) THROTTLE BODY (UH200AL6 P28) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-03H10

Unavailable

2

.SENSOR

13580-03H00

Unavailable

3

.SCREW

13602-03H00

Unavailable

4

INJECTOR ASSY, FUEL

15710-03H30

$298.88

5

.O RING

15716-03H00

$17.87

6

.O RING

15717-03H00

$16.52

7

SENSOR, BOOST

15630-29G10

$273.45

8

.COVER

15625-29G00

$12.40

9

BRACKET

15640-03H00

Unavailable

10

HOSE

18598-03H00

Unavailable

11

PIPE, INTAKE

13101-49F60

Unavailable

12

INSULATOR,INTAKE PIPE

13128-03H10

Unavailable

13

O RING (D:2.4,ID:33.7)

09280-34004

$4.18

14

BOLT

01547-0625A

$2.01

15

CLAMP

09402-48208

$4.64
