2016 Suzuki UH200AL6 Radiator Hose Diagram

← All diagrams

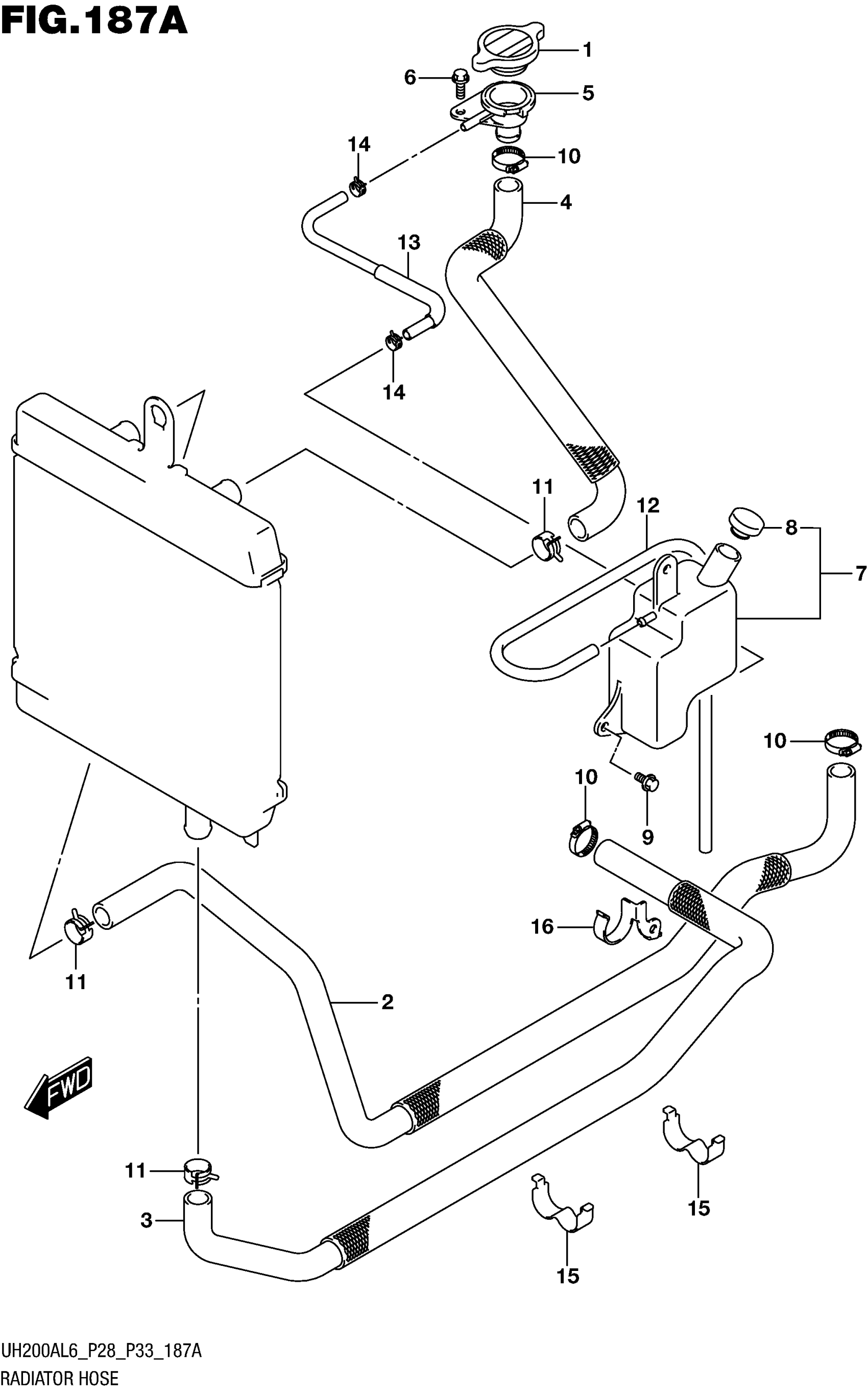

Find the part on the Radiator Hose diagram for your 2016 Suzuki UH200AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki UH200AL6 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR

17730-14G00

1
Out of stock

2

HOSE,RADIATOR INLET

17851-03H20

1
Out of stock

3

HOSE,RADIATOR OUTLET

17852-03H20

1
Out of stock

4

HOSE,CONDUCTION

17855-03H20

1
Out of stock

5

CONDUCTION,RADIATOR

17791-12J00

1
Out of stock

6

BOLT

01550-0616A

1
Out of stock

7

TANK ASSY,RESERVOIR

17910-12J00

1
Out of stock

8

.CAP, RESERVOIR TANK

17932-12C00

1
Out of stock

9

BOLT

09103-06285

2
Out of stock

10

CLAMP

09402-27001

—
Out of stock

11

CLIP

09401-21411

—
Out of stock

12

HOSE, RESERVOIR TANK OVERFLOW

17982-03H20

1
Out of stock

13

HOSE, RESERVOIR TANK INLET

17981-03H10

1
Out of stock

14

CLIP

09401-08411

2
Out of stock

15

PLATE, WATER HOSE CLAMP

17859-03H00

2
Out of stock

16

CLAMP

17858-12J00

1
Out of stock
