2016 Suzuki UH200AL6 Crankcase Cover Diagram

← All diagrams

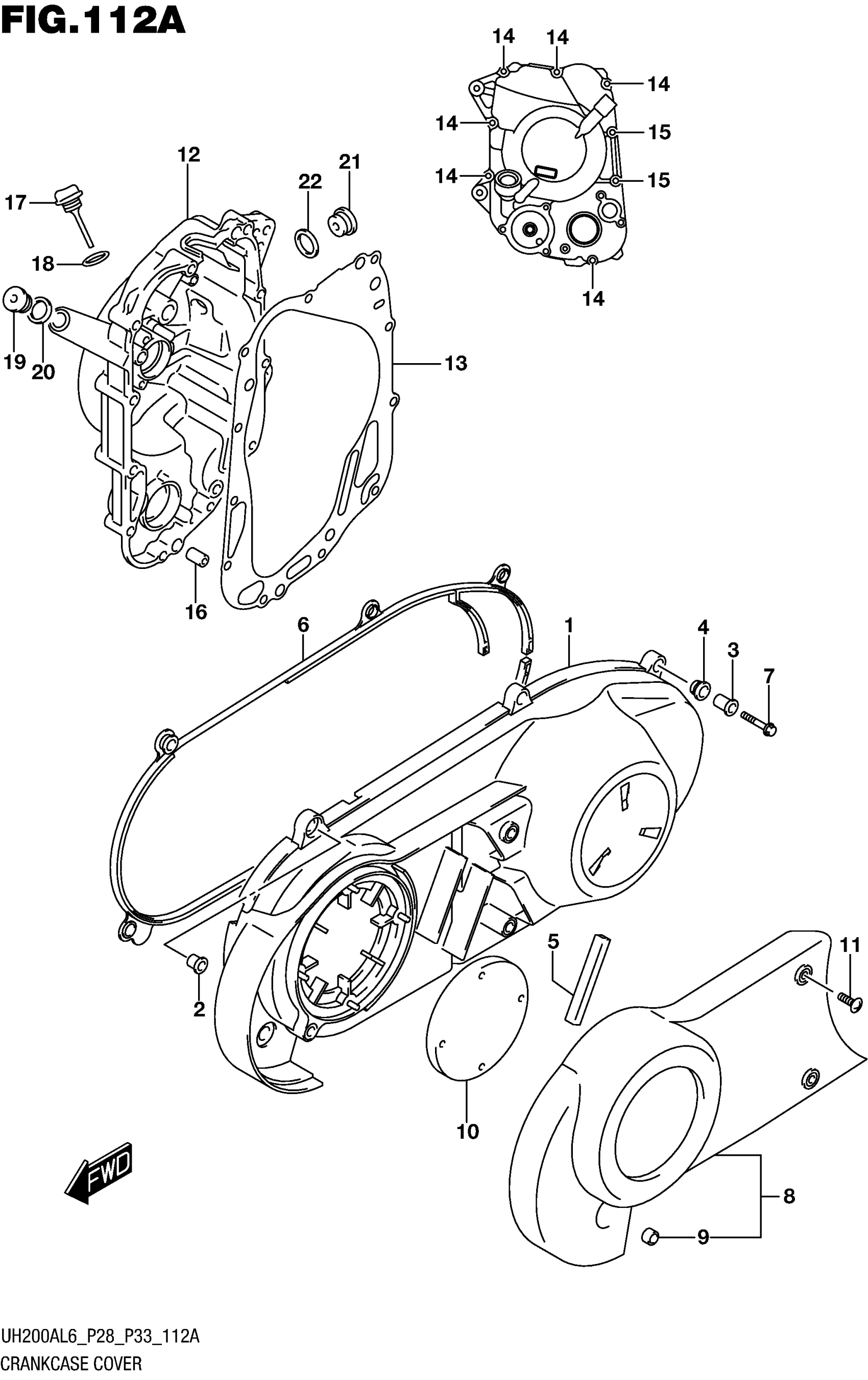

Find the part on the Crankcase Cover diagram for your 2016 Suzuki UH200AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki UH200AL6 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH

11340-12J00

1
Out of stock

2

SPACER,CLUTCH COVER

11342-03H00

1
Out of stock

3

SPACER,CLUTCH COVER NO.1

11342-43E20

5
Out of stock

4

CUSHION,CLUTCH COVER

11344-43E20

5
Out of stock

5

MOLD,CLUTCH COVER

11345-03H00

2
Out of stock

6

GASKET, CLUTCH COVER

11482-03H00

1
Out of stock

7

BOLT

01547-0625A

6
Out of stock

8

DUCT, BELT COOLING

11380-12J00

1
Out of stock

9

.SPACER (6.5X10X7)

09180-06283

3
Out of stock

10

FILTER,BELT COOLING

11388-03H01-X07

1
Out of stock

11

SCREW

02142-0616B

3
Out of stock

12

COVER,MAGNETO

11351-03H10

1
Out of stock

13

GASKET, MAGNETO COVER

11483-03H00-X07

1
Out of stock

14

BOLT

01547-0635A

6
Out of stock

15

BOLT

01547-0645A

2
Out of stock

16

PIN

04211-09149

2
Out of stock

17

GAUGE,OIL LEVEL

11971-14F00

1
Out of stock

18

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

19

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

20

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

21

PLUG (16X8)

09248-16012

1
Out of stock

22

GASKET (16X22X2)

09168-16002

1
Out of stock
