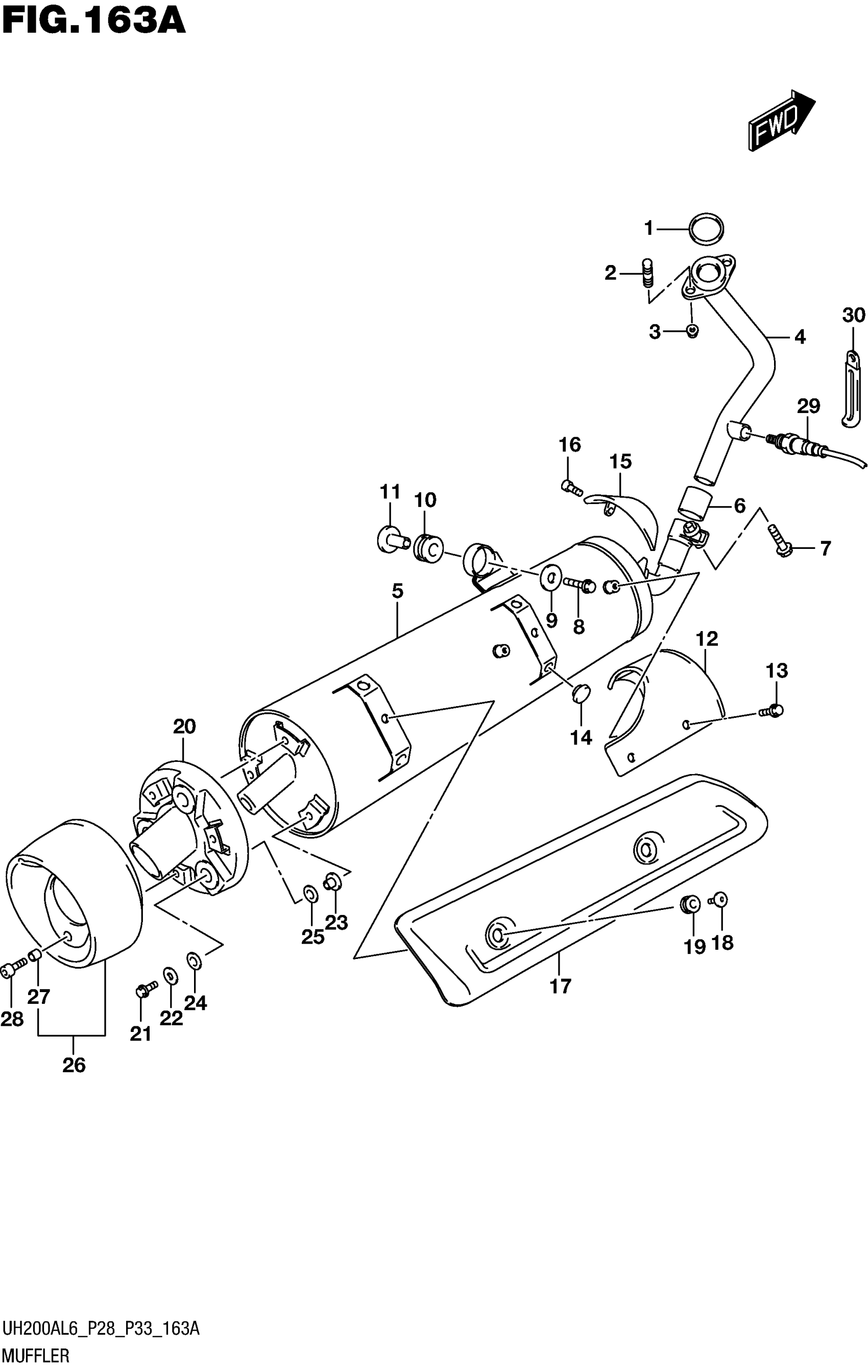

Suzuki UH200AL6 (2016) MUFFLER (UH200AL6 P28) Diagram

#

Description
Price

1

GASKET This part replaces 14181-46E00.

14181-46E10

$7.22

2

STUD BOLT

01421-0820A

$1.91

3

NUT

08316-1008A

$2.45

4

PIPE, EXHAUST

14150-03H51

Unavailable

5

BODY,MUFFLER This part replaces 14310-03H70.

14310-03H71

$1,216.13

6

CONNECTOR, MUFFLER

14771-03H50

$26.38

7

BOLT

01550-0840B

$4.10

8

BOLT (8X35)

01550-0835A

$3.04

9

WASHER (8.5X38X1.6)

09160-08143

$2.62

10

CUSHION

09320-14015

$13.93

11

SPACER

09180-10161

$9.45

12

GUARD,MUF HEAT

14730-03H00

$18.60

13

BOLT

01550-0610A

$1.97

14

CUSHION

09321-10045

Unavailable

15

COVER, MUFFLER FRONT

14750-03H40

$26.22

16

BOLT

07130-0612A

$2.50

17

COVER,MUF

14781-03H50

$65.12

18

SCREW

09139-06199

$3.93

19

CUSHION

09320-08088

$8.77

20

STAY, REAR COVER

14760-03H40

Unavailable

21

BOLT

01550-0620A

$1.97

22

WASHER (6.5X18X1.0)

09160-06028

$1.49

23

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

24

CUSHION

09320-08080

$9.45

25

CUSHION

09320-08081

$8.55

26

COVER,MUF RR

14790-03H50

$41.05

27

.SPACER (6.5X9X8)

09180-06261

$1.91

28

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

29

SENSOR, OXYGEN

18213-03H01

Unavailable

30

CLAMP (L:45)

09404-06429

$1.83
