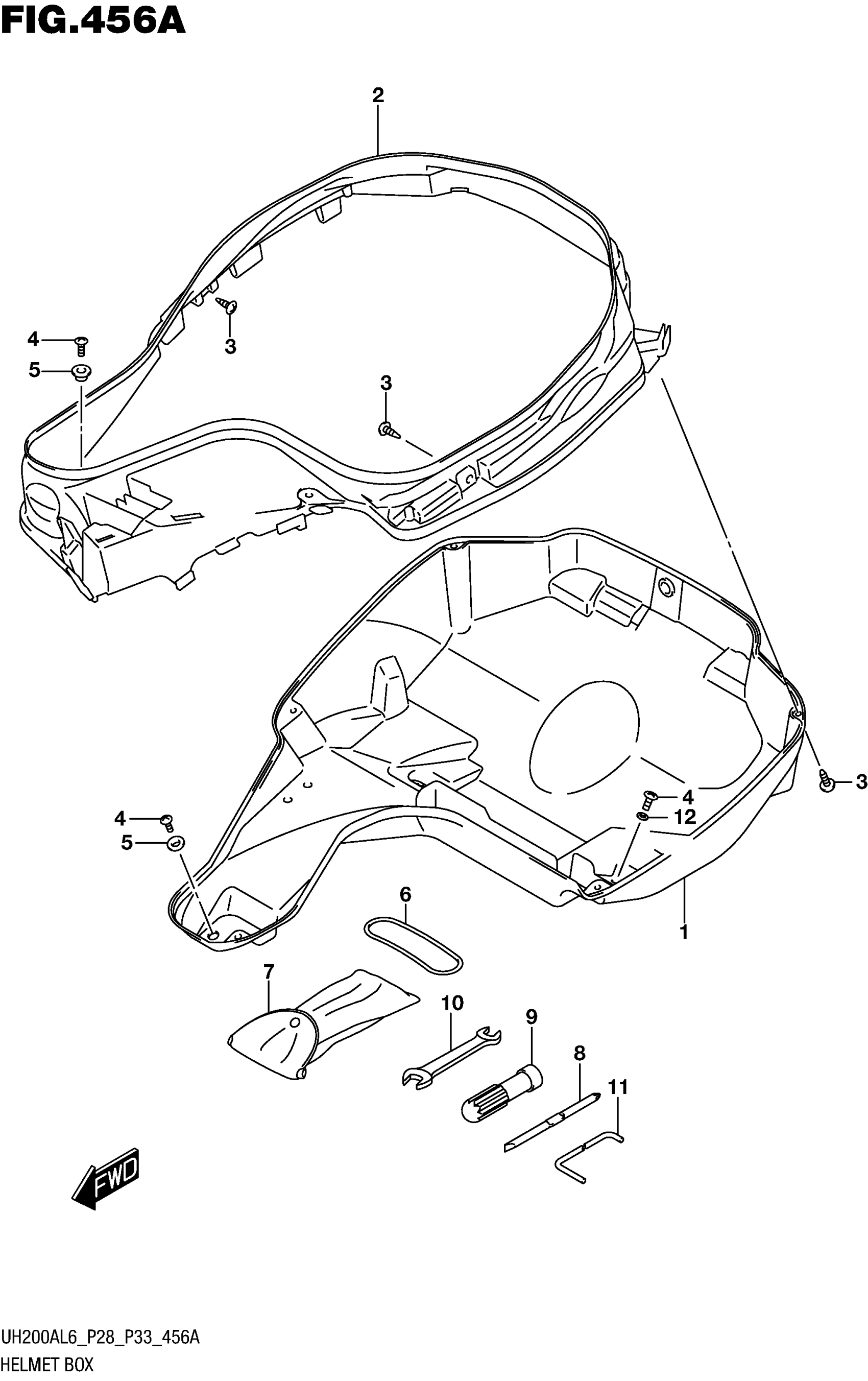

Suzuki UH200AL6 (2016) HELMET BOX Diagram

#

Description

Price

1

BOX, HELMET LOWER

92211-12JA0

Unavailable

2

BOX, HELMET UPPER

92221-12JA1

Unavailable

3

SCREW

03541-0516A

$1.49

4

SCREW

02142-0616A

$1.49

5

WASHER This part replaces 09169-06031.

09169-06041

$2.20

6

O RING (D:3.5,ID:56.5)

09280-57003

Unavailable

7

BAG,TOOL

96511-12JA0

Unavailable

8

DRIVER

09814-00L01

Unavailable

9

GRIP,DRIVER

09814-00L02

Unavailable

10

SPANNER,OPEN (10X12)

96513-12JA0

Unavailable

11

ROD,TOOL

09816-00177

Unavailable

12

WASHER

09160-06019

$1.49
