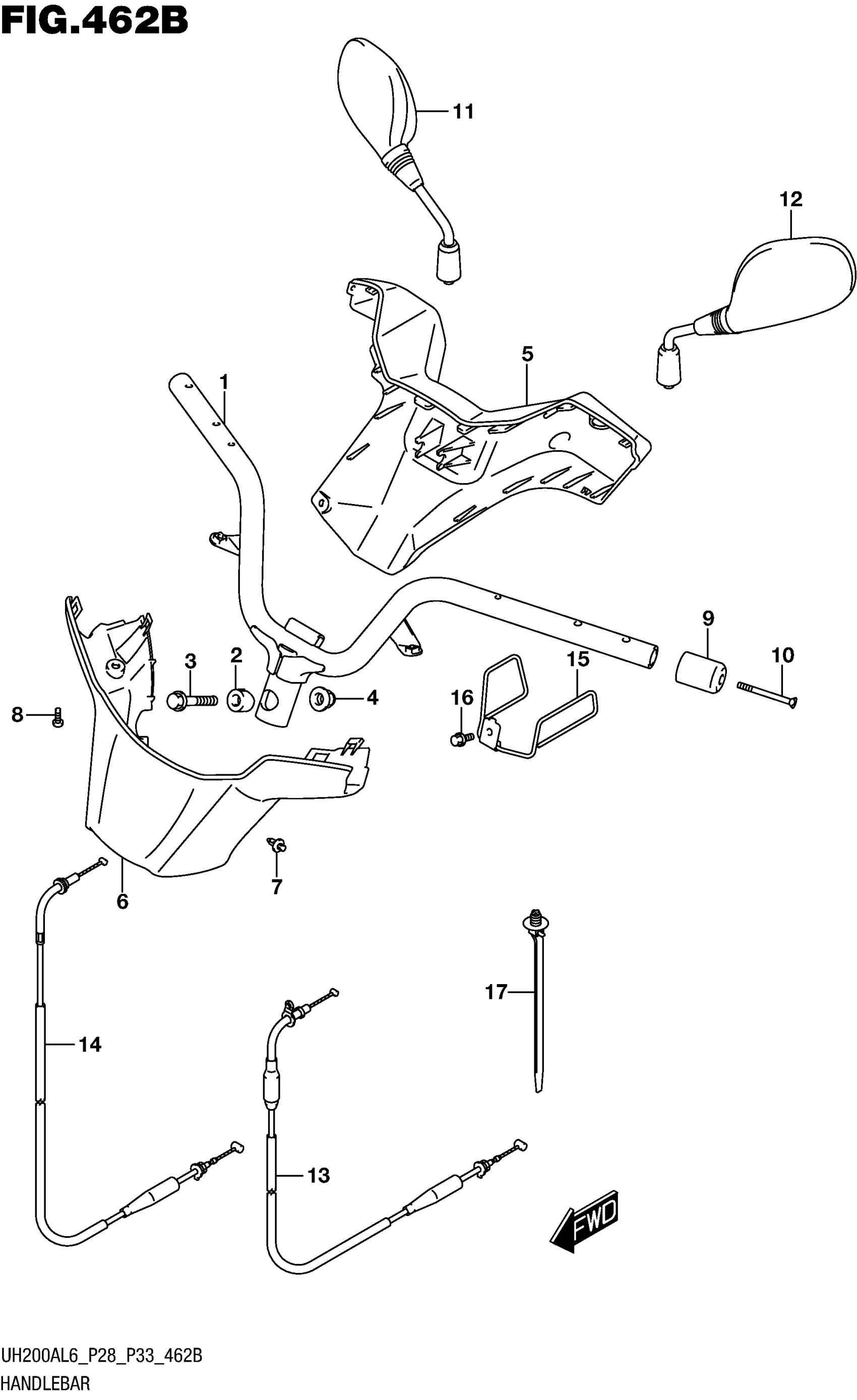

Suzuki UH200AL6 (2016) HANDLEBAR (UH200AL6 P33) Diagram

#

Description
Price

1

HANDLEBAR

56110-12J10

$123.45

2

STOPPER,HANDLEBAR

51358-09G00

Unavailable

3

BOLT (10X48)

09103-10126

$4.50

4

NUT

08319-3110A

$2.73

5

COVER, HANDLE UPPER (BLACK)

56311-12JA1-291

Unavailable

6

COVER, HANDLE LOWER (BLACK)

56321-12JA0-291

Unavailable

7

CLIP (BLACK)

09409-06314-5PK

$2.78

8

SCREW

02142-0512A

$1.49

9

BALANCER

56278-12J01

$15.23

10

SCREW

02122-0660B

$3.04

11

MIRROR ASSY, REAR VIEW RH

56500-12J11

Unavailable

12

MIRROR ASSY, REAR VIEW LH

56600-12J11

Unavailable

13

CABLE ASSY, THROTTLE NO.1

58300-12J00

Unavailable

14

CABLE ASSY, THROTTLE NO.2

58300-12J10

Unavailable

15

GUIDE,THROTTLE CABLE

58620-12J10

Unavailable

16

BOLT

01550-0612A

$1.97

17

CLAMP (L:170)

09407-17403

$4.91
