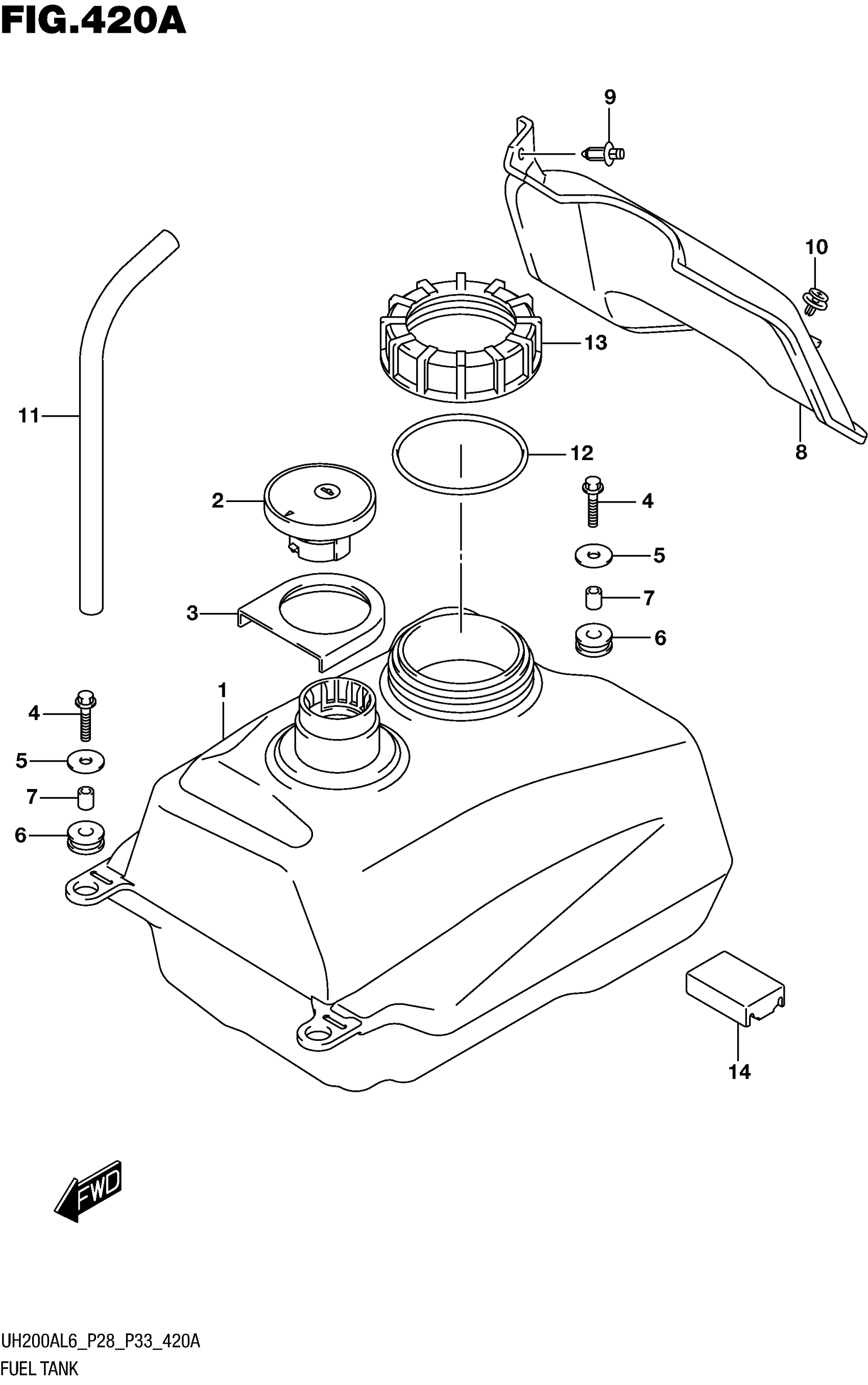

Suzuki UH200AL6 (2016) FUEL TANK (UH200AL6 P28) Diagram

#

Description
Price

1

TANK, FUEL

44110-12JC0

Unavailable

2

CAP ASSY, FUEL TANK

44200-13840

Unavailable

3

RUBBER,FUEL TANK INLET

44261-12J00

Unavailable

4

BOLT

01550-0625A

$2.01

5

WASHER, FUEL TANK (6.5X24X1.6

44512-12J00

Unavailable

6

CUSHION This part replaces 09320-10029.

09320-10080

$6.29

7

SPACER (6.5X10X11)

09180-06288

$2.10

8

SHIELD,FUEL TANK HEAT

44191-12J10

Unavailable

9

CLIP (BLACK)

09409-06314-5PK

$2.80

10

CLIP,FAN SHROUD

17795-65D00

Unavailable

11

HOSE(7X11X600) | 600->350 This part replaces 09352-70113-600.

09352-70119-600

$9.85

12

PACKING,FUEL PUMP

44596-03H00

$63.87

13

RETAINER,FUEL PUMP

44597-03H00

Unavailable

14

CUSHION,FUEL TANK LWR

44541-03H00

Unavailable
