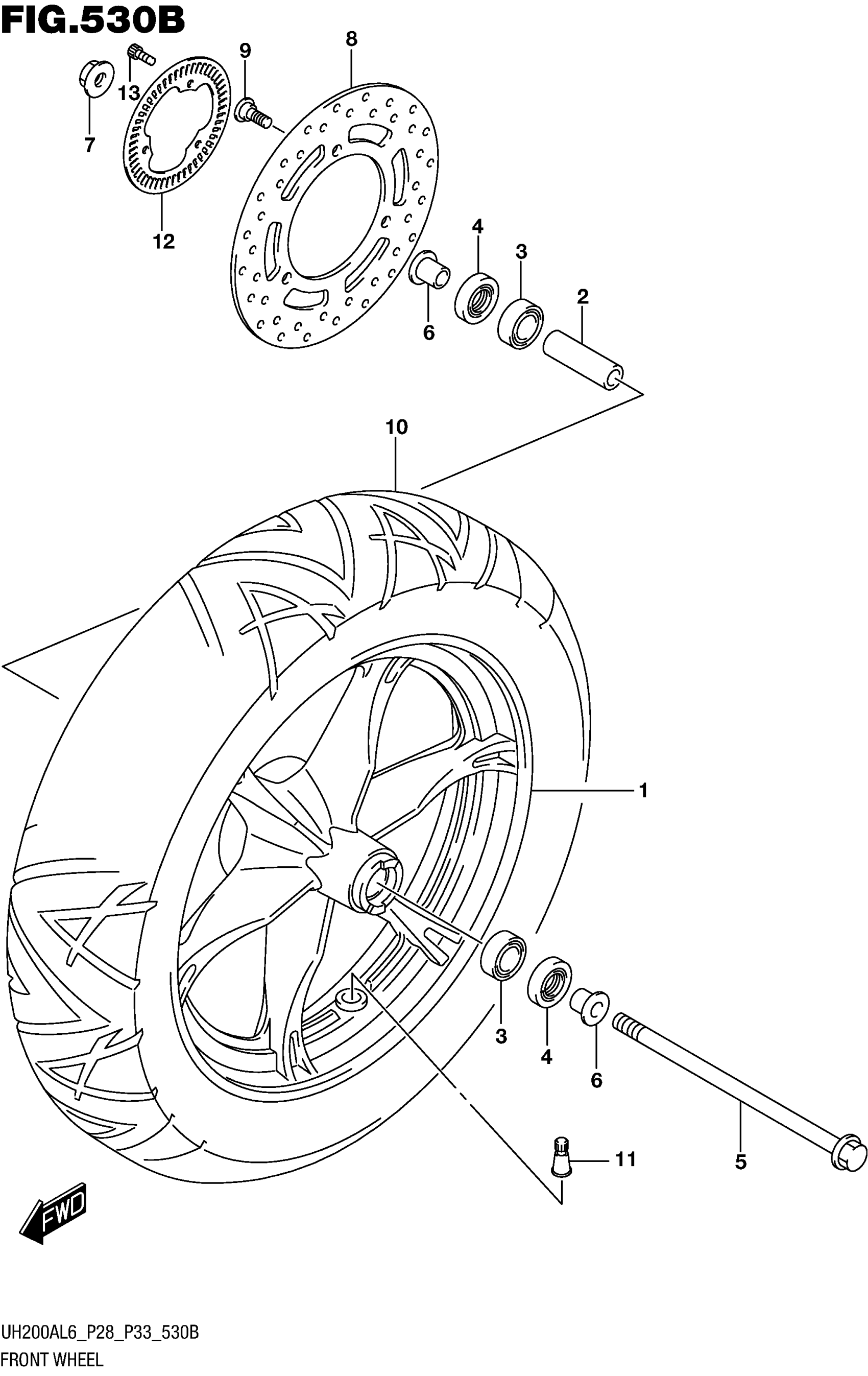

Suzuki UH200AL6 (2016) FRONT WHEEL (UH200AL6 P33) Diagram

Description

Price

1-1

WHEEL, FRONT (13M/CXMT2.50)

54111-12J00-019

$598.57

1-1

(BLACK)

54111-12J00-019

$598.57

1-2

WHEEL, FRONT (13M/CXMT2.50) | ENKEI

54111-12J20-019

Unavailable

1-2

(BLACK)

54111-12J20-019

Unavailable

SPACER,FR HUB BEARING

54731-03H10

$8.58

BEARING

08133-62017

$16.90

SEAL,OIL (18X32X7)

09285-18002

$6.88

SPACER,FR HUB BEARING

54711-12J00

Unavailable

SPACER,FRONT AXLE RH

54741-03H00

Unavailable

NUT

08319-3112A

$3.38

DISC, FRONT BRAKE

59211-12J00

$142.88

BOLT (8X21)

59218-09G10

$6.37

TIRE,FRONT | MB99 T/L IRC This part replaces 55110-03H21.

55110-03H22

$174.43

VALVE ASSY,WHEEL RIM (TR412)

43130-24A60

$8.95

RING, SPEED SENSOR FR (50T)

54162-44H00

$26.80

BOLT

07130-0512A

$2.19
