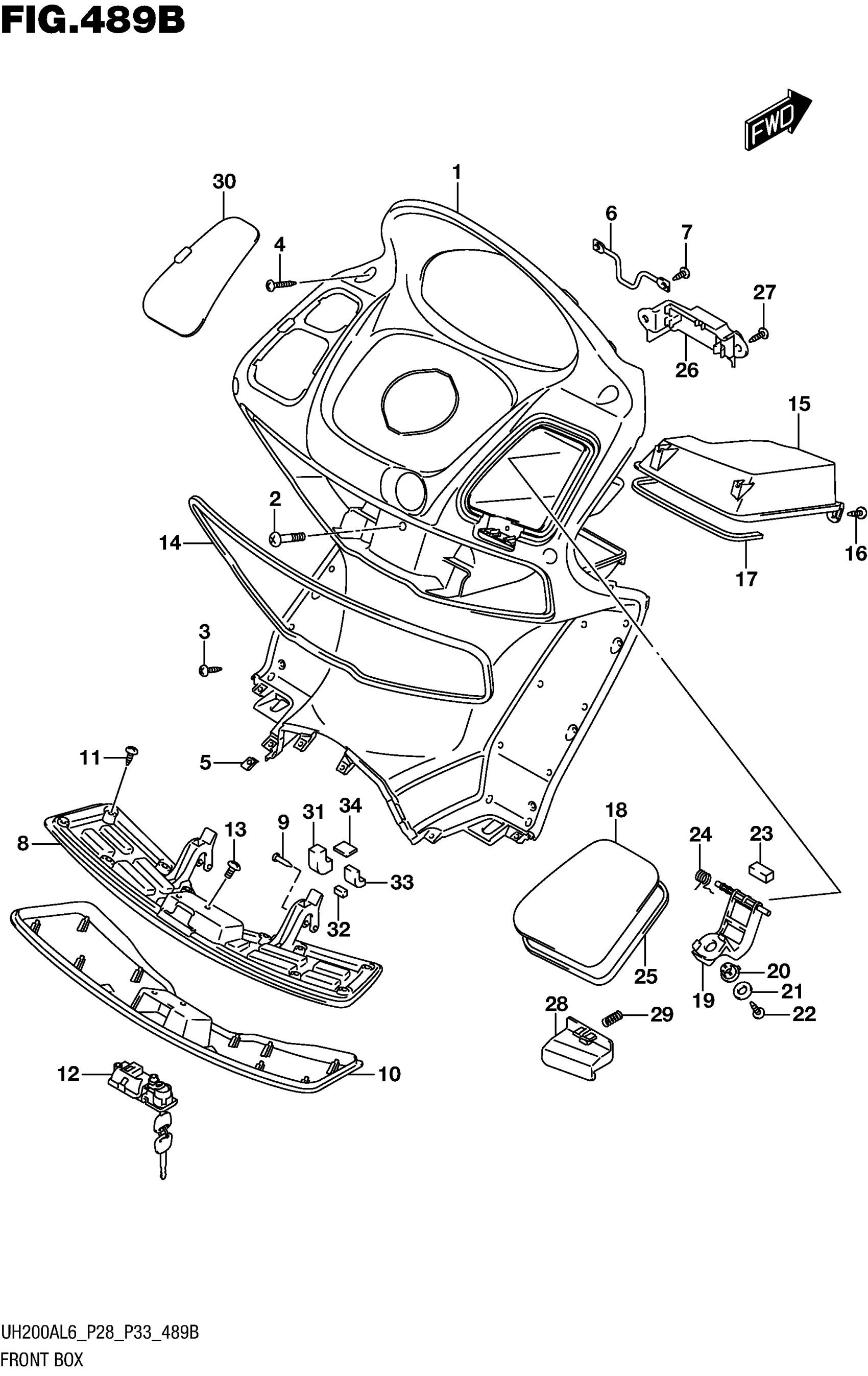

Suzuki UH200AL6 (2016) FRONT BOX (UH200AL6 P33) Diagram

#

Description
Price

1

BOX, FRONT (BLACK) This part replaces 92111-12JB0-291.

92111-12JD0-291

$234.27

2

SCREW,FRONT BOX (6X12)

92124-12JA0

$2.33

3

SCREW

03541-0516A

$1.49

4

SCREW

03541-0525B

$2.32

5

NUT

09148-05038

$1.97

6

STRIKER,FR BOX

92171-12JA0

Unavailable

7

SCREW

03541-0512A

$1.49

8

LID, INNER

92122-12JA0

Unavailable

9

PIN

73423-50G00

$5.10

10

LID, OUTER (BLACK)

92121-12JA0-291

Unavailable

11

SCREW

03541-0412A

$1.49

12

LOCK SET,FRONT BOX This part replaces 92100-12820.

92100-12821

$48.48

13

SCREW

02142-0512A

$1.49

14

CUSHION,FR BOX NO.1

92114-12JA0

$6.70

15

BOX, INNER (BLACK)

92123-12JB0-291

$22.12

16

SCREW

03541-0516A

$1.49

17

CUSHION, FRONT BOX NO.2

92141-12JA0

$4.58

18

LID, FRONT PANEL (BLACK)

92142-12JA0-291

Unavailable

19

ARM, LID

92148-12JA0

$17.65

20

STOPPER, FRONT PANEL LID

92149-12JA0

$4.82

21

CUSHION

09320-09004

$3.03

22

SCREW (5X16)

09132-05041

$2.06

23

CUSHION,FR PANEL LID NO.1

92146-12JA0

$5.47

24

SPRING,FR PANEL LID NO.1

92145-03H00

$6.52

25

CUSHION,FR PANEL LID NO.2

92147-12JA0

Unavailable

26

RETAINER,FRONT PANEL

92158-12JB0

Unavailable

27

SCREW

03541-0516B

$1.78

28

LOCK,FR PANEL BOX (BLACK)

92143-12JB0-291

$10.97

29

SPRING

92144-14G01

$5.47

30

LID,FR BOX UPR,L (BLACK) This part replaces 92112-12JA0-291.

92112-12JB0-291

$11.60

31

CUSHION,FR BOX NO.3

92151-12JA0

$5.38

32

CUSHION, BOX NO.4

92152-12JA0

$4.67

33

CUSHION,FR BOX NO.5

92153-12JA0

$4.82

34

CUSHION,FR BOX NO.6

92154-12JA0

$4.58
