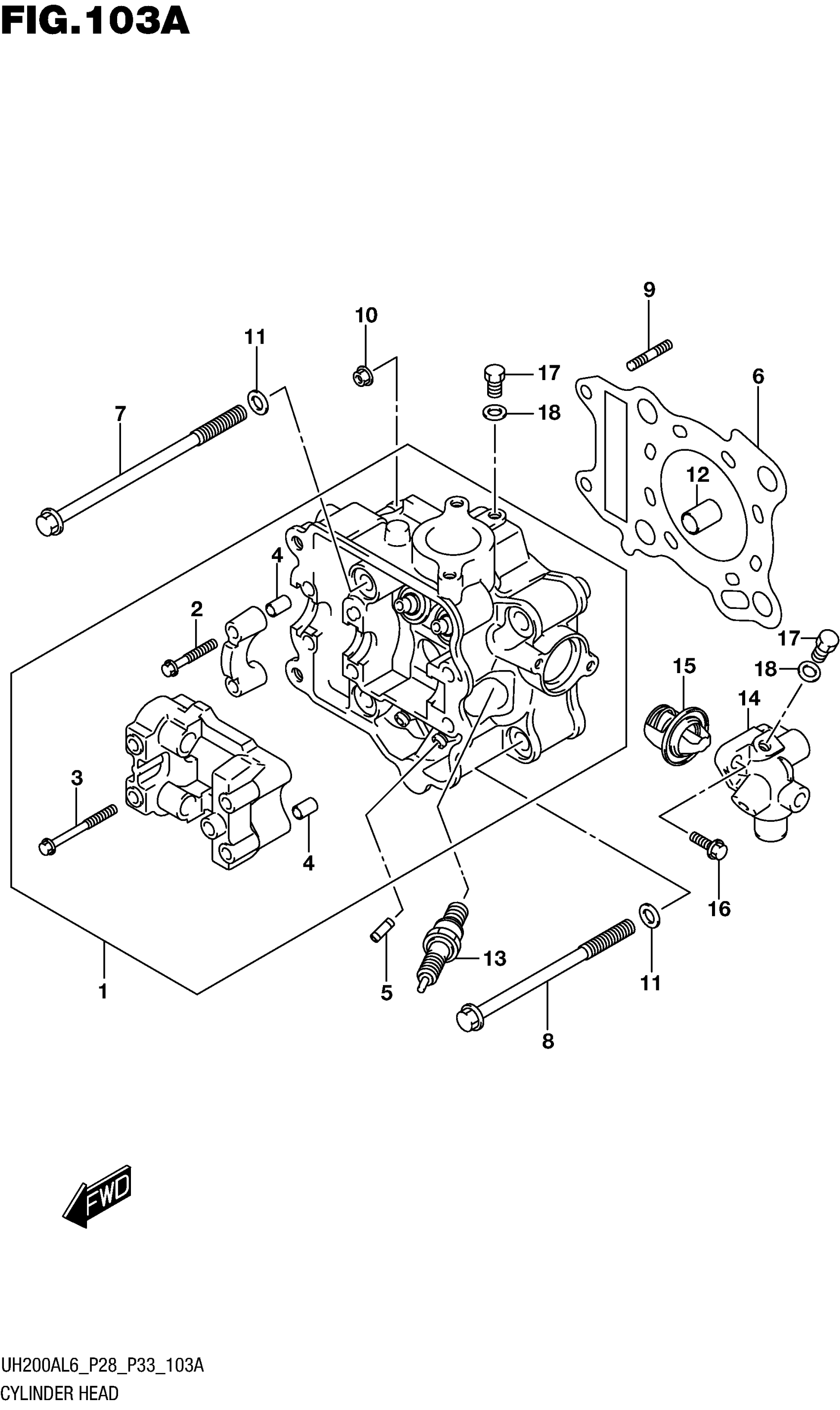

Suzuki UH200AL6 (2016) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-03HB0

Unavailable

2

BOLT (6X39)

09103-06026

$1.98

3

.BOLT (6X60)

09103-06064

$2.12

4

.PIN (8X11)

09206-08001

$1.78

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$39.23

6

GASKET, CYLINDER HEAD

11141-03H00

Unavailable

7

BOLT (10X175)

09103-10276

$16.01

8

BOLT (L:145)

09103-10451

$17.65

9

STUD BOLT

01421-0625A

$1.99

10

NUT

08316-1006A

$2.19

11

WASHER (10.5X19X2)

09160-10082

$1.61

12

PIN

04211-13189

$2.19

13-1

SPARK PLUG (NGK, CR7EK)

09482-00414

$12.50

13-2

SPARK PLUG (DENSO, U22ETR)

09482-00415

Unavailable

13-3

SPARK PLUG (NGK, CR9EK) | OPT

09482-00410

$11.59

13-4

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$6.09

13-5

SPARK PLUG (NGK, CR8EK) | OPT

09482-00412

$10.62

13-6

SPARK PLUG (DENSO, U24ETR) | OPT

09482-00413

$13.17

14

COVER,THERMOSTAT

17661-14G00

Unavailable

15

THERMOSTAT, WATER

17670-08D30

Unavailable

16

BOLT

01547-0620A

$2.03

17

BOLT, THERMOSTAT COVER

17568-50F00

$4.76

18

GASKET

09168-06026

$3.10
