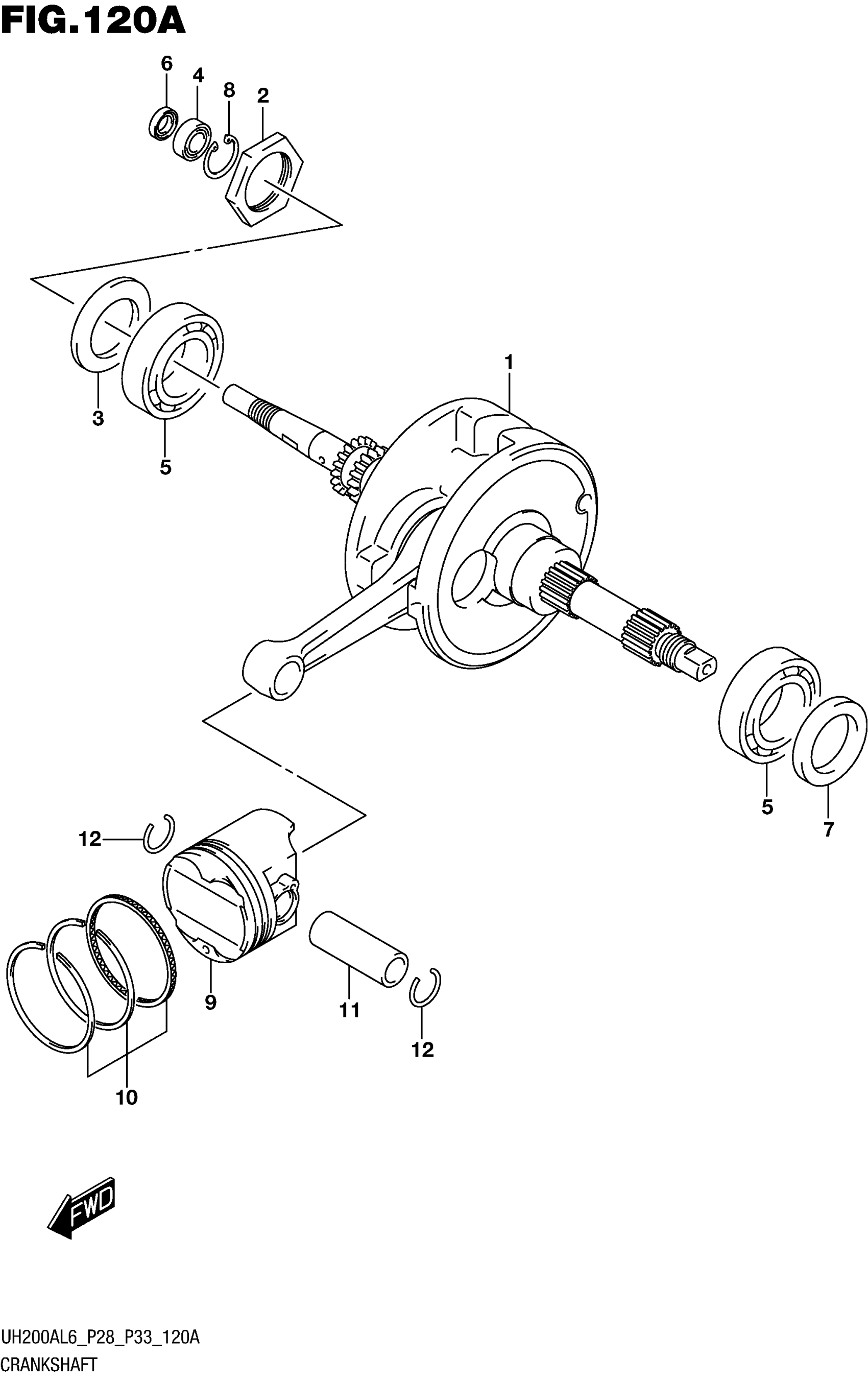

Suzuki UH200AL6 (2016) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-12J50

$491.38

2

NUT

12664-24B01

$15.42

3

SHIM (35X57X1) | RH

09181-35024

$6.82

4

BEARING | RH

08153-60017

$30.16

5

BEARING (35X72X17)

09262-35038

$46.10

6

SEAL,OIL (12X21X7) | RH

09282-12L01

$12.55

7

OIL SEAL (34X52X6) | LH

09283-34L01

$27.70

8

CIRCLIP

08331-41289

$2.68

9

PISTON

12111-03H60-0F0

$93.37

10

RING SET, PISTON

12140-06H10

Unavailable

11

PIN,PISTON

12151-17C20

$14.50

12

CIRCLIP

09381-19006

$2.02
