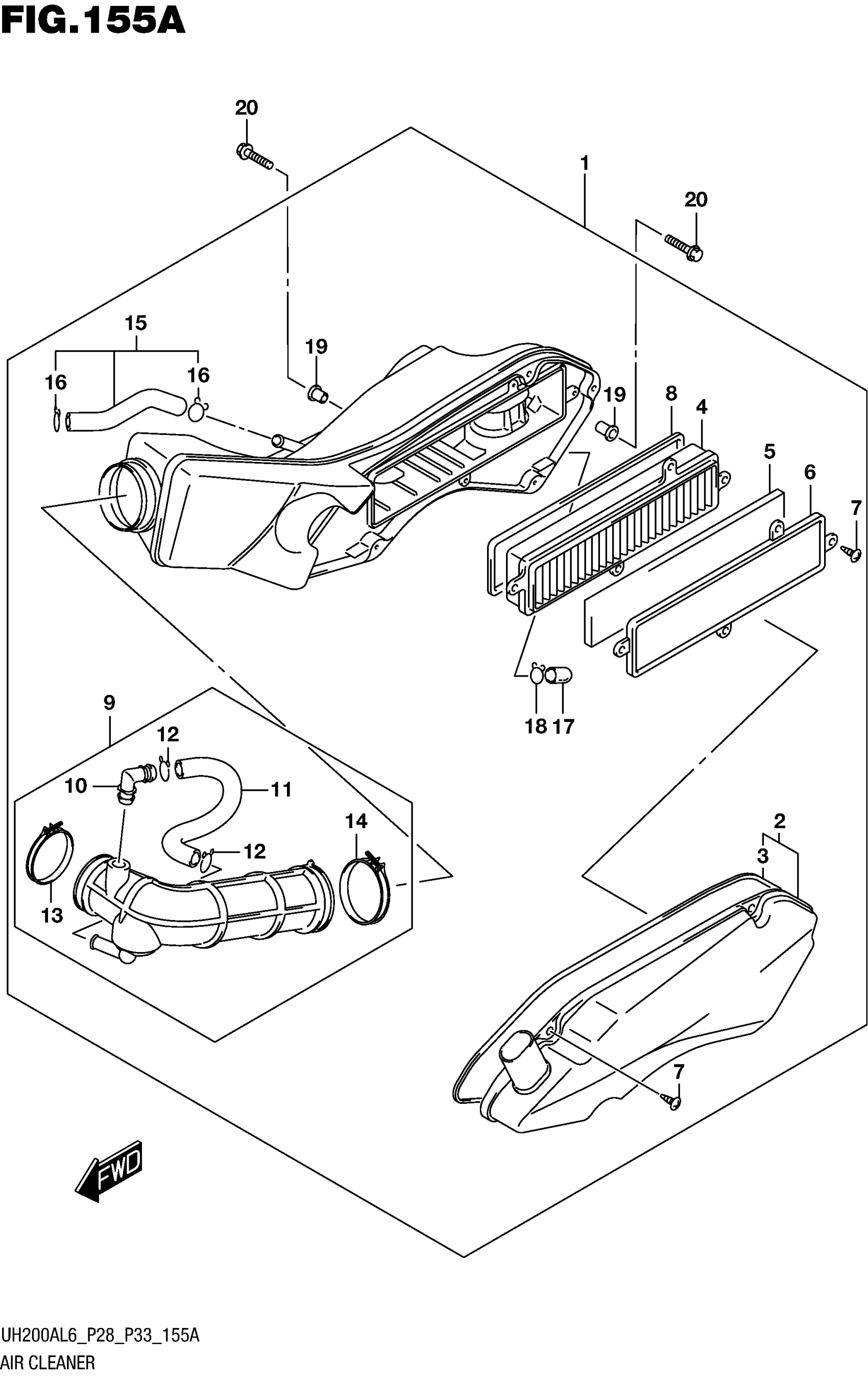

Suzuki UH200AL6 (2016) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-03H30

Unavailable

2

.CAP

13740-03H30

$30.23

3

..GASKET

13747-03H30

Unavailable

4

.FILTER

13780-03H30

$43.12

5

PREFILTER This part replaces 13782-03H30.

13782-03H50

$10.66

6

.HOLDER

13791-03H30

Unavailable

7

.SCREW

03141-0516B

$1.93

8

GASKET This part replaces 13746-03H30.

13746-03H50

$3.89

9

.TUBE, OUTLET

13880-03H30

Unavailable

10

JOINT This part replaces 13858-14D10.

13858-14D20

$7.22

11

..HOSE, CHAMBER

13884-03H30

Unavailable

12

..CLIP

09401-14301

$2.35

13

..CLAMP

09402-50208

$4.77

14

CLAMP This part replaces 09402-62207.

09402-62208

$6.58

15

.TUBE, BREATHER

13850-03H30

Unavailable

16

..CLIP

09401-14301

$2.35

17

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

18

.CLIP

09401-14301

$2.35

19

.COLLAR

13912-20E00

Unavailable

20

BOLT

01550-0625A

$1.97
