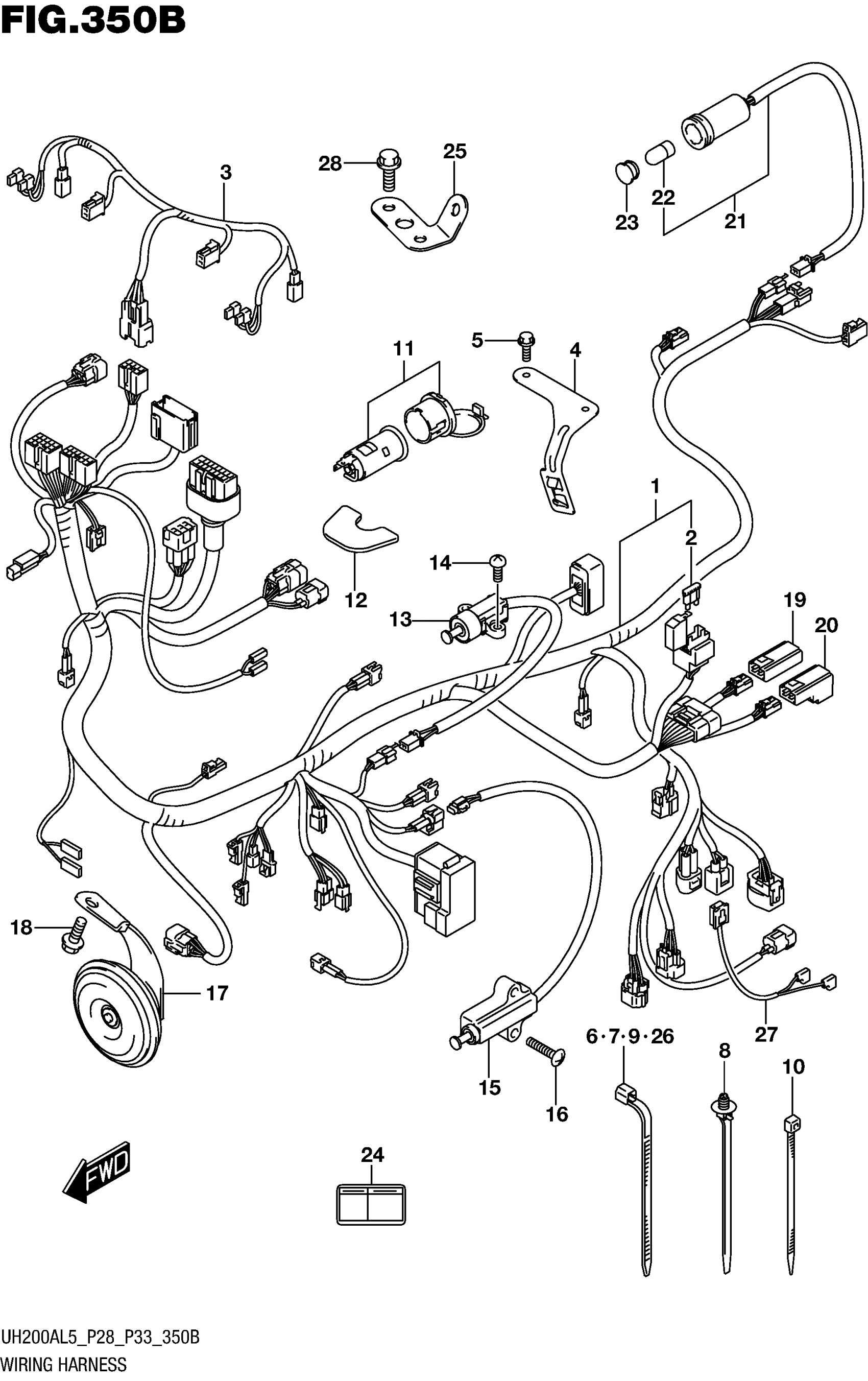

Suzuki UH200AL5 (2015) WIRING HARNESS (UH200AL5 P33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-12J80

$433.52

2

FUSE (30A)

09481-30101

$2.26

3

HARNESS,WIRING NO.2

36620-12J00

Unavailable

4

BRACKET, FUSE BOX

36710-12J00

Unavailable

5

SCREW

02162-0612A

$2.05

6

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:190)

09407-19401

$3.05

8

CLAMP (L:154)

09407-17403

$4.91

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP (L:145)

09407-14407

$3.57

11

TERMINAL, POWER SOURCE (GRAY)

39410-49F00-P4Z

Unavailable

12

CUSHION, POWER SOURCE

92117-12J00

Unavailable

13

SWITCH ASSY, TRUNK BOX

37980-12J00

Unavailable

14

SCREW

02112-0520A

Unavailable

15

SWITCH ASSY, SIDE STAND

37840-49F00

Unavailable

16

SCREW

02142-0620A

$1.49

17

HORN ASSY

38500-12J00

Unavailable

18

BOLT (8X12)

01550-0812A

$2.32

19

RELAY ASSY

31800-43E02

$51.40

20

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

21

LAMP ASSY, FRONT POSITION

36210-12J00

Unavailable

22

BULB (12V, 3.4W)

09471-12028

$1.99

23

LENS

36212-12J00

Unavailable

24

LABEL,MAX AMP

38852-49F10

Unavailable

25

BRACKET, WIRING HARNESS CLAMP

36672-12J00

Unavailable

26

CLAMP (L:110)

09407-11401

$2.63

27

WIRE, IGNITION COIL

36852-12J10

Unavailable

28

BOLT

01550-0625A

$1.97
