Description

Price

1

SHAFT,DRIVE (NT:16)

24131-03H10

Unavailable

2

SHAFT,IDLE

24151-03H50

Unavailable

3

GEAR,IDLE DRIVEN

24381-03H20

Unavailable

4

CIRCLIP

08331-3120A

$2.03

5

WASHER | LH

08211-15251

$1.67

6

BEARING

08113-62027

$14.40

7

OIL SEAL (25X37X6)

09283-25097

$11.92

8

BEARING (20X47X14) | LH

09262-25126

$22.30

9

BEARING (15X42X13) | RH

09262-15027

$23.39

10

SHAFT, AXLE (NT:38)

24140-03H50

$178.23

11

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.89

12

BEARING | LH

08113-63030

$23.65

13

BEARING (22X50X14) | RH

09262-22036

Unavailable

14

RETAINER,DRIVE SHAHFT BEARING

24751-07900

Unavailable

15

SCREW (6X16)

09126-06014

$2.06

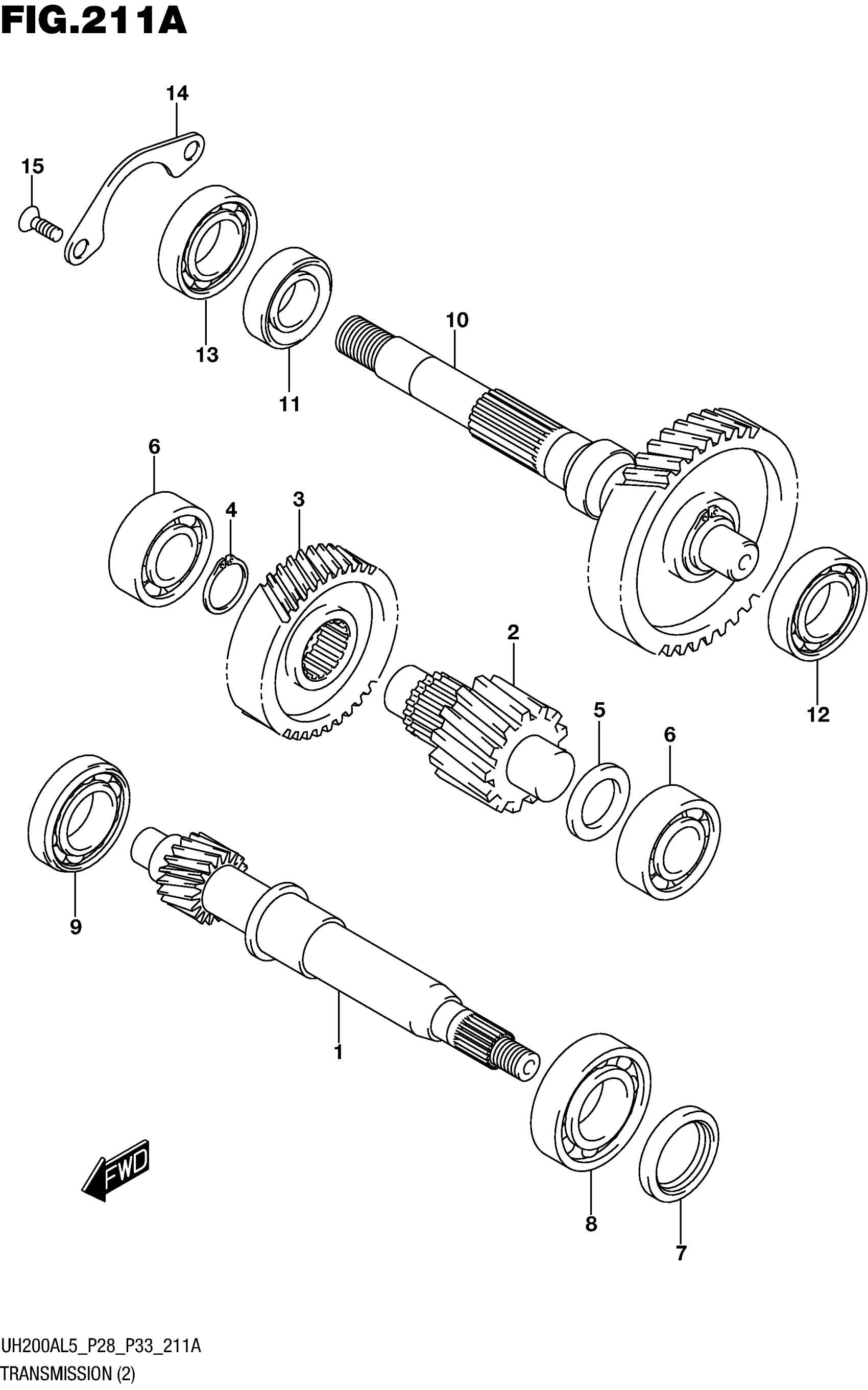

Suzuki UH200AL5 (2015) TRANSMISSION (2) Diagram

SHAFT,DRIVE (NT:16)

SHAFT,IDLE

GEAR,IDLE DRIVEN

CIRCLIP

WASHER | LH

BEARING

OIL SEAL (25X37X6)

BEARING (20X47X14) | LH

BEARING (15X42X13) | RH

SHAFT, AXLE (NT:38)

SEAL (29X42X6) This part replaces 64841-28E00.

BEARING | LH

BEARING (22X50X14) | RH

RETAINER,DRIVE SHAHFT BEARING

SCREW (6X16)
