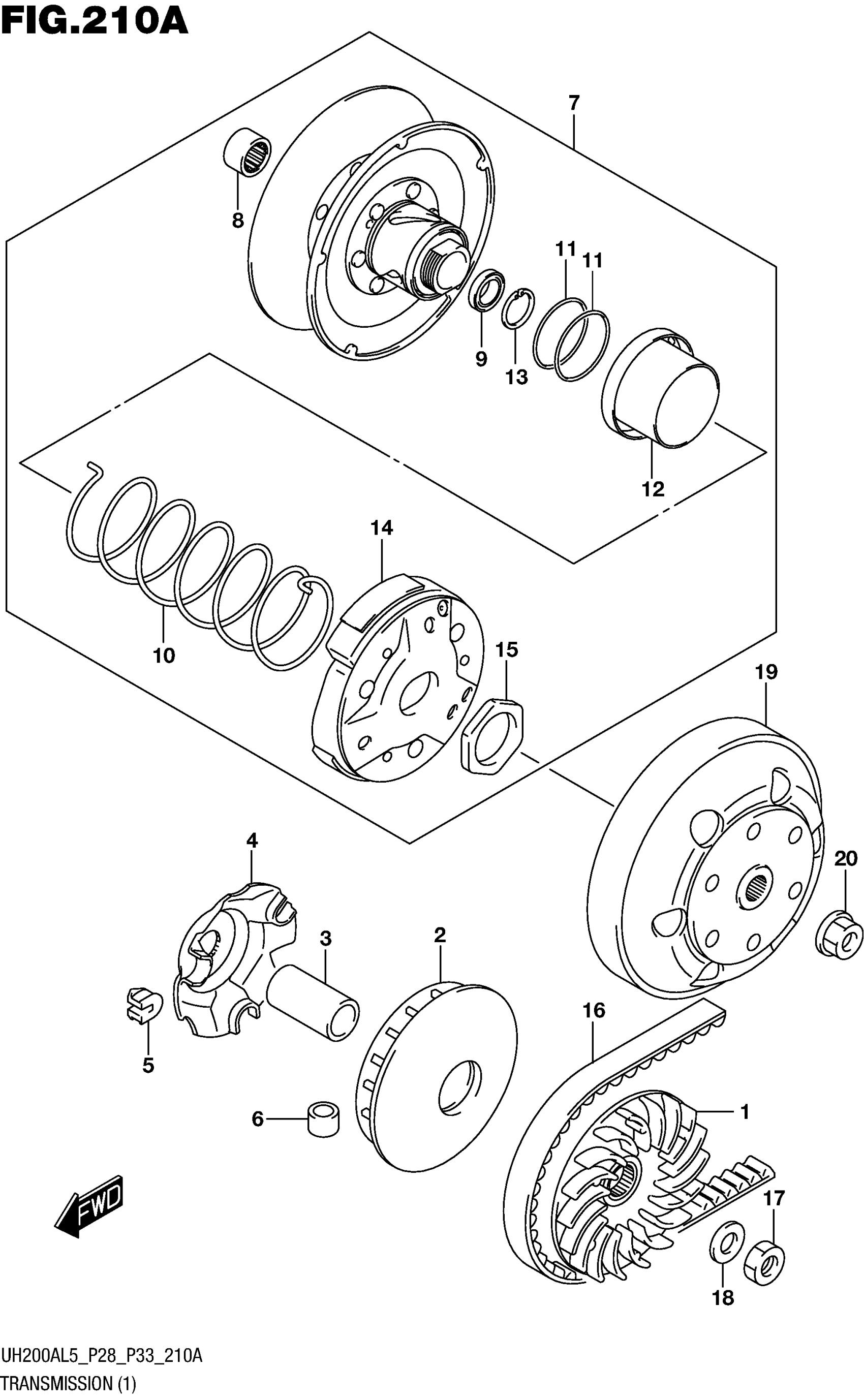

Suzuki UH200AL5 (2015) TRANSMISSION (1) Diagram

#

Description
Price

1

FACE, FIXED DRIVE

21110-03H00

$81.38

2

FACE, MOVABLE DRIVE This part replaces 21120-03H00.

21120-03H20

$100.68

3

SPACER, MOVABLE DRIVE

21125-03H00

$20.57

4

PLATE, MOVABLE DRIVE

21431-03H00

$18.10

5

DAMPER, MOVABLE DRIVE PLATE

21481-03H00

$6.55

6

ROLLER, MOVABLE DRIVE

21650-03H60

$11.89

7

FACE, FIXED DRIVEN

21200-03H50

$486.15

8

BEARING, FIXED DRIVEN RH

21214-03H50

Unavailable

9

BEARING, FIXED DRIVEN LH

21215-03H50

Unavailable

10

SPRING, MOVABLE DRIVEN

21243-03H50

Unavailable

11

O RING, MOVABLE DRIVEN

21245-03H50

Unavailable

12

SEET, MOVABLE DRIVEN

21471-03H50

$16.60

13

CIRCLIP

21216-03H50

Unavailable

14

CLUTCH ASSY, SHOE

21501-03H50

$135.73

15

NUT, SHOE CLUTCH

21518-03H00

$5.77

16

V BELT

27601-03H50

$188.85

17

NUT This part replaces 09140-16001.

09140-16005

$3.75

18

WASHER

09164-16005

$2.45

19

HOUSING, CLUTCH

21220-03H50

Unavailable

20

NUT

09159-12068

$2.42
