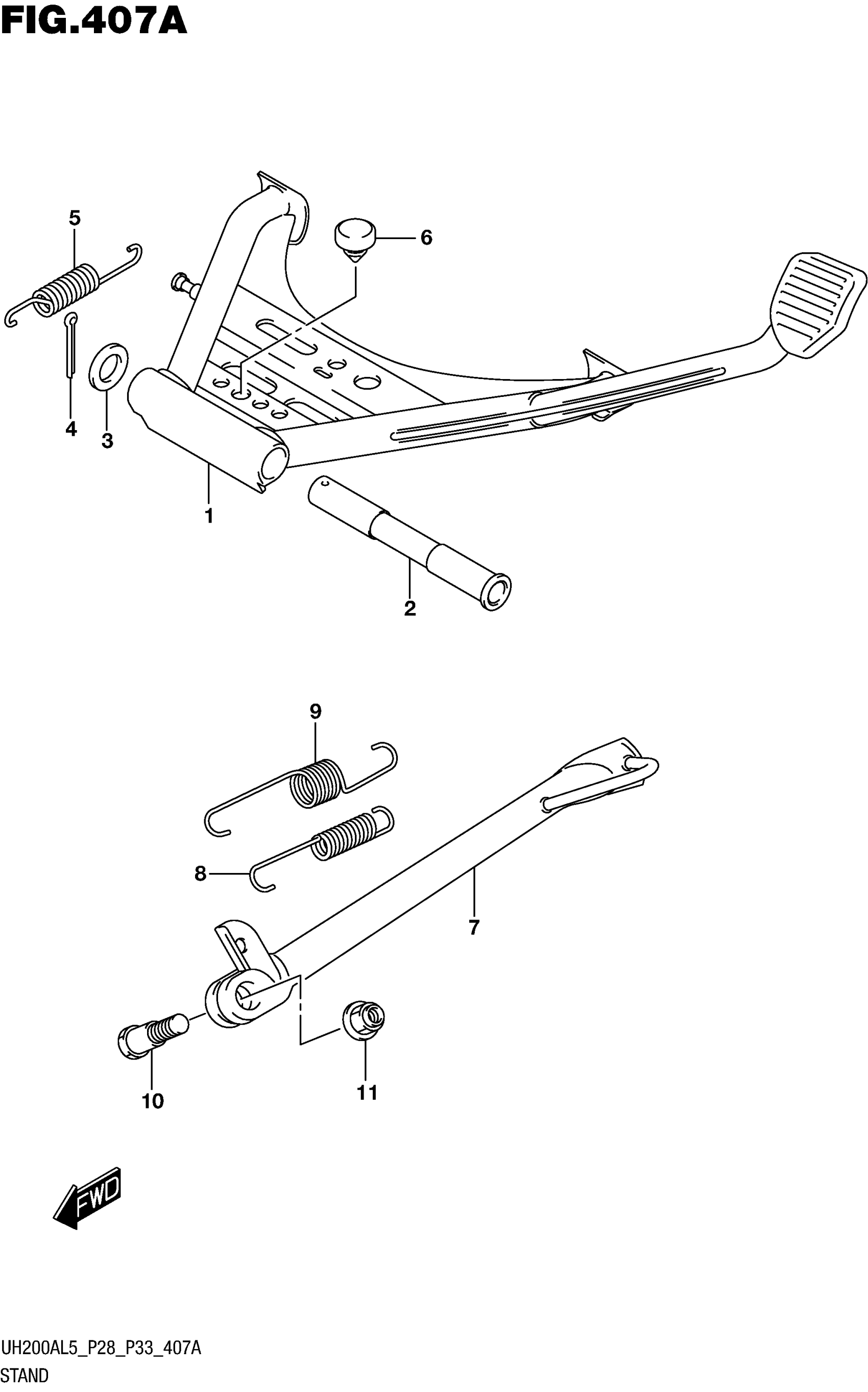

Suzuki UH200AL5 (2015) STAND (UH200AL5 P28) Diagram

#

Description
Price

1

STAND,CENTER This part replaces 42100-12J00.

42100-12J02

$94.92

2

SHAFT

42211-12J10

Unavailable

3

WASHER,CENTER STAND

42213-12J00

Unavailable

4

COTTER PIN

04111-3025A

$1.49

5

SPRING

09443-19022

Unavailable

6

CUSHION (11.5X22X20)

09321-10002

$2.22

7

STAND, PROP

42310-12J30

$37.18

8

SPRING,PROP STAND INNER

42421-12J01

Unavailable

9

SPRING,PROP STAND OUTER

42422-12J01

Unavailable

10

BOLT,PROP STAND (10X33)

42341-09G01

Unavailable

11

NUT

08319-3110A

$2.73
