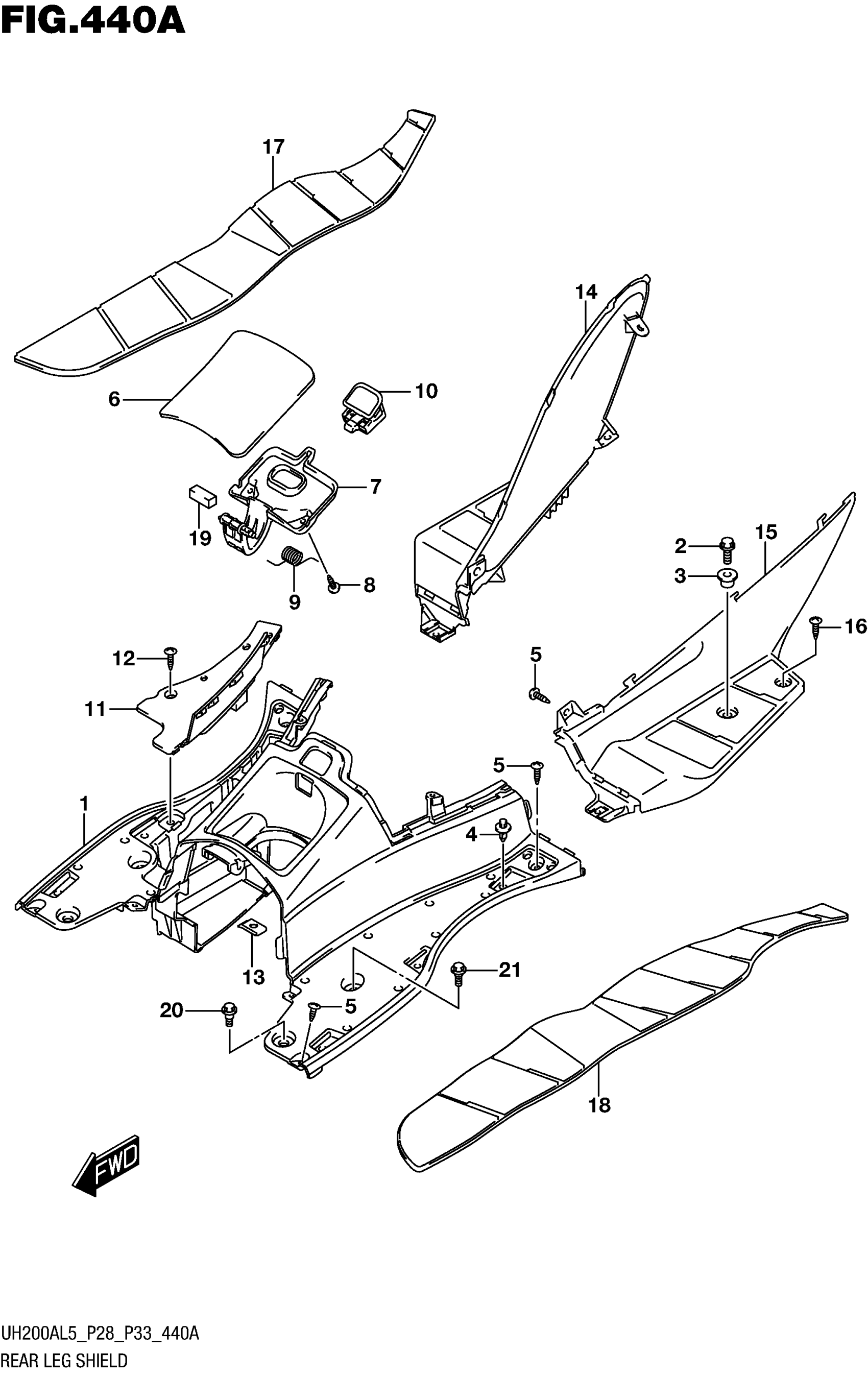

Suzuki UH200AL5 (2015) REAR LEG SHIELD Diagram

#

Description
Price

1

FOOTBOARD, FRONT (BLACK) This part replaces 48121-12JA0-291.

48121-12JB0-291

$129.92

2

BOLT

48124-12JA0

Unavailable

3

SPACER (6.3X10X9.6)

48129-12JA0

$3.97

4

CLIP (BLACK)

09409-08308-5ES

$1.97

5

SCREW

03541-0516A

$1.49

6

LID, FUEL (BLACK)

48125-12JA0-291

Unavailable

7

ARM, FUEL LID

48126-12JA0

Unavailable

8

SCREW

03541-0516A

$1.49

9

SPRING,FUEL LID

92163-03H00

$3.33

10

LOCK ASSY (BLACK)

92180-12JA0-291

Unavailable

11

LID, BATTERY (BLACK) This part replaces 48127-12JA0-291.

48127-12JB0-291

$28.18

12

SCREW

03541-0516A

$1.49

13

NUT

09148-05038

$1.97

14

FOOTBOARD RH (BLACK)

48122-12JA0-291

$31.27

15

FOOTBOARD LH (BLACK)

48123-12JA0-291

$30.63

16

SCREW

03541-0520B

$2.63

17

MAT,FLOOR RH (BLACK) This part replaces 48211-12JA0-291.

48211-12JC0-291

$54.22

18

MAT, FLOOR LH (BLACK)

48221-12JA0-291

Unavailable

19

CUSHION, FUEL LID

48128-12JA0

Unavailable

20

BOLT (6X17.8)

09111-06072

$2.03

21

BOLT (6X14.8)

09111-06102

Unavailable
