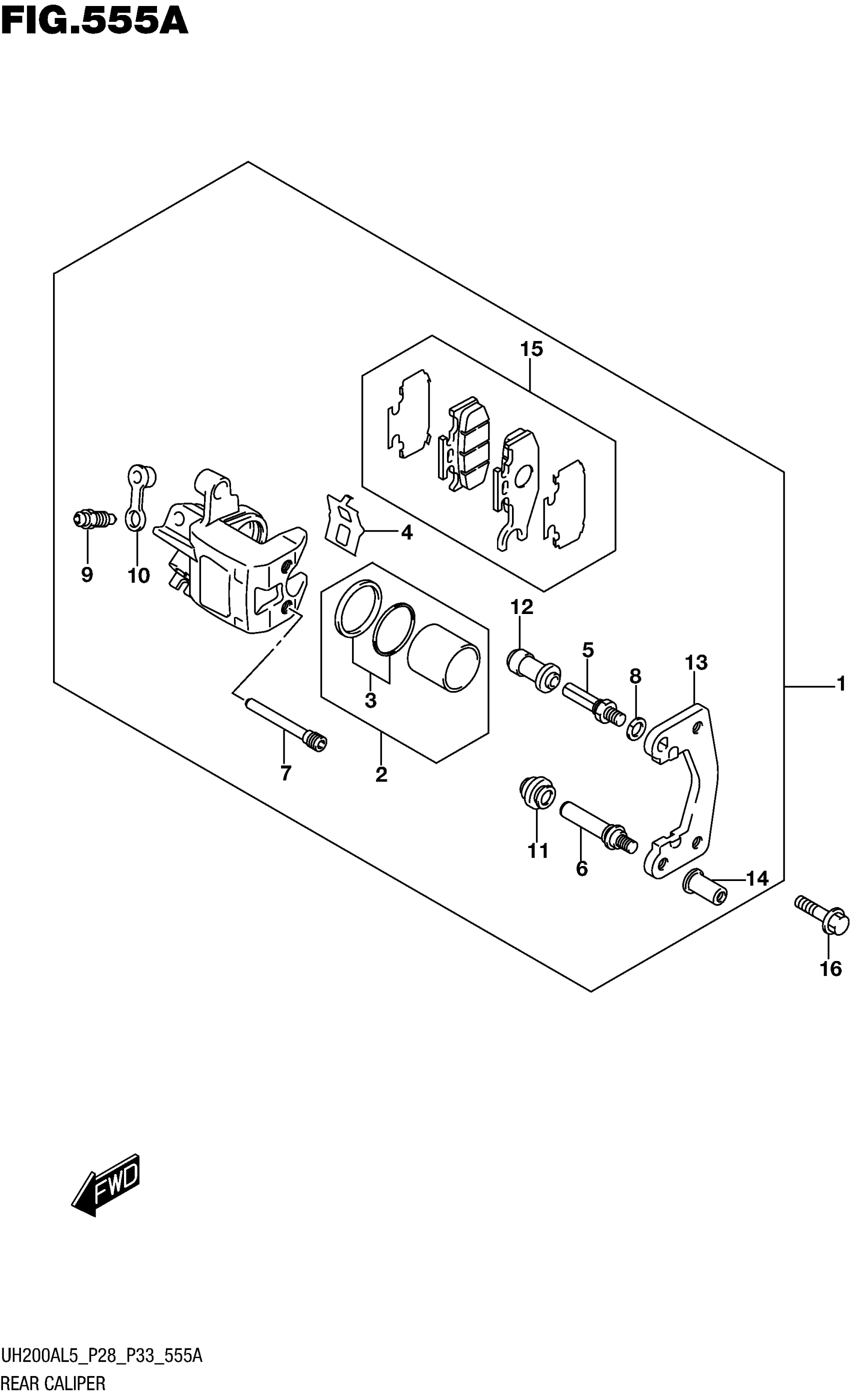

Suzuki UH200AL5 (2015) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-03H30

Unavailable

2

PISTON SET

69100-03830

$41.27

3

SEAL SET, PISTON

59100-38860

$15.55

4

SPRING, PAD

59315-27C10

$13.20

5

PIN

59382-13A00

$7.24

6

PIN

59387-12J00

Unavailable

7

PIN, HANGER

69141-03H00

$14.78

8

WASHER, SPRING

59314-13A00

$2.28

9

BLEEDER

59121-01A00

$7.99

10

CAP, BLEEDER

59122-46H00

$4.17

11

BOOT

59303-14500

$5.06

12

BOOT, BUSH

59386-13A00

$7.28

13

BRACKET, REAR

69151-03H00

Unavailable

14

NUT

59388-03H00

Unavailable

15

PAD SET

69101-03820

$104.45

16

BOLT

07120-0855B

Unavailable
