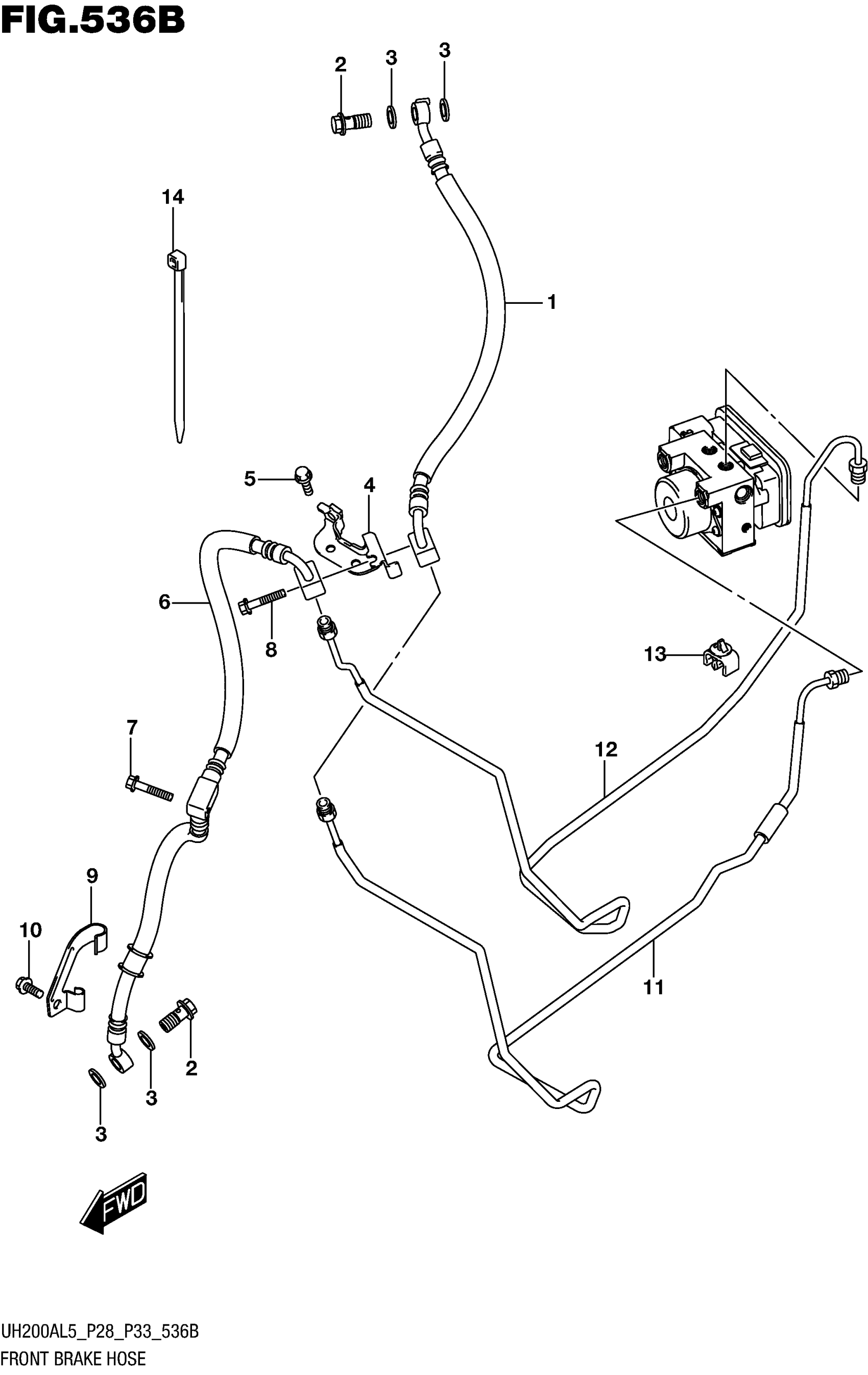

Suzuki UH200AL5 (2015) FRONT BRAKE HOSE (UH200AL5 P33) Diagram

#

Description
Price

1

HOSE, FRONT BRAKE NO.1

59240-12J00

Unavailable

2

UNION

09360-10062

$5.81

3

WASHER (10.2X15X1.4)

09168-10033

$2.86

4

CLAMP, FR BRAKE HOSE

59270-12J00

Unavailable

5

BOLT

01547-0612A

$2.01

6

HOSE, FRONT BRAKE NO.2

59440-12J00

Unavailable

7

BOLT

01547-0625A

$2.01

8

BOLT

01547-0630A

$2.31

9

CLAMP,FRONT BRAKE HOSE

59245-12J00

Unavailable

10

BOLT

01547-0612A

$2.01

11

PIPE, FR BRAKE NO.1

59250-12J10

Unavailable

12

PIPE, FR BRAKE NO.2

59260-12J10

Unavailable

13

CLAMP

09403-07334

Unavailable

14

CLAMP

09407-14407

$2.80
