2015 Suzuki UH200AL5 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2015 Suzuki UH200AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

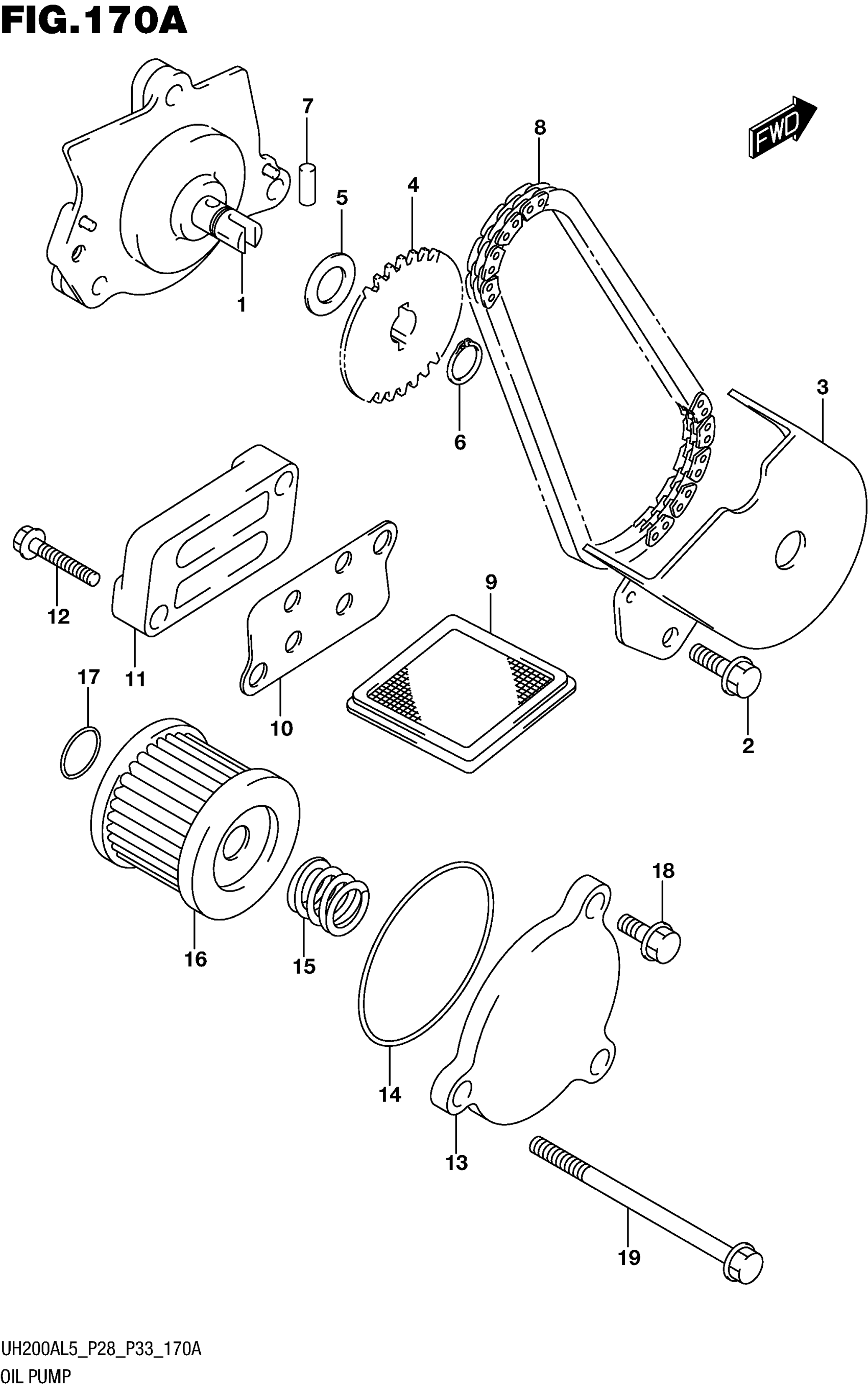

2015 Suzuki UH200AL5 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,OIL

16400-49F00

1
Out of stock

2

BOLT

01547-0625A

3
Out of stock

3

COVER,OIL PUMP

16422-03H10

1
Out of stock

4

SPROCKET, OIL PUMP DRIVEN (NT:25)

16331-49F00

1
Out of stock

5

SHIM (10X18X0.5)

09181-10158

1
Out of stock

6

CIRCLIP

08331-31109

1
Out of stock

7

PIN (4X15.8)

09261-04009

1
Out of stock

8

CHAIN ASSY, OIL PUMP DRIVE (82RH2005-56M)

16310-14F00

1
Out of stock

9

STRAINER,ENGINE OIL This part replaces 16520-09402.

16520-09403

1
Out of stock

10

GASKET, OIL STRAINER CAP

16524-46G00

1
Out of stock

11

CAP, OIL STRAINER

16523-20E00

1
Out of stock

12

BOLT

01547-0625A

2
Out of stock

13

CAP,OIL FILTER

16512-20G00

—
Out of stock

14

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

15

SPRING

09440-18002

1
Out of stock

16

FILTER ASSY,ENG OIL

16510-45H10

1
Out of stock

17

O RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock

18

BOLT

01547-0616A

1
Out of stock

19

BOLT

01547-0665A

2
Out of stock
