2015 Suzuki UH200AL5 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2015 Suzuki UH200AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

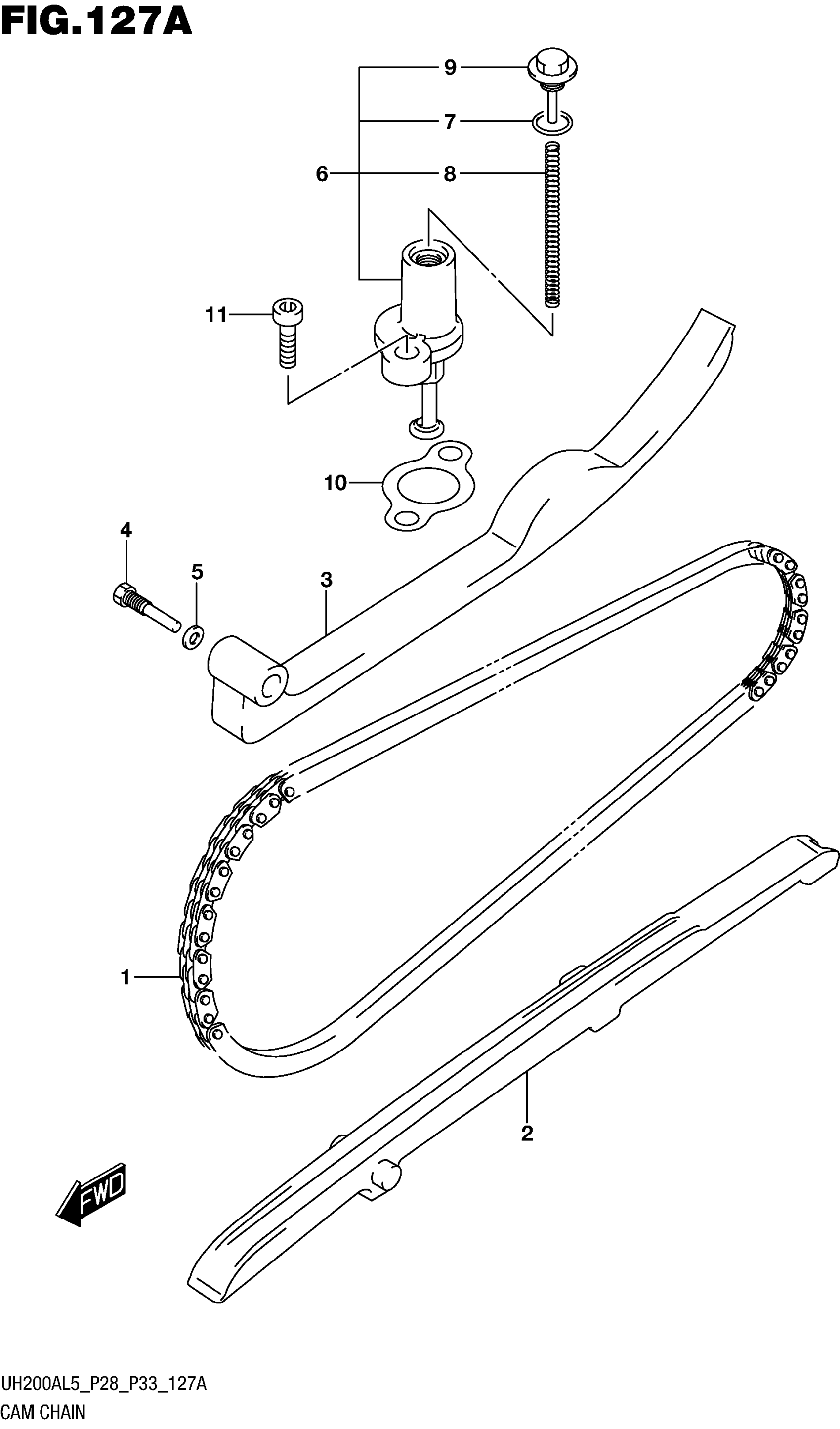

2015 Suzuki UH200AL5 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAMSHAFT DRIVE

12760-04B00

1
Out of stock

2

GUIDE,CAM CHAIN

12771-21F10

1
Out of stock

3

TENSIONER,CAM CHAIN

12811-21F10

1
Out of stock

4

BOLT, CAM CHAIN TENSIONER

12812-32400

1
Out of stock

5

GASKET (8.2X14X1)

09168-08016

1
Out of stock

6

ADJUSTER ASSY,TENSIONER

12830-02A00

1
Out of stock

6

ADJUSTER ASSY,TENSIONER

12830-02A10

1
Out of stock

7

O RING

12832-02A00

1
Out of stock

7

O RING

12832-02A10

—
Out of stock

8

SPRING

12833-02A00

1
Out of stock

8

SPRING

12833-02A10

—
Out of stock

9

PLUG, ADJUSTER

12834-02A00

1
Out of stock

9

PLUG, ADJUSTER

12834-02A10

—
Out of stock

10

GASKET, TENSIONER ADJUSTER

12837-16H00

1
Out of stock

11

BOLT

07130-0620A

2
Out of stock
