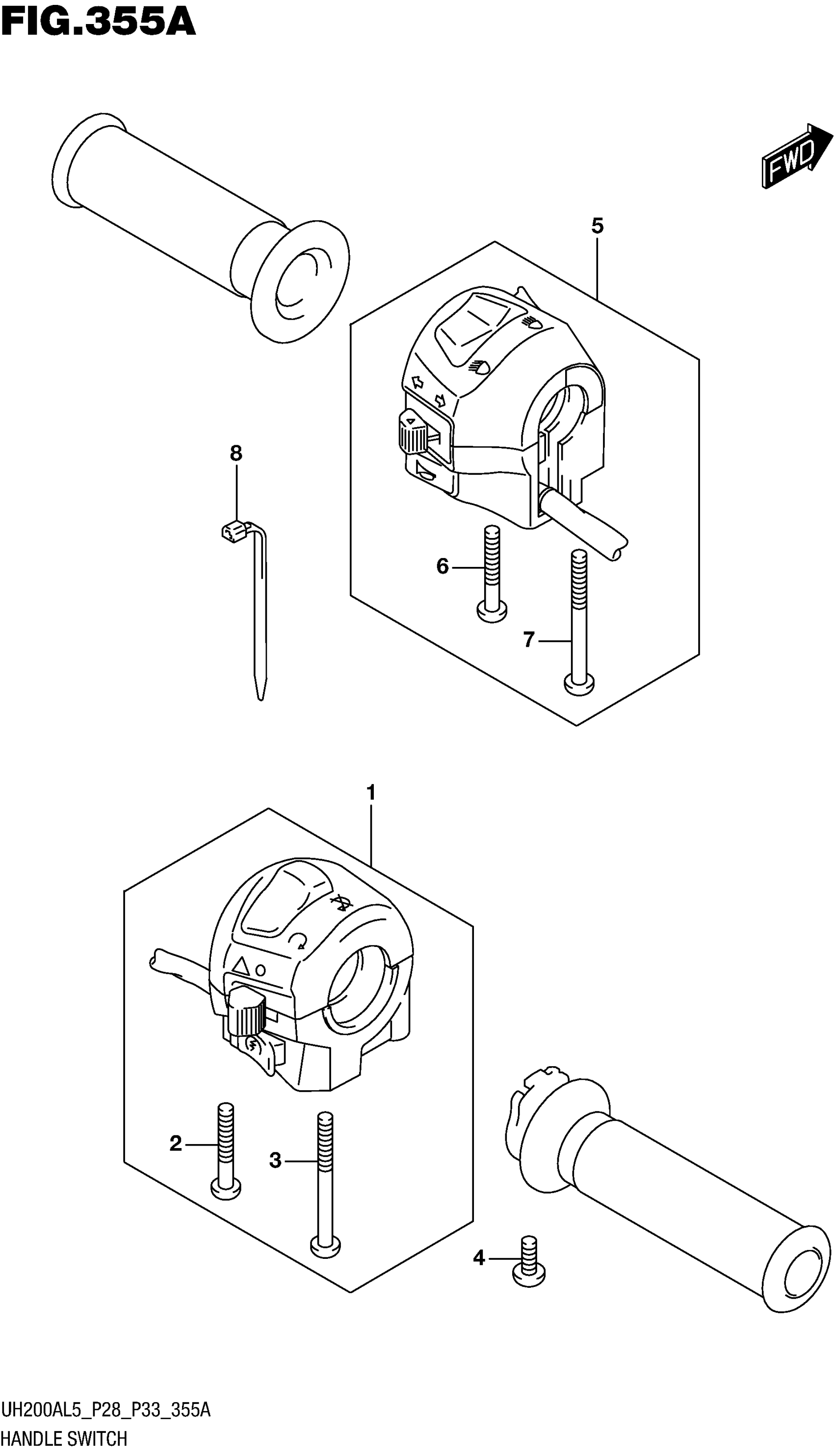

Suzuki UH200AL5 (2015) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HAN This part replaces 37200-12J00.

37200-12J01

$71.53

2

SCREW

02112-0530B

$1.49

3

SCREW

02112-0545B

$2.26

4

SCREW

02112-0510A

$1.49

5

SWITCH ASSY,HANDLE LH

37400-12J00

$104.93

6

SCREW

02112-0520B

$1.84

7

SCREW

02112-0540B

$2.70

8

CLAMP (L:95)

09407-11401

$2.63
