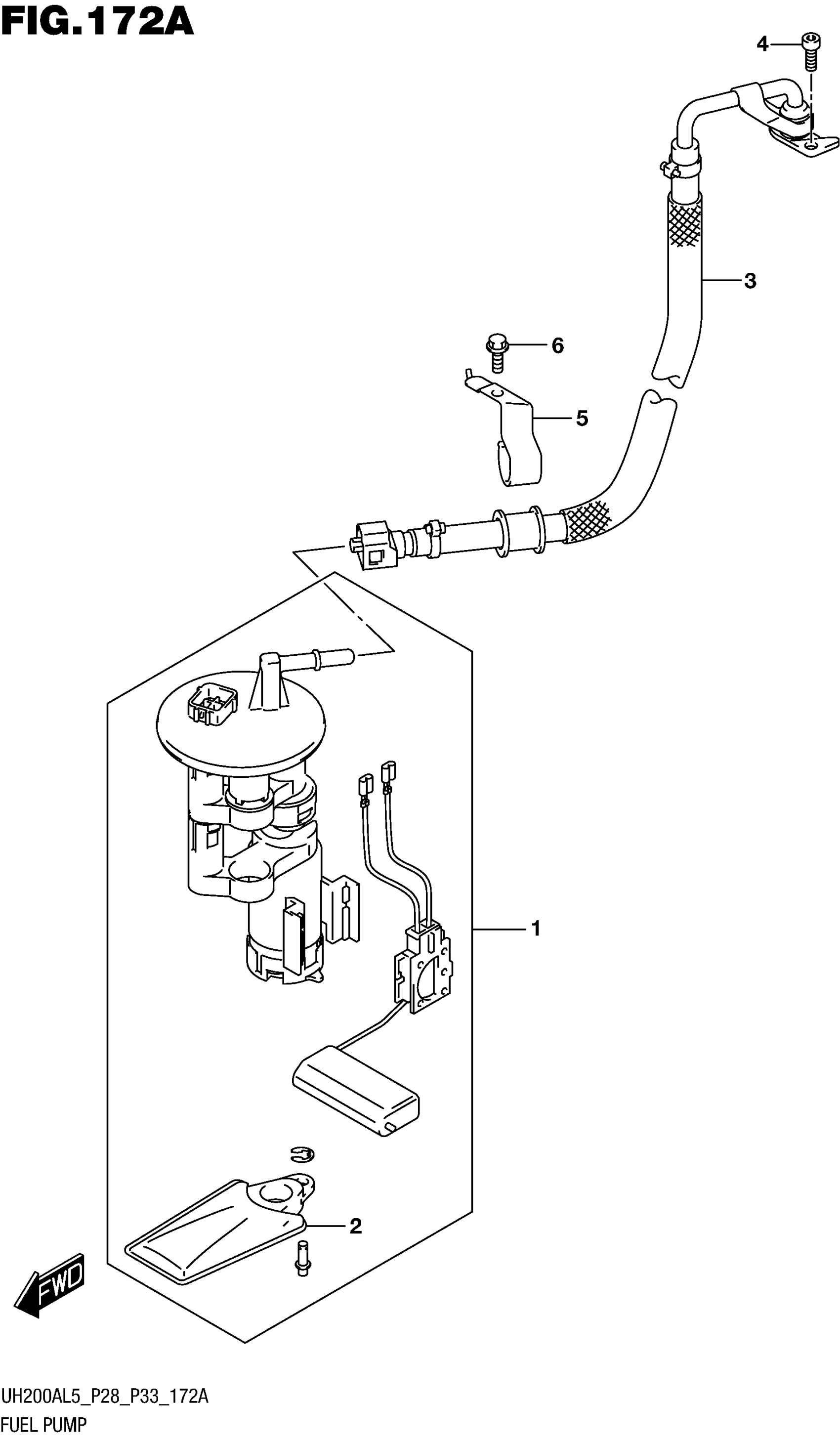

Suzuki UH200AL5 (2015) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY,FUEL This part replaces 15100-03H20.

15100-03H21

$359.83

2

FILTER ASSY

15420-03H00

$53.93

3

HOSE, FUEL

15810-12J20

$109.23

4

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

5

CLAMP,FUEL HOSE

15890-12J00

Unavailable

6

BOLT

01550-0612A

$1.97
