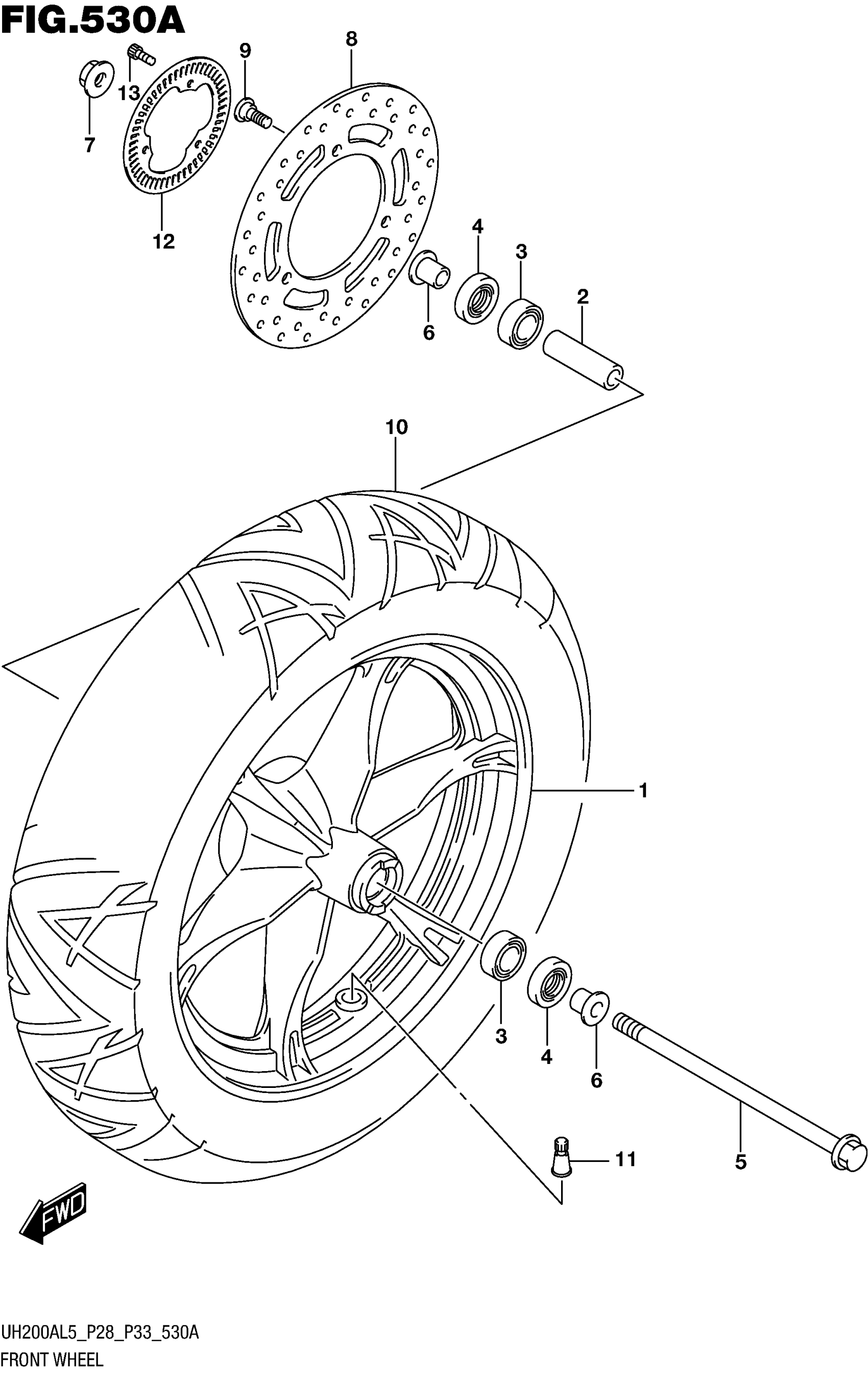

Suzuki UH200AL5 (2015) FRONT WHEEL (UH200AL5 P28) Diagram

WHEEL, FRONT (13M/CXMT2.50) (SILVER)

54111-12J00-YD8

Unavailable

WHEEL, FRONT (13M/CXMT2.50) (SILVER) | ENKEI

54111-12J20-QBF

Unavailable

SPACER,FR HUB BEARING

54731-03H10

$7.60

BEARING

08133-62017

$18.47

SEAL,OIL (18X32X7)

09285-18002

$5.39

SPACER,FR HUB BEARING

54711-12J00

Unavailable

SPACER,FRONT AXLE RH

54741-03H00

Unavailable

NUT

08319-3112A

$3.76

DISC, FRONT BRAKE

59211-12J10

Unavailable

BOLT (8X21)

59218-09G10

$5.80

TIRE,FRONT This part replaces 55110-03H21.

55110-03H22

$158.27

VALVE ASSY,WHEEL RIM (TR412)

43130-24A60

$7.93

RING, SPEED SENSOR FR

54162-44H00

$23.73

BOLT

07130-0512A

$2.19
