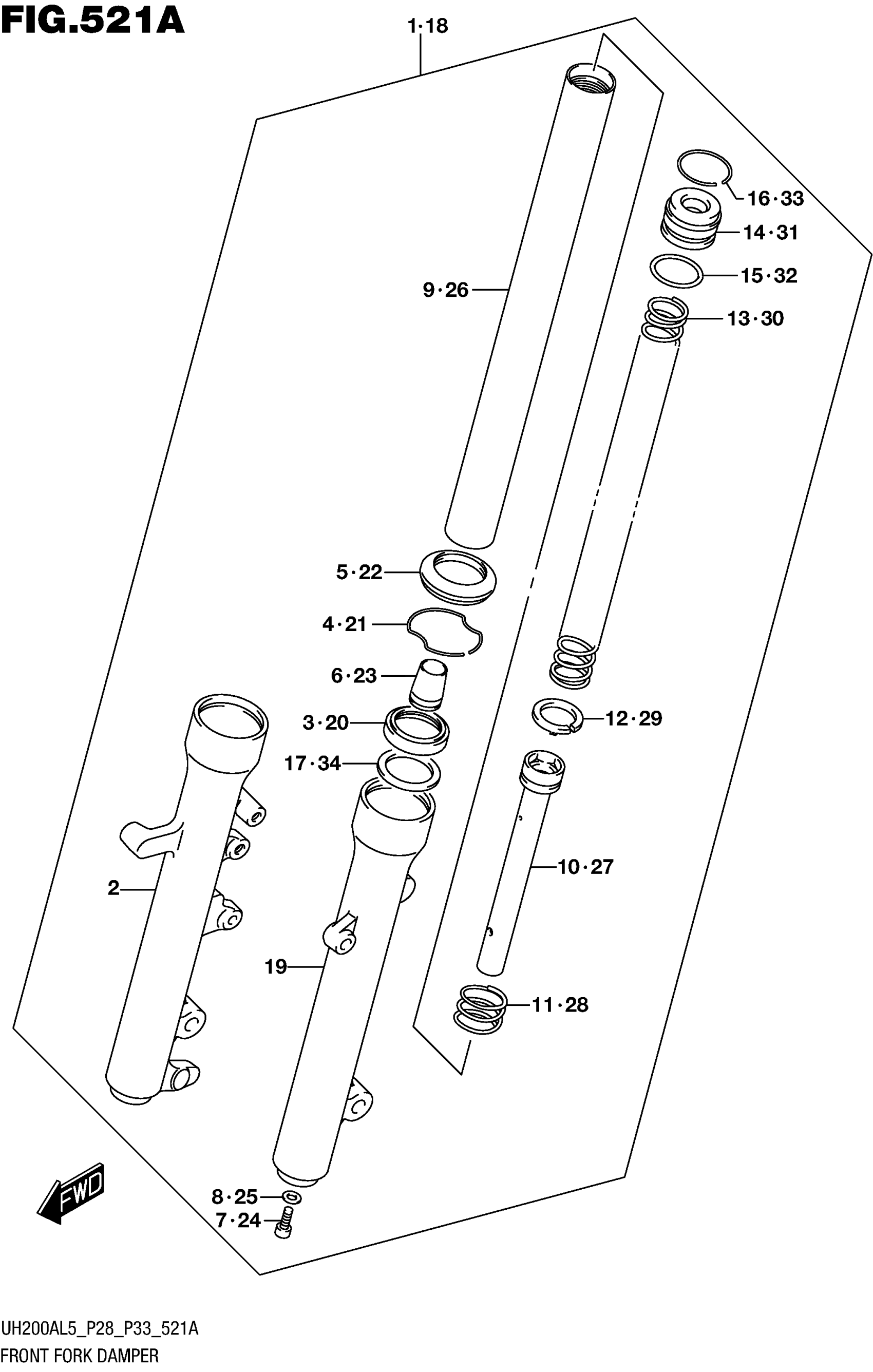

Suzuki UH200AL5 (2015) FRONT FORK DAMPER (UH200AL5 P28) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-12J50

$416.58

2

TUBE, OUTER RH

51131-12J50

$218.43

3

OIL SEAL

51153-26B00

$19.55

4

RING, STOPPER

51156-20H00

$4.87

5

SEAL, DUST

51571-26B00

$33.15

6

PIECE, OIL LOCK

51195-12J40

Unavailable

7

BOLT

51147-48130

$4.34

8

O RING This part replaces 51148-31030.

51148-36011

$3.56

9

TUBE, INNER

51110-12J40

Unavailable

10

PIPE SEAT

51194-12J40

Unavailable

11

SPRING, REBOUND

51177-15500

Unavailable

12

RING, PISTON

51196-20H00

Unavailable

13

SPRING, FRONT

51171-12J40

Unavailable

14

CAP

51175-12J40

Unavailable

15

O RING

51117-20H00

Unavailable

16

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

17

SEAL, SPACER

51168-02B00

Unavailable

18

DAMPER ASSY,FRONT FORK LH

51104-12J40

$416.58

19

TUBE, OUTER LH

51141-12J40

Unavailable

20

OIL SEAL

51153-26B00

$19.55

21

RING, OIL SEAL STOPPER This part replaces 51156-33130.

51156-02B00

$5.36

22

SEAL, DUST

51571-26B00

$33.15

23

PIECE, OIL LOCK

51195-12J40

Unavailable

24

BOLT

51147-48130

$4.34

25

O RING This part replaces 51148-31030.

51148-36011

$3.56

26

TUBE, INNER

51110-12J40

Unavailable

27

CYLINDER

51194-12J40

Unavailable

28

SPRING, REBOUND

51177-15500

Unavailable

29

RING, PISTON

51196-20H00

Unavailable

30

SPRING, FRONT

51171-12J40

Unavailable

31

CAP

51175-12J40

Unavailable

32

O RING

51117-20H00

Unavailable

33

RING, SNAP

51156-20H00

$4.87

34

SEAL, SPACER

51168-02B00

Unavailable
