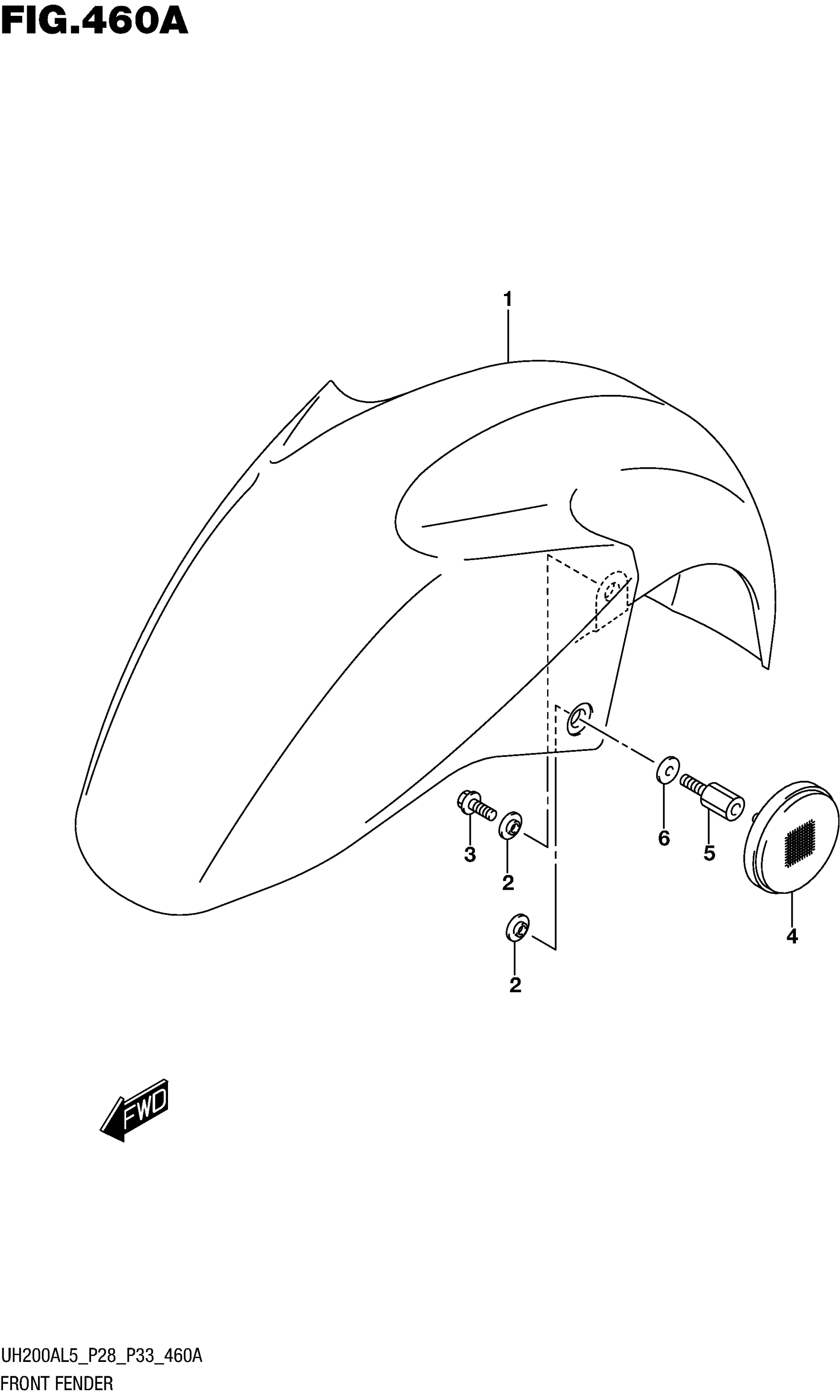

Suzuki UH200AL5 (2015) FRONT FENDER (UH200AL5 P28) Diagram

#

Description
Price

1

FENDER, FRONT (GRAY)

53111-12JB0-PGZ

Unavailable

1

FENDER, FRONT (BLACK)

53111-12JB0-YNR

Unavailable

1

FENDER, FRONT (WHITE)

53111-12JB0-YUH

Unavailable

1

FENDER, FRONT (SILVER)

53111-12JB0-YUS

Unavailable

2

WASHER This part replaces 09169-06045.

09169-06055

$2.27

3

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

4

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

5

BOLT (6X18)

09119-06119

$4.03

6

WASHER (6.5X18X1.0)

09160-06028

$1.49
