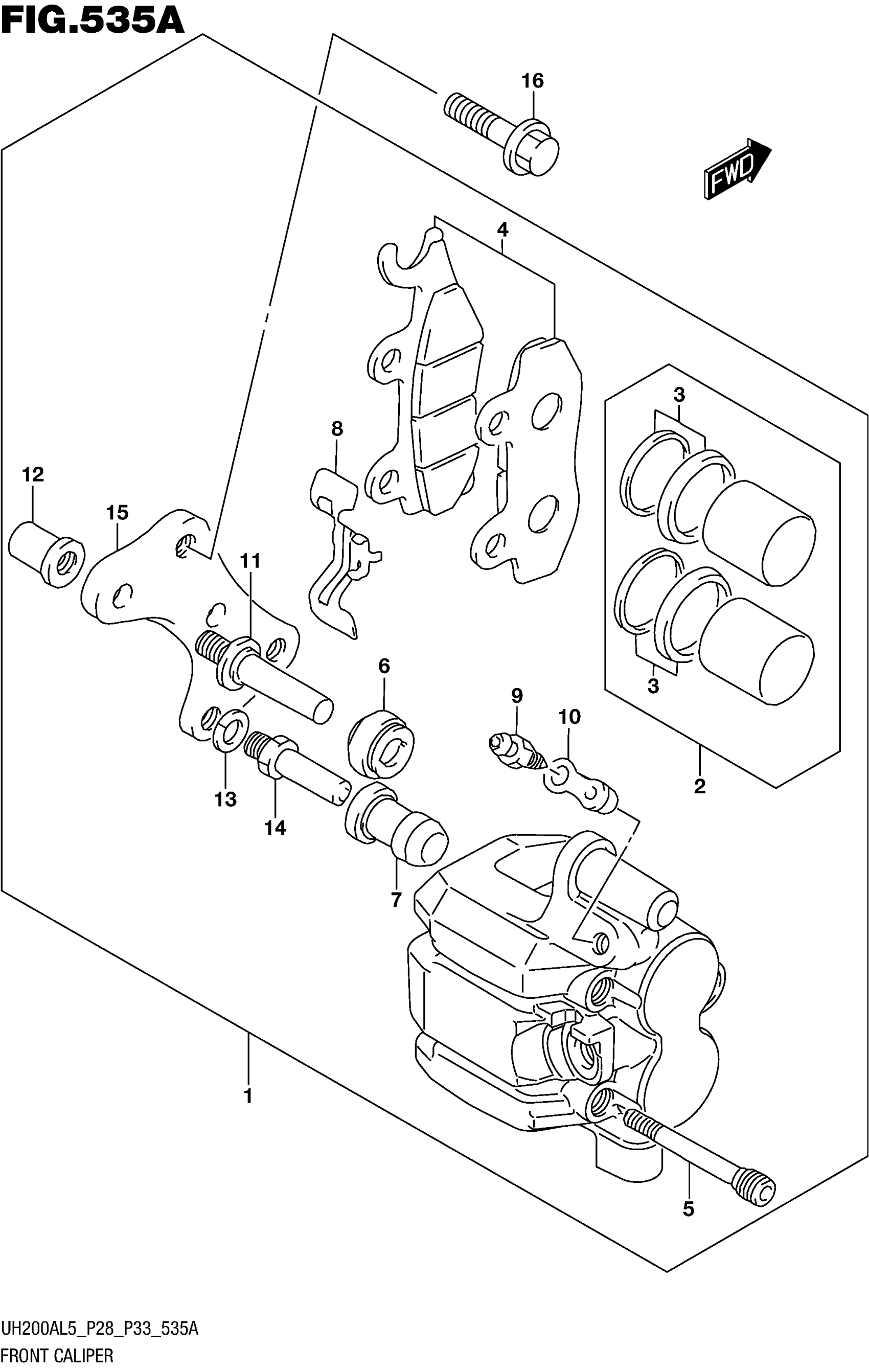

Suzuki UH200AL5 (2015) FRONT CALIPER Diagram

#

Description
Price

1

CALIPERS ASSY, FRONT

59100-21D51

$154.80

2

PISTON SET

69100-21860

$43.90

3

SEAL SET, PISTON

59300-21860

$20.15

4

PAD SET

59100-21890

$49.08

5

PIN

59345-14600

$16.25

6

BOOT

59303-14500

$5.52

7

BOOT

59386-13A00

$7.95

8

SPRING

69115-31D10

$16.48

9

BLEEDER

59121-01A00

$8.73

10

CAP, BLEEDER

59122-46H00

$4.43

11

PIN

59387-12J00

Unavailable

12

NUT

59388-00B20

$15.16

13

WASHER

59314-13A00

$2.02

14

BOLT

59382-13A00

$7.69

15

BRACKET

59351-21D00

Unavailable

16

BOLT,CALIPER

59199-12J00

$2.45
